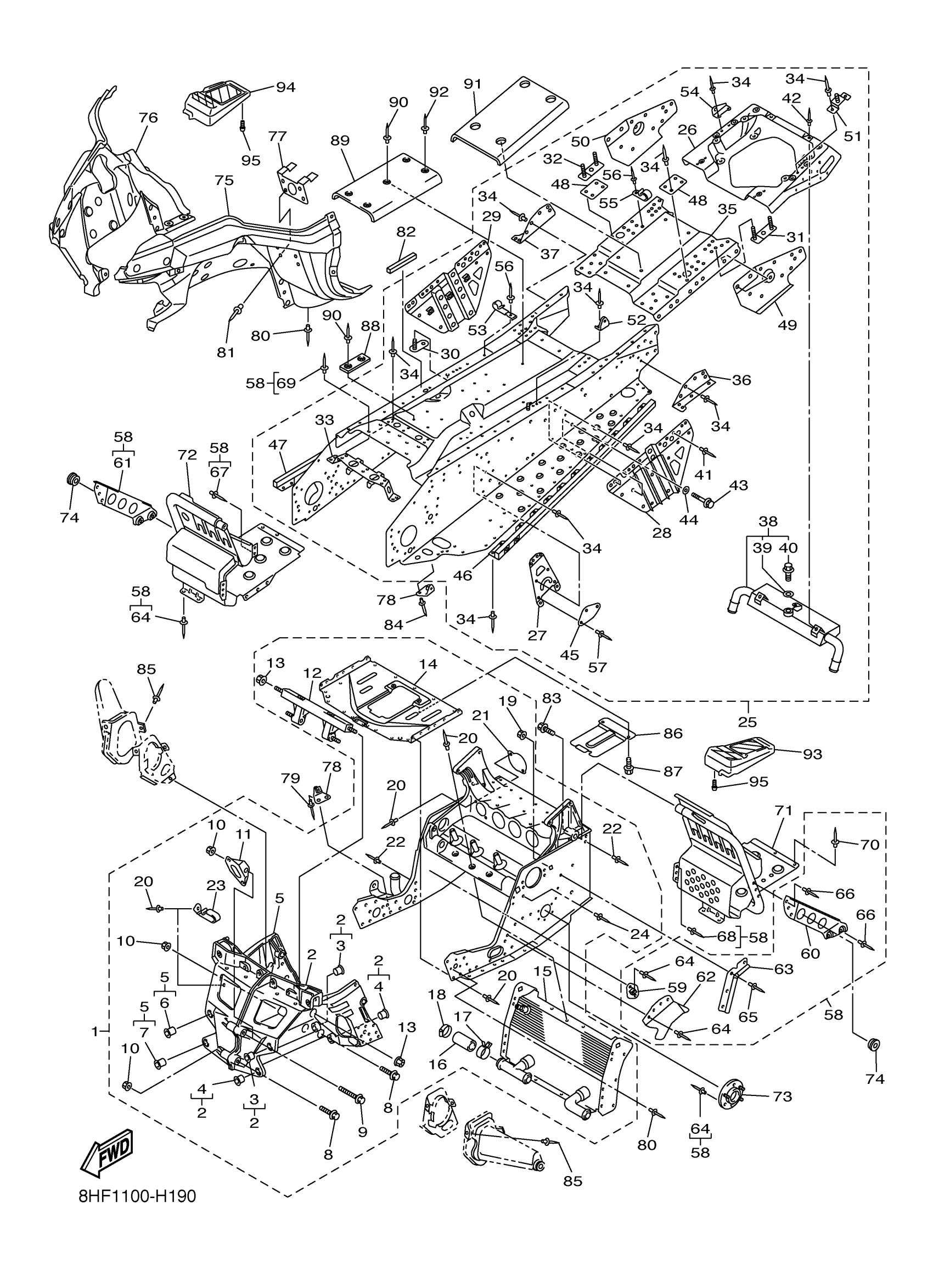

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8HF-21940-01-00

$1,886.99

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

PROTECTOR

8FR-2193A-01-00

$93.12

15

HEAT EXCHANGER ASSY

8HF-12440-00-00

$503.75

16

HOSE 7

8FA-12551-00-00

$7.51

17

CLIP (8M6)

90467-28046-00

$12.43

18

HOSE CLAMP ASSY

90450-35001-00

$5.25

19

NUT, SELF-LOCKING

90185-08169-00

$7.09

20

RIVET, BLIND

90267-47195-00

$3.33

21

PLATE, COVER

8ES-2131D-00-00

$4.26

22

RIVET, BLIND

90267-48016-00

$7.85

23

CLAMP(51Y)

90465-08277-00

$9.43

24

RIVET, BLIND

90267-48177-00

$1.71

25

REAR FRAME COMP.

8HF-21950-00-00

$3,091.99

26

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

27

BRACKET, MAIN TRACK 1

8HF-21943-00-00

$16.58

28

BRACKET, RR.TRACK SUSPENTION 1

8HF-21944-00-00

$122.09

29

BRACKET, RR.TRACK SUSPENTION 2

8HF-21954-00-00

$122.09

30

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

31

BRACKET 1

8ET-2194X-00-00

$7.25

32

BRACKET 2

8ET-2195X-00-00

$7.25

33

PROTECTOR, MUFFLER

8ES-2194H-00-00

$58.18

34

RIVET, BLIND

90267-47195-00

$3.33

35

PANEL, SUB FRAME 5

8HF-21916-00-00

$156.55

36

PATCH 3

8ET-21963-00-00

$13.66

37

PATCH 4

8ET-21964-00-00

$13.66

38

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

$274.97

39

WASHER, SEAL (7G5)

90210-06006-00

$5.72

40

BOLT, FLANGE

95817-06016-00

$1.49

41

RIVET, BLIND

90267-47197-00

$1.56

42

RIVET, BLIND(3JB)

90267-48095-00

$2.00

43

BOLT, FLANGE

95814-10020-00

$3.78

44

WASHER, PLATE

90201-10064-00

$3.60

45

BRACKET, MAIN TRACK 2

8ET-21953-00-00

$7.28

46

REINFORCEMENT, FOOTREST 1

8ET-21926-00-00

$160.77

47

REINFORCEMENT, FOOTREST 2

8ET-21936-00-00

$160.77

48

BRACKET 3

8HF-2196F-00-00

$7.80

49

PATCH 9

8ET-21989-00-00

$23.86

50

PATCH 10

8ET-21997-00-00

$23.86

51

BRACKET 4

8ET-2196G-00-00

$7.31

52

BRACKET 1

8HF-2194X-00-00

$8.37

53

CLAMP

90462-08081-00

$6.17

54

BRACKET 4

8HF-2196G-00-00

$10.88

55

CLAMP

90462-06022-00

$4.11

56

RIVET, BLIND

90267-48023-00

$8.18

57

RIVET, BLIND

90267-48016-00

$7.85

58

FRAME CONNECTION KIT

8HF-W2195-00-00

$182.08

59

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

60

BRACKET, 5

8FP-2196M-01-00

$25.69

61

BRACKET, 6

8FP-2197M-01-00

$25.69

62

COVER 2

8FP-2198G-01-00

$20.57

63

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

64

RIVET, BLIND

90267-47195-00

$3.33

65

RIVET, BLIND

90267-48018-00

$7.35

66

RIVET, BLIND

90267-48177-00

$1.71

67

RIVET, BLIND(8CR)

90267-47186-00

$2.31

68

RIVET, BLIND

90267-47197-00

$1.56

69

RIVET, BLIND(8CR)

90267-47186-00

$2.31

70

RIVET, BLIND

90267-48023-00

$8.18

71

FOOTREST COMP. 1

8HF-21960-00-00

$216.29

72

FOOTREST COMP. 2

8GM-21970-00-00

$196.78

73

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

74

GROMMET(4FU)

90480-13567-00

$3.88

75

FRAME UNDER 1

8GM-2196A-01-00

$191.77

76

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

77

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

78

BRACKET 3

8FA-2196F-00-00

$5.58

79

RIVET, BLIND (22W)

90267-48083-00

$2.78

80

RIVET, BLIND

90267-48018-00

$7.35

81

RIVET, BLIND

90267-47200-00

$2.28

82

DAMPER

8HF-84553-00-00

$4.08

83

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

84

RIVET, BLIND(3JB)

90267-48095-00

$2.00

85

RIVET, BLIND

90267-47195-00

$3.33

86

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

87

BOLT, BUTTON HEAD

92012-06012-00

$2.49

88

SPACER

8FA-21998-00-00

$3.60

89

SHIELD, HEAT

8FG-23892-00-00

$43.78

90

RIVET, BLIND (8L0)

90267-48059-00

$2.46

91

SHIELD, HEAT

8ET-23892-00-00

$48.08

92

RIVET, BLIND

90267-47004-00

$1.78

93

FOOTREST, REAR 1

8DM-27431-03-00

$30.91

94

FOOTREST, REAR 2

8DM-27441-03-00

$34.34

95

SCREW, TAPPING(4TV)

90167-05078-00

$5.12
