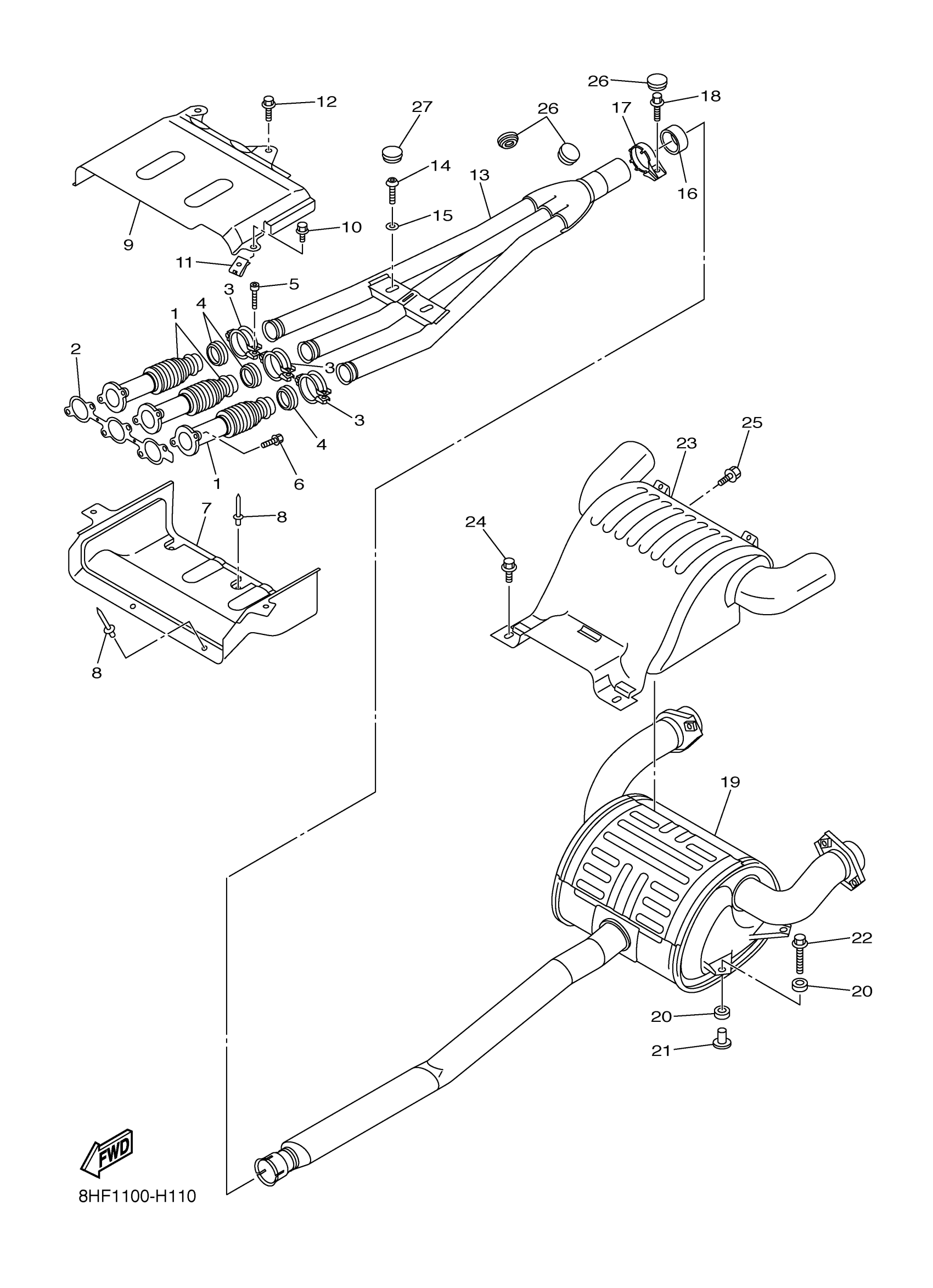

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 EXHAUST Diagram
#
Description
Price
1
JOINT, EXHAUST 1
8GL-14615-00-00
$180.99
2
GASKET, EXHAUST PIPE
8GL-14613-00-00
$23.99
3
BAND, MUFFLER
8FA-14715-00-00
$37.99
4
GASKET, EXHAUST PIPE
99999-03989-00
$31.99
5
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
$5.60
6
BOLT, FLANGE
95022-08020-00
$8.49
7
COVER, EXHAUST
8ES-14627-00-00
Unavailable
8
RIVET, BLIND
90267-47195-00
$3.88
9
EXHAUST COVER ASS'Y
8ES-14637-00-00
Unavailable
10
BOLT, FLANGE
95812-06008-00
$7.49
11
NUT, SPRING
90183-060A0-00
Unavailable
12
BOLT, FLANGE
95817-06016-00
$2.75
13
EXHAUST PIPE ASSY 1
8JA-14610-00-00
Unavailable
14
BOLT, BUTTON HEAD
92012-08025-00
$7.49
15
WASHER, PLAIN
92990-08200-00
Unavailable
16
GASKET, MUFFLER
8FA-14714-10-00
Unavailable
17
BAND, SILENCER
8FA-14788-00-00
Unavailable
18
BOLT, FLANGE
95812-08020-00
Unavailable
19
SILENCER ASSY
8HF-14750-00-00
Unavailable
20
DAMPER, MUFFLER
8FA-14737-00-00
Unavailable
21
COLLAR
90387-08071-00
Unavailable
22
BOLT, WITH WASHER
90119-08112-00
Unavailable
23
PROTECTOR ASSY
8FP-14708-01-00
Unavailable
24
BOLT, WITH WASHER
90119-06179-00
Unavailable
25
BOLT, FLANGE
95812-06008-00
$7.49
26
PLUG
90338-20004-00
Unavailable
27
PLUG
90338-20007-00
Unavailable
