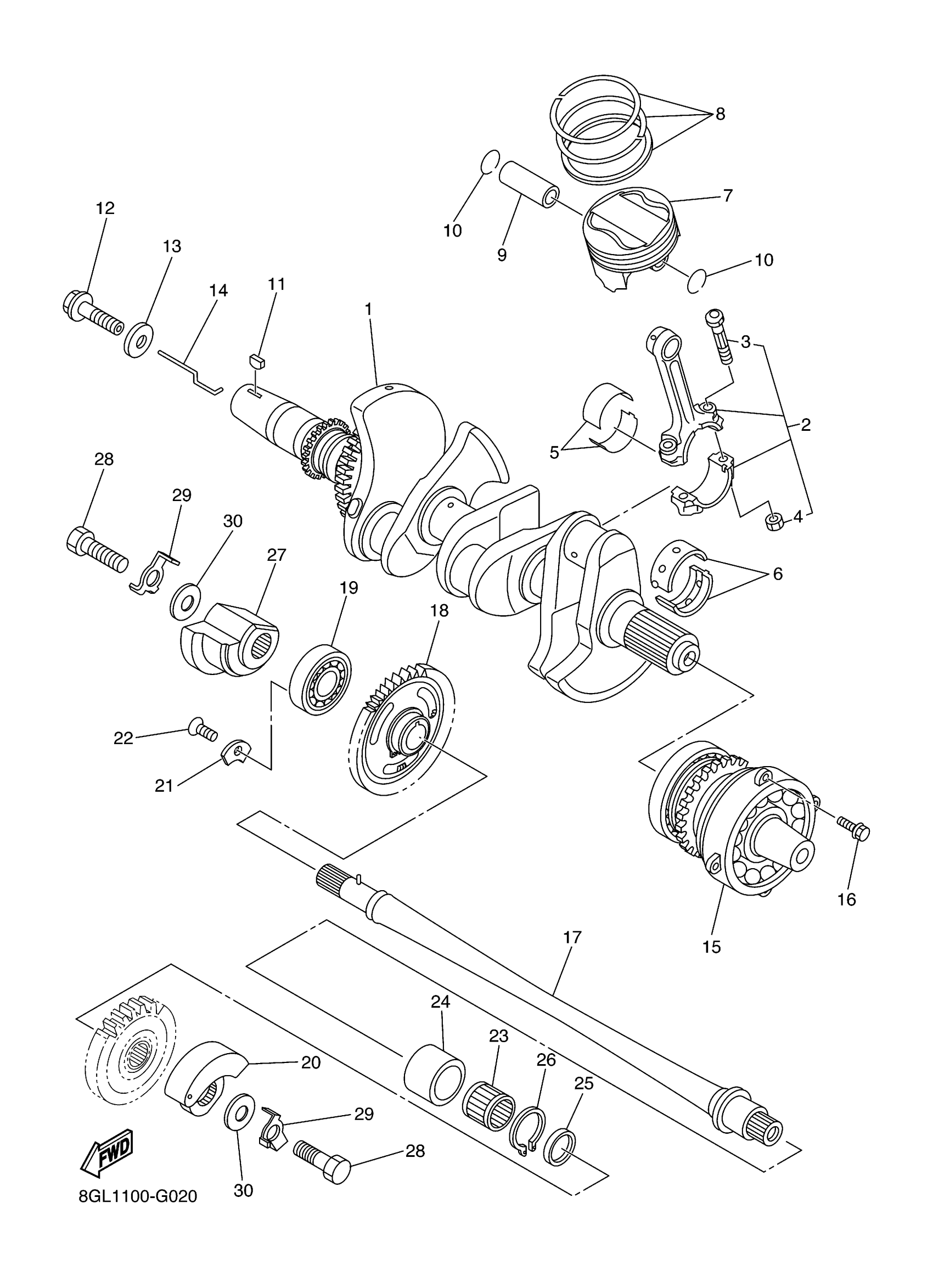

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

8GL-11400-00-00

$1,302.99

2

CONNECTING ROD ASSY

8GL-11650-00-00

$203.45

3

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.31

4

NUT (11H)

90179-08327-00

$6.98

5

PLANE BEARING, CONNECTING ROD

5JW-11656-00-00

$11.47

5

PLANE BEARING, CONNECTING ROD

5JW-11656-10-00

$11.47

5

PLANE BEARING, CONNECTING ROD

5JW-11656-20-00

$11.40

5

PLANE BEARING, CONNECTING ROD

5JW-11656-30-00

$12.27

5

PLANE BEARING, CONNECTING ROD

5JW-11656-40-00

$11.47

5

PLANE BEARING, CONNECTING ROD

5JW-11656-A0-00

$10.17

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-10-00

$22.09

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-20-00

$22.20

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-30-00

$22.66

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-40-00

$23.71

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-50-00

$23.72

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-60-00

$24.14

6

PLANE BEARING, CRANKSHAFT 1

3LD-11416-70-00

$24.28

7

PISTON (STD)

8GL-11631-00-00

$207.74

8

PISTON RING SET (STD)

8GL-11603-00-00

$55.88

9

PIN, PISTON

8GL-11633-01-00

$25.29

10

CIRCLIP (26H)

93450-19095-00

$2.04

11

KEY WOODRUFF 146115450000

90280-03017-00

$5.78

12

BOLT, FLANGE

90105-12032-00

$33.29

13

WASHER (838)

90201-12191-00

$6.11

14

SHAFT 1

59J-11455-00-00

$10.72

15

SHAFT ASSY

8GL-11406-01-00

$787.66

16

BOLT, FLANGE

95817-06020-00

$2.69

17

SHAFT ASSY., 2

2HC-11407-00-00

$277.48

18

BALANCER WEIGHT GE

2HC-11530-00-00

$229.31

19

BEARING

93306-30323-00

$38.51

20

WEIGHT 1

8ES-11454-00-00

$79.08

21

PLATE, BEARING COVER

4JT-15381-01-00

$10.54

22

SCREW, COUNTERSUNK

90151-06023-00

$6.52

23

BEARING

93310-42239-00

$62.56

24

BEARING 1

8ES-11428-01-00

$41.75

25

COLLAR

8ES-11478-00-00

$10.95

26

CIRCLIP

93450-32152-00

$6.68

27

WEIGHT 2

8ES-11464-00-00

$76.51

28

BOLT(6TD)

97017-10025-00

$6.82

29

WASHER, LOCK

90215-10003-00

$6.86

30

WASHER, PLATE (3L6)

90201-10774-00

$6.25
