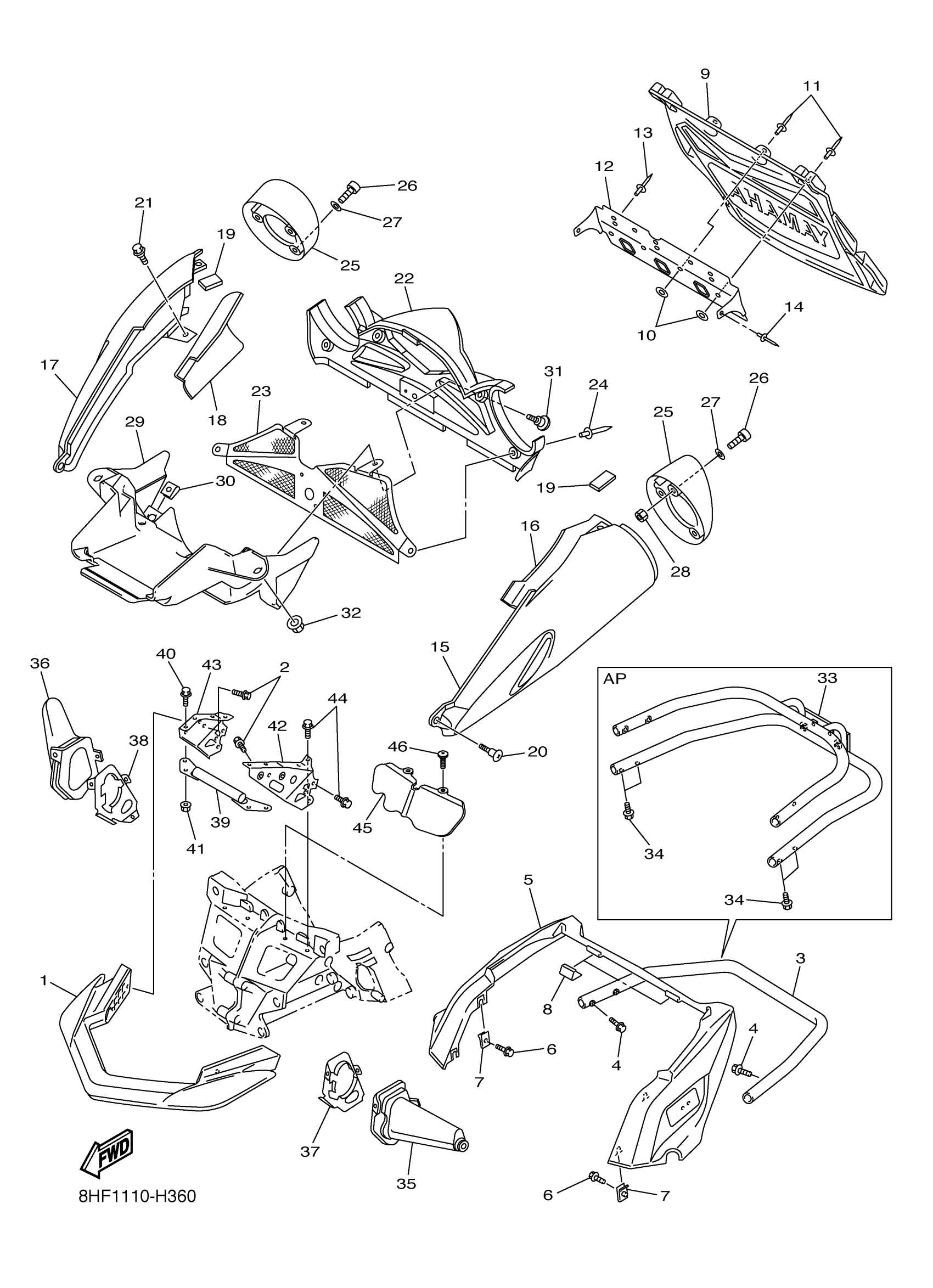

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$237.55

2

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

3

BUMPER, REAR 1

8FP-77541-01-00

Unavailable

4

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

5

BUMPER, REAR 2

8FA-77542-00-00

$98.49

6

BOLT, FLANGE

95817-06016-00

$1.49

7

NUT, SPRING(4ES)

90183-06069-00

$5.93

8

TAPE 4

8FA-7717H-00-00

$0.96

9

FLAP

8GW-77595-00-00

Unavailable

10

WASHER, PLATE

90201-04027-00

$1.88

11

RIVET, BLIND

90267-47200-00

$2.28

12

STOPPER, FLAP

8GW-77596-01-00

$58.17

13

RIVET, BLIND(3JB)

90267-48095-00

$2.00

14

RIVET, BLIND

90267-47195-00

$3.33

15

PROTECTOR 1

8FP-77551-01-P0

$129.03

16

LINING, SHROUD 1

8FP-77261-00-00

Unavailable

17

PROTECTOR 2

8FP-77552-01-P0

$122.09

18

LINING, SHROUD 2

8FP-77262-00-00

$23.00

19

LINING, SHROUD 3

8FP-77263-00-00

Unavailable

20

SCREW, BINDING

90154-06009-00

$2.92

21

BOLT

90109-06220-00

$7.43

22

COVER, TAILLIGHT

8FP-84516-01-00

$82.49

23

LOUVER 1

8FP-77441-00-00

$117.00

24

RIVET, BLIND(8CH)

90267-47187-00

$1.84

25

CAP

8FP-77517-00-00

$143.17

26

BOLT,SOCKET HEAD

91314-06020-00

$2.05

27

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

28

NUT, HEXAGON

95380-06600-00

$4.13

29

BRACKET, TAILLIGHT

8FP-2117E-01-00

$17.05

30

NUT, SPRING(4ES)

90183-06069-00

$5.93

31

BOLT

90109-06220-00

$7.43

32

NUT, U FLANGE

95604-06200-00

$2.35

33

BUMPER, REAR 1

8ET-77541-01-00

$274.48

34

BOLT, FLANGE

95814-08016-00

$6.68

35

COVER 1

8FU-2198F-01-00

$27.20

36

COVER 3

8FU-2198J-01-00

$27.20

37

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

38

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

39

BRKT. ,FR. FOOD

8FP-21979-00-00

$86.18

40

BOLT, FLANGE

95817-06014-00

$2.15

41

NUT, FLANGE

95702-06500-00

$1.98

42

BRACKET, FRONT

8FA-21949-00-00

$59.08

43

BRACKET, FRONT BUMPER

8FA-21959-00-00

$51.74

44

BOLT, FLANGE

95814-08016-00

$6.68

45

COVER, FRONT

8FP-22865-00-00

$29.00

46

BOLT

90109-06261-00

$1.88
