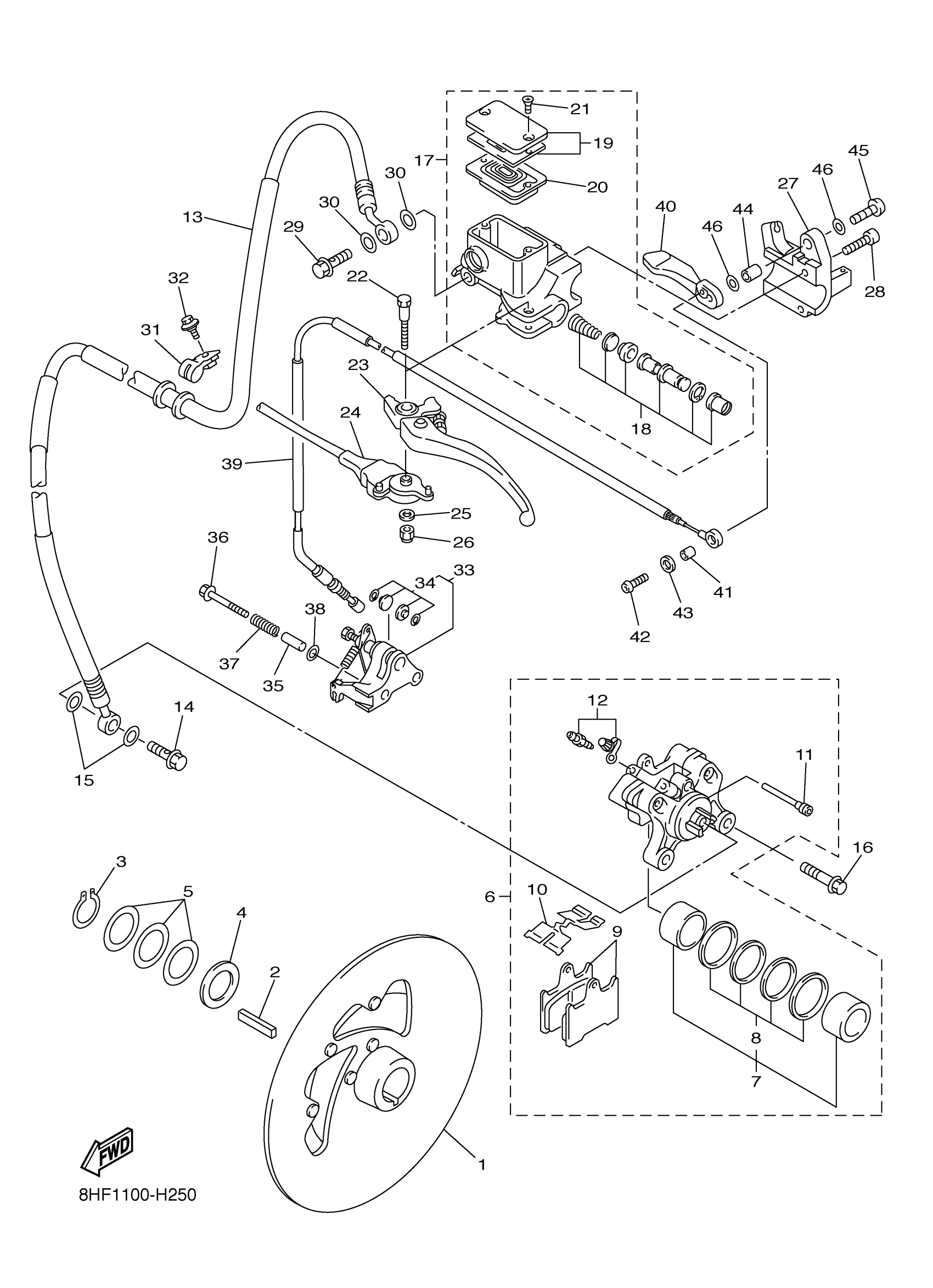

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 BRAKE Diagram

#

Description
Price

1

DISC BRAKE ASSY

8FA-2581T-00-00

$226.77

2

KEY, SLIDING(88K)

90281-07004-00

$11.12

3

CIRCLIP

99009-24400-00

$7.49

4

WASHER, PLATE (888)

90201-25527-00

$7.60

5

WASHER, PLATE (8R6)

90201-252F1-00

$6.92

6

CALIPER ASSY (LEFT)

8FA-2580T-01-00

$465.69

7

PISTON ASSY, CALIPER

8CR-W0057-00-00

$64.74

8

CALIPER SEAL KIT

8CR-W0047-00-00

$18.65

9

BRAKE PAD KIT 2

8FA-W0046-01-00

$65.98

10

SUPPORT, PAD

8DJ-25919-00-00

$13.57

11

PIN, PAD

8CR-25924-00-00

$11.26

12

BLEED SCREW KIT

8CR-W0048-00-00

$9.71

13

HOSE, BRAKE 1

8HF-25872-00-00

$73.86

14

BOLT, UNION

90401-10015-00

$9.89

15

WASHER, PLATE(481)

90201-10118-00

$2.91

16

BOLT, WASHER BASED(1AR)

90105-10634-00

$6.41

17

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

$255.42

18

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

19

RESERVOIR CAP SET

8CR-W2585-00-00

$35.75

20

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

21

SCREW, FLAT

98707-04012-00

$1.43

22

BOLT, LEVER

8CR-2589F-00-00

$6.06

23

LEVER 1

8CR-83912-00-00

$39.83

23

LEVER 1

8DN-83912-00-00

$51.94

24

STOP SWITCH ASSY

8CR-82530-01-00

$37.85

25

WASHER, PLAIN

8CR-8398X-00-00

$8.77

26

NUT, NYLON

95707-05300-00

$2.74

27

BRACKET, MASTER CYLINDER

8FA-25867-00-00

$28.51

28

BOLT,SOCKET

91317-06025-00

$2.05

29

BOLT, UNION

90401-10015-00

$9.89

30

WASHER, PLATE(481)

90201-10118-00

$2.91

31

HOLDER, BRAKE HOSE

8FA-25886-00-00

$7.80

32

BOLT

90109-06257-00

$5.88

33

PARKING BRAKE COMP.

8FA-25970-01-00

$192.88

34

PARKING BRAKE PAD KIT

8FA-W0045-00-00

$48.30

35

COLLAR

90387-06058-00

$5.89

36

BOLT

90111-06042-00

$2.00

37

SPRING, COMPRESSION

90501-120A0-00

$6.32

38

WASHER 6474553400

90201-12161-00

$4.67

39

CABLE, BRAKE

8HF-26351-00-00

$49.46

40

LEVER 2

8FA-83922-00-00

$29.97

41

COLLAR

90387-06043-00

$6.68

42

BOLT, BUTTON HEAD

92012-06014-00

$6.18

43

WASHER, PLATE

90201-06089-00

$2.69

44

COLLAR

90387-081M9-00

$1.89

45

BOLT,HEX. SOCKET BUTTON

90111-08054-00

$1.54

46

WASHER PLATE 141181390000

90201-08085-00

$6.38
