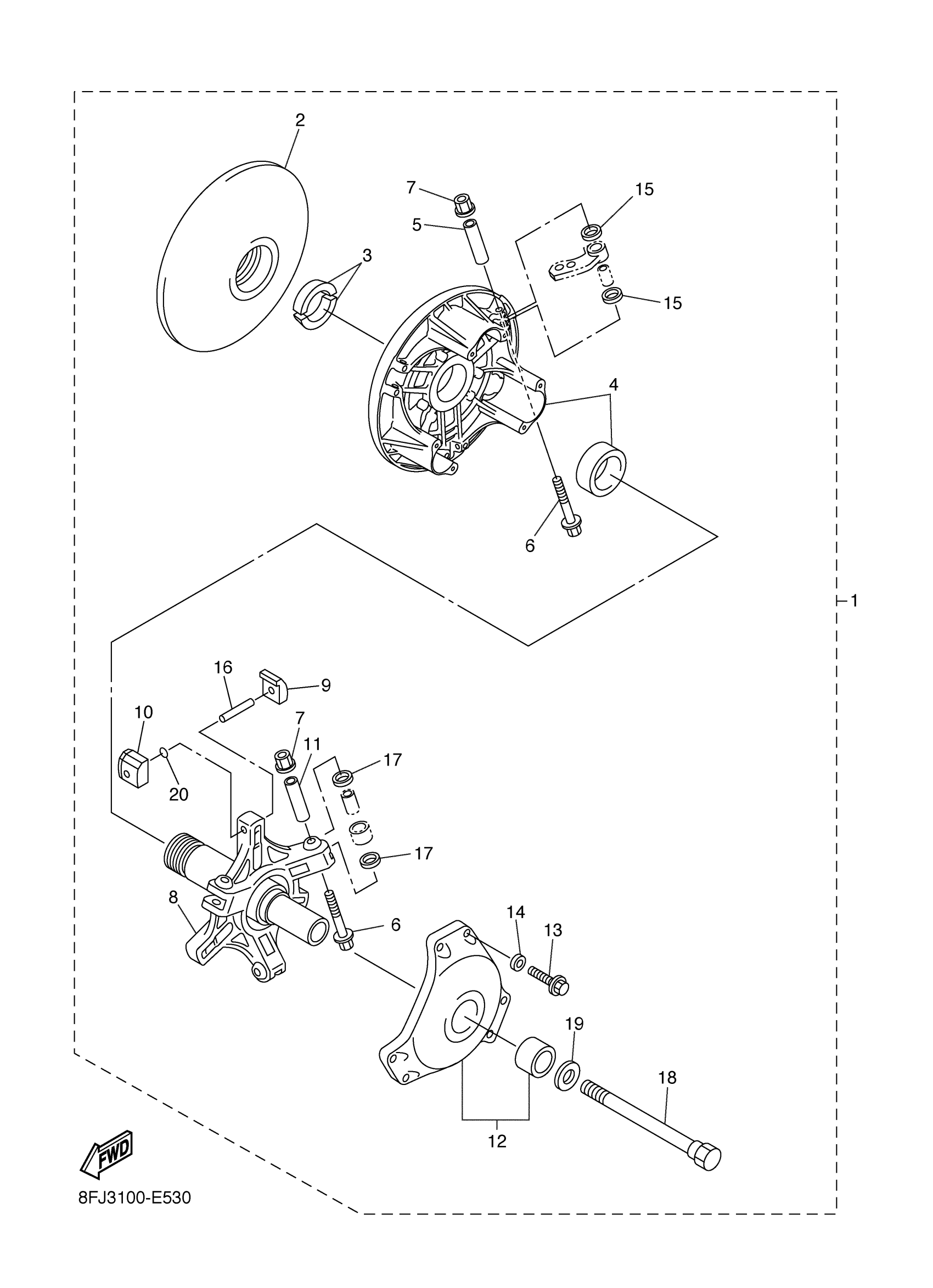

Yamaha RST90GTYS (RS VENTURE GT) 8HF10 2009 ALTERNATE REBUILD KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8ES-W176G-12-00

$1,192.99

2

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$199.05

3

STOPPER

8V0-17639-00-00

$10.52

4

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

$468.94

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMPLETE

8ES-17640-02-00

$438.89

9

SLIDER

8BW-17653-00-00

$13.86

10

SLIDER

8ES-17653-00-00

$21.43

11

COLLAR

90387-0514U-00

$15.86

12

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$176.14

13

BOLT, HEXAGON

97017-06030-00

$3.00

14

WASHER(6TA)

92907-06600-00

$0.78

15

WASHER, PLATE(88R)

90202-08204-00

$5.72

16

PIN, SPRING (7F7)

91609-50032-00

$3.66

17

WASHER, PLATE(8BV)

90202-09227-00

$7.48

18

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

19

WASHER(JN5)

92907-16100-00

$12.08

20

DAMPER, SLIDER

8ES-17655-00-00

$1.83
