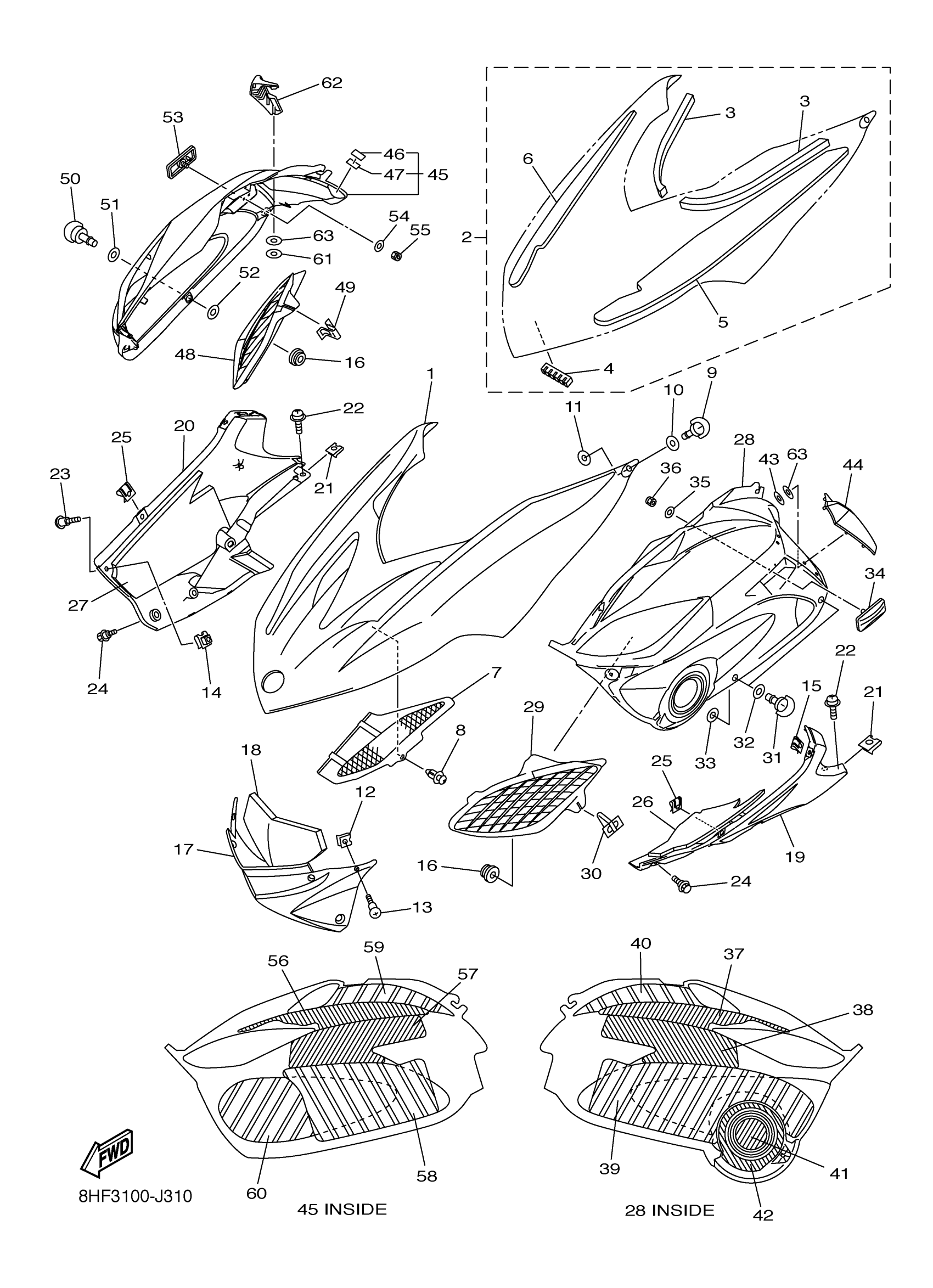

Yamaha RST90GTAL (RS VENTURE GT) 8HF50 2011 SHROUD Diagram

#

Description
Price

1

SHROUD

8FP-77111-01-33

Unavailable

2

LINING SET

8FP-W7726-00-00

$18.82

3

TRIM 1

8FP-77165-00-00

$3.68

4

GUIDE 1

8FP-77123-00-00

$1.65

5

DAMPER, NOISE 11

8FP-77271-00-00

$3.57

6

DAMPER, NOISE 11

8FP-77271-10-00

$3.57

7

LOUVER 3

8FP-77133-00-00

Unavailable

8

RIVET

90269-06081-00

$5.31

9

HEAD

3FV-28386-00-00

$33.27

10

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

11

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

12

NUT, SPRING(4ES)

90183-06069-00

$5.69

13

SCREW, BINDING

90154-06009-00

$2.80

14

NUT, SPRING

90183-06100-00

$7.35

15

PLATE, SPRING

4XV-2177L-01-00

$5.79

16

GROMMET

90480-13019-00

Unavailable

17

PANEL, SUB FRAME 1

8FA-21912-00-00

Unavailable

18

DAMPER 1

8FP-77198-00-00

Unavailable

19

HOOD 1

8GM-21982-00-00

Unavailable

20

HOOD 2

8FP-21983-00-00

Unavailable

21

NUT, SPRING(4ES)

90183-06069-00

$5.69

22

SCREW, WITH WASHER

90159-06011-00

Unavailable

23

SCREW, BINDING

90154-06009-00

$2.80

24

BOLT

90109-06220-00

Unavailable

25

PLATE, SPRING

4XV-2177L-01-00

$5.79

26

DAMPER, NOISE 18

8GM-77278-00-00

Unavailable

27

DAMPER, NOISE 19

8FP-77279-00-00

Unavailable

28

HOOD 3

8GM-2197H-01-00

Unavailable

29

LOUVER 5

8FP-77109-00-00

Unavailable

30

CLIP

90468-06001-00

Unavailable

31

HEAD

3FV-28386-00-00

$33.27

32

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

33

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

34

PLATE 1

8FR-77185-00-00

Unavailable

35

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

36

NUT, NYLON

95707-05300-00

Unavailable

37

DAMPER, NOISE 12

8FP-77272-00-00

Unavailable

38

DAMPER, NOISE 13

8FP-77273-00-00

Unavailable

39

DAMPER, NOISE 14

8GM-77274-00-00

Unavailable

40

DAMPER, SHROUD

8FP-77196-00-00

Unavailable

41

DAMPER, NOISE 11

8GM-77271-00-00

Unavailable

42

DAMPER, NOISE 12

8GM-77272-00-00

Unavailable

43

NUT, SPRING

90183-06071-00

$0.50

44

TRIM 3

8HF-77167-00-00

Unavailable

45

HOOD ASSY 4

8HF-2198A-00-00

Unavailable

46

TAPE 2

8FR-7717F-00-00

Unavailable

47

PAD 1

8FR-77151-00-00

Unavailable

48

LOUVER 6

8FP-77108-00-00

Unavailable

49

CLIP

90468-06001-00

Unavailable

50

HEAD

3FV-28386-00-00

$33.27

51

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

52

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

53

PLATE 1

8FR-77185-00-00

Unavailable

54

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

55

NUT, NYLON

95707-05300-00

Unavailable

56

DAMPER, NOISE 15

8FP-77275-00-00

Unavailable

57

DAMPER, NOISE 16

8FP-77276-01-00

Unavailable

58

DAMPER, NOISE 17

8FP-77277-01-00

Unavailable

59

DAMPER, SHROUD

8FP-77196-10-00

Unavailable

60

DAMPER

8FP-78316-10-00

Unavailable

61

NUT, SPRING

90183-06071-00

$0.50

62

TRIM 4

8HF-77168-00-00

Unavailable

63

WASHER, PLATE

90202-06058-00

$3.29
