Description

Price

1

STEERING GATE COMP.

8ES-23870-05-00

Unavailable

2

RIVET, BLIND

90267-47195-00

$3.88

3

BRACKET

8FA-83614-00-00

Unavailable

4

DAMPAR

8FA-23858-00-00

$2.86

5

CLAMP

90464-11007-00

$2.75

6

CLAMP

90464-20010-00

$3.23

7

STOPPER 1

8ES-2381C-00-00

$15.49

8

RIVET, BLIND

90267-47195-00

$3.88

9

LABEL, CAUTION

8FA-2389C-E0-00

Unavailable

10

BOLT, WASHER BASED(JN9)

90105-081A7-00

$8.49

11

WASHER (853)

90201-08326-00

$8.49

12

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

13

LATCH

8FA-2389E-00-00

$13.49

14

NUT, SELF-LOCKING

95602-08200-00

$3.20

15

CLAMP

90462-10022-00

Unavailable

16

PAD, STEERING

8FA-23815-00-00

Unavailable

17

PLATE

8ES-14146-00-00

Unavailable

18

SCREW, ROUND HEAD (24R)

90150-06015-00

Unavailable

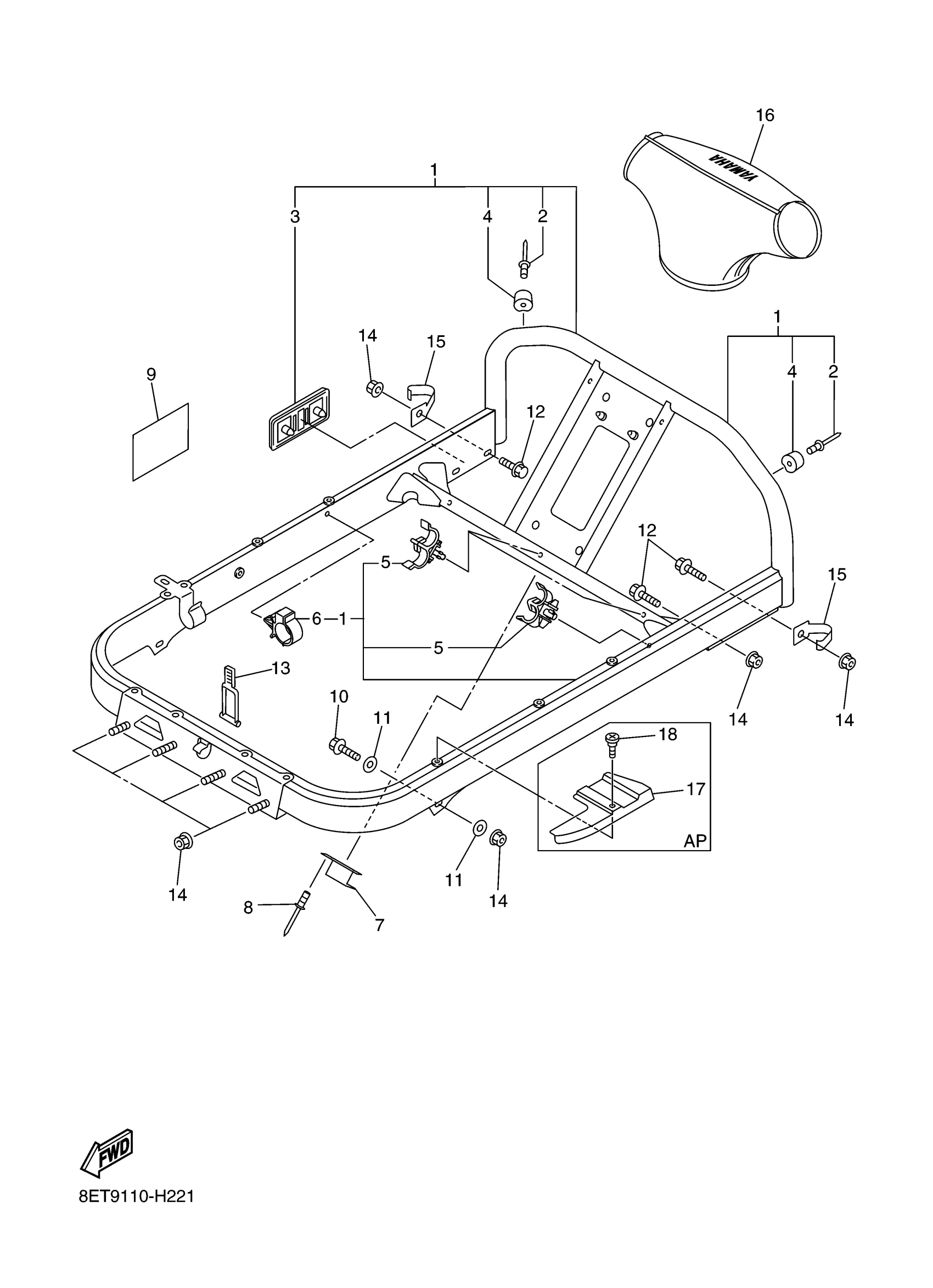

Yamaha RST90FS (RS VENTURE) 8ETF 2015 STEERING GATE Diagram

STEERING GATE COMP.

RIVET, BLIND

BRACKET

DAMPAR

CLAMP

CLAMP

STOPPER 1

RIVET, BLIND

LABEL, CAUTION

BOLT, WASHER BASED(JN9)

WASHER (853)

BOLT, FLANGE(6TA)

LATCH

NUT, SELF-LOCKING

CLAMP

PAD, STEERING

PLATE

SCREW, ROUND HEAD (24R)
