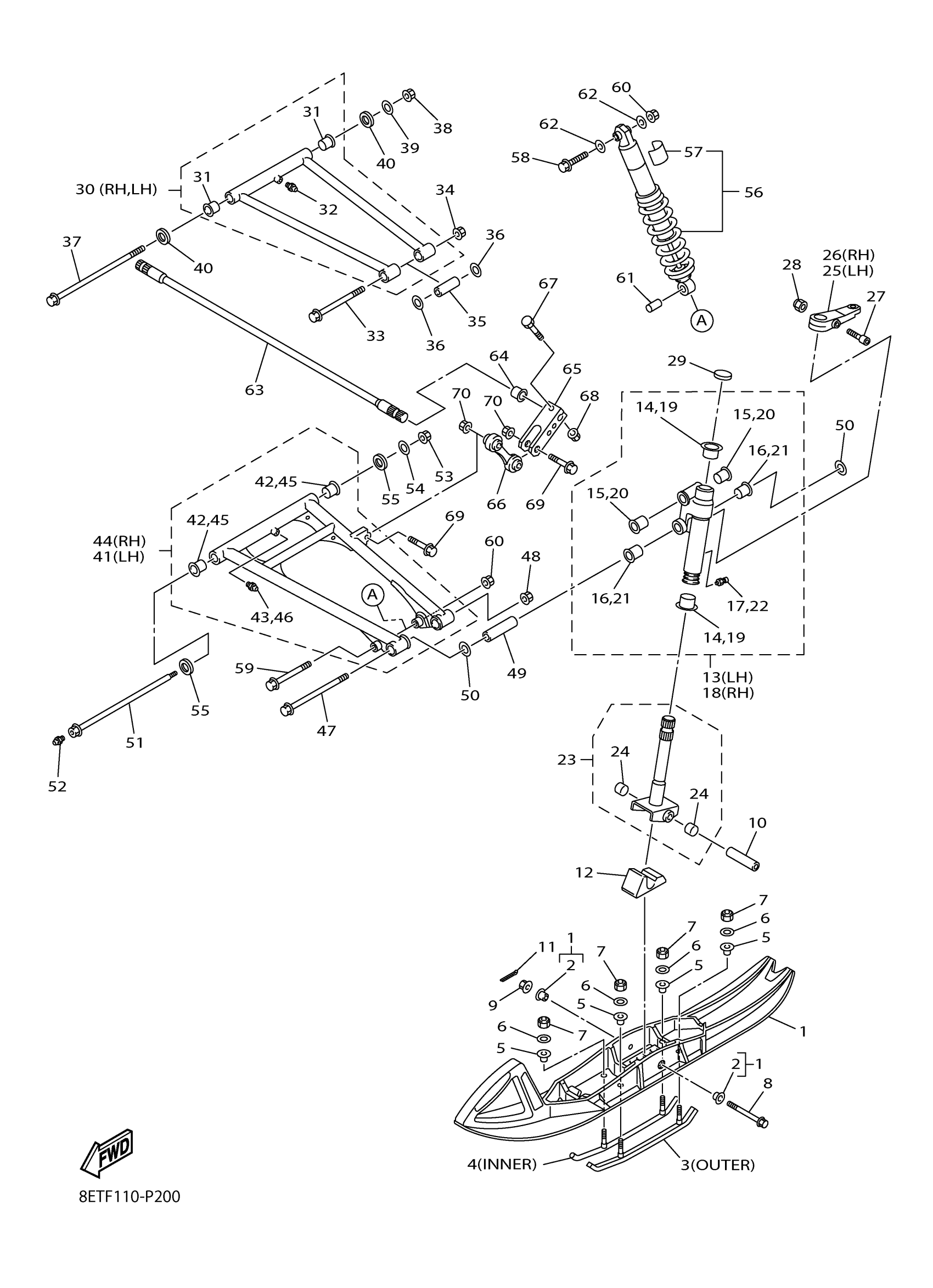

Yamaha RST90FS (RS VENTURE) 8ETF 2015 SKI Diagram
#
1
GEN II 135MM TUNER SKI BK
SMA-8JPDS-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
8JH RUNNER SET - 11MM SQ. 6"
SMA-8JH31-04-00
Unavailable
4
8JH CARBIDE PAIR - 11MM RD 4"
SMA-8JH31-03-00
Unavailable
5
COLLAR
90387-08064-00
$8.49
6
WASHER, PLATE
90201-08053-00
$5.60
7
NUT, NYLON
95717-08300-00
$2.70
8
BOLT, FLANGE
90105-10070-00
$12.49
9
NUT, S/L FLANGE
95602-10200-00
$4.82
10
COLLAR
90387-1012H-00
$24.99
11
PIN, COTTER
91490-20025-00
$1.99
12
STOPPER 1
8CR-23743-10-00
$28.99
13
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-10-00
$451.99
14
BUSH, SOLID
90381-25115-00
$9.49
15
BUSH, SOLID
90381-15N50-00
$7.49
16
BUSH, SOLID
90381-18N51-00
Unavailable
17
NIPPLE, GREASE
93700-06M03-00
Unavailable
18
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-10-00
Unavailable
19
BUSH, SOLID
90381-25115-00
$9.49
20
BUSH, SOLID
90381-15N50-00
$7.49
21
BUSH, SOLID
90381-18N51-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
24
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
25
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
26
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
28
NUT, SELF-LOCKING
95602-08200-00
Unavailable
29
CAP, CASE
3YK-22472-40-00
Unavailable
30
FRONT UPPER ARM COMP. (LEFT)
8HG-23540-20-00
Unavailable
31
BUSH, SOLID
90381-15N50-00
$7.49
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
BOLT, FLANGE
90105-10230-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
$4.82
35
COLLAR
90387-10099-00
Unavailable
36
WASHER, PLATE
90201-10052-00
Unavailable
37
BOLT
90109-10056-00
Unavailable
38
NUT, S/L FLANGE
95602-10200-00
$4.82
39
WASHER, PLATE
90201-10052-00
Unavailable
40
WASHER
90209-15N50-00
Unavailable
41
FRONT LOWER ARM COMP. (LEFT)
8HG-23570-20-00
Unavailable
42
BUSH, SOLID
90381-16N51-00
Unavailable
43
NIPPLE, GREASE
93700-06M03-00
Unavailable
44
FRONT LOWER ARM COMP. (RIGHT)
8HG-23580-20-00
Unavailable
45
BUSH, SOLID
90381-16N51-00
Unavailable
46
NIPPLE, GREASE
93700-06M03-00
Unavailable
47
BOLT, FLANGE
90105-12078-00
Unavailable
48
NUT, SELF-LOCKING
95602-12200-00
Unavailable
49
COLLAR
90387-12054-00
Unavailable
50
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
51
BOLT, UNION
90401-10045-00
Unavailable
52
NIPPLE, GREASE
93700-06M03-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
$4.82
54
WASHER, PLATE
90201-10052-00
Unavailable
55
WASHER
90209-15N50-00
Unavailable
56
ABSORBER ASSY 1
8FM-2376A-40-00
Unavailable
57
LABEL, WARNING
4AA-22259-60-00
Unavailable
58
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
59
BOLT, FLANGE
90105-10288-00
Unavailable
60
NUT, S/L FLANGE
95602-10200-00
$4.82
61
COLLAR
90387-10N59-00
Unavailable
62
WASHER, PLATE
90201-10052-00
Unavailable
63
BAR, STABILIZER FRONT
8FG-2386E-10-00
Unavailable
64
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
65
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
66
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
67
BOLT
90101-06046-00
Unavailable
68
NUT, U FLANGE
95604-06200-00
Unavailable
69
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
70
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
