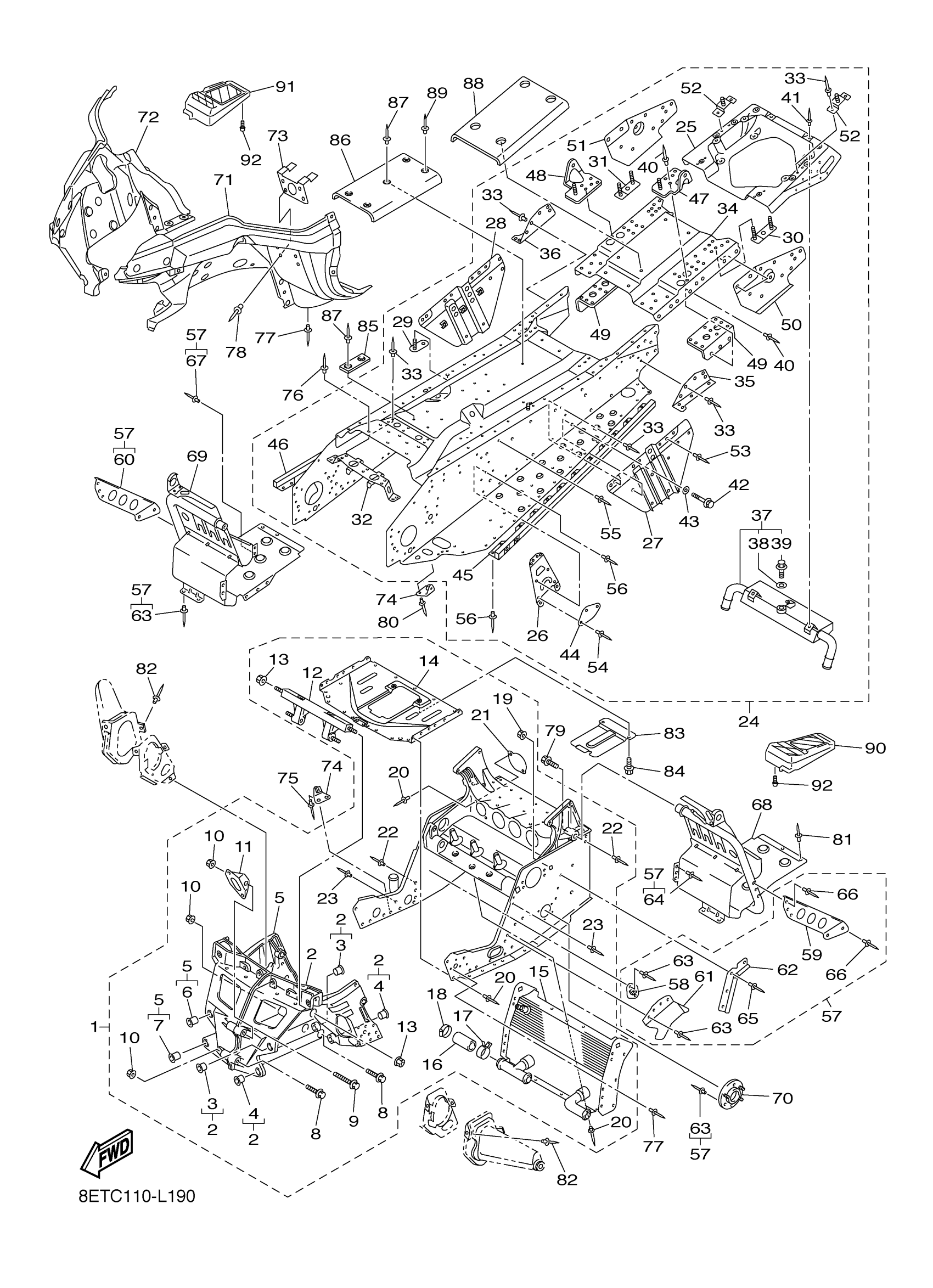

Yamaha RST90FS (RS VENTURE) 8ETF 2015 FRAME Diagram
#
1
FRONT FRAME COMP.
8ET-21940-20-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET, REGULATOR
8FA-2128A-01-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
PROTECTOR
8FR-2193A-01-00
Unavailable
15
HEAT EXCHANGER ASSY
8HF-12440-00-00
$379.99
16
HOSE 7
8FA-12551-00-00
Unavailable
17
CLIP (8M6)
90467-28046-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
$8.49
20
RIVET, BLIND
90267-47195-00
Unavailable
21
PLATE, COVER
8ES-2131D-00-00
Unavailable
22
RIVET, BLIND
90267-48016-00
Unavailable
23
RIVET, BLIND
90267-48177-00
Unavailable
24
REAR FRAME COMP.
8ET-21950-21-00
Unavailable
25
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
26
BRACKET, MAIN TRACK 1
8ET-21943-01-00
Unavailable
27
BRACKET, RR.TRACK SUSPENTION 1
8ET-21944-00-00
Unavailable
28
BRACKET, RR.TRACK SUSPENTION 2
8ET-21954-00-00
Unavailable
29
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
30
BRACKET 1
8ET-2194X-00-00
Unavailable
31
BRACKET 2
8ET-2195X-00-00
Unavailable
32
PROTECTOR, MUFFLER
8ES-2194H-00-00
Unavailable
33
RIVET, BLIND
90267-47195-00
Unavailable
34
PANEL, SUB FRAME 5
8ET-21916-01-00
Unavailable
35
PATCH 3
8ET-21963-00-00
Unavailable
36
PATCH 4
8ET-21964-00-00
Unavailable
37
HEAT EXCHANGER ASSY 4
8ET-1241A-02-00
Unavailable
38
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
39
BOLT, FLANGE
95817-06016-00
Unavailable
40
RIVET, BLIND
90267-47197-00
Unavailable
41
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
42
BOLT, FLANGE
95814-10020-00
Unavailable
43
WASHER, PLATE
90201-10064-00
Unavailable
44
BRACKET, MAIN TRACK 2
8ET-21953-00-00
Unavailable
45
REINFORCEMENT, FOOTREST 1
8ET-21926-00-00
Unavailable
46
REINFORCEMENT, FOOTREST 2
8ET-21936-00-00
Unavailable
47
BRACKET, SEAT FITTING
8ET-21946-00-00
Unavailable
48
BRACKET, SEAT FITTING 1
8ET-21956-00-00
Unavailable
49
PATCH 8
8ET-21988-00-00
Unavailable
50
PATCH 9
8ET-21989-00-00
Unavailable
51
PATCH 10
8ET-21997-00-00
Unavailable
52
BRACKET 4
8ET-2196G-00-00
Unavailable
53
RIVET, BLIND
90267-48016-00
Unavailable
54
RIVET, BLIND
90267-48016-00
Unavailable
55
RIVET, BLIND
90267-48023-00
Unavailable
56
RIVET, BLIND
90267-48177-00
Unavailable
57
FRAME CONNECTION KIT
8FK-W2195-21-00
Unavailable
58
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
59
BRACKET, 5
8FU-2196M-00-00
Unavailable
60
BRACKET, 6
8FU-2197M-00-00
Unavailable
61
COVER 2
8FP-2198G-01-00
Unavailable
62
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
63
RIVET, BLIND
90267-47195-00
Unavailable
64
RIVET, BLIND
90267-47197-00
Unavailable
65
RIVET, BLIND
90267-48018-00
Unavailable
66
RIVET, BLIND
90267-48177-00
Unavailable
67
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
68
FOOTREST COMP. 1
8FU-21960-01-00
Unavailable
69
FOOTREST COMP. 2
8FU-21970-01-00
Unavailable
70
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
71
FRAME UNDER 1
8ES-2196A-01-00
Unavailable
72
FRAME, UNDER 2
8FA-2196E-01-00
Unavailable
73
BRACKET, GUARD FITTING
8FA-21972-01-00
Unavailable
74
BRACKET 3
8FA-2196F-00-00
Unavailable
75
RIVET, BLIND (22W)
90267-48083-00
Unavailable
76
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
77
RIVET, BLIND
90267-48018-00
Unavailable
78
RIVET, BLIND
90267-47200-00
Unavailable
79
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
80
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
81
RIVET, BLIND
90267-48023-00
Unavailable
82
RIVET, BLIND
90267-47195-00
Unavailable
83
PROTECTOR, FRAME FR
8FR-2197E-00-00
Unavailable
84
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
85
SPACER
8FA-21998-00-00
Unavailable
86
SHIELD, HEAT
8FG-23892-00-00
Unavailable
87
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
88
SHIELD, HEAT
8ET-23892-00-00
Unavailable
89
RIVET, BLIND
90267-47004-00
Unavailable
90
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
91
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
92
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
