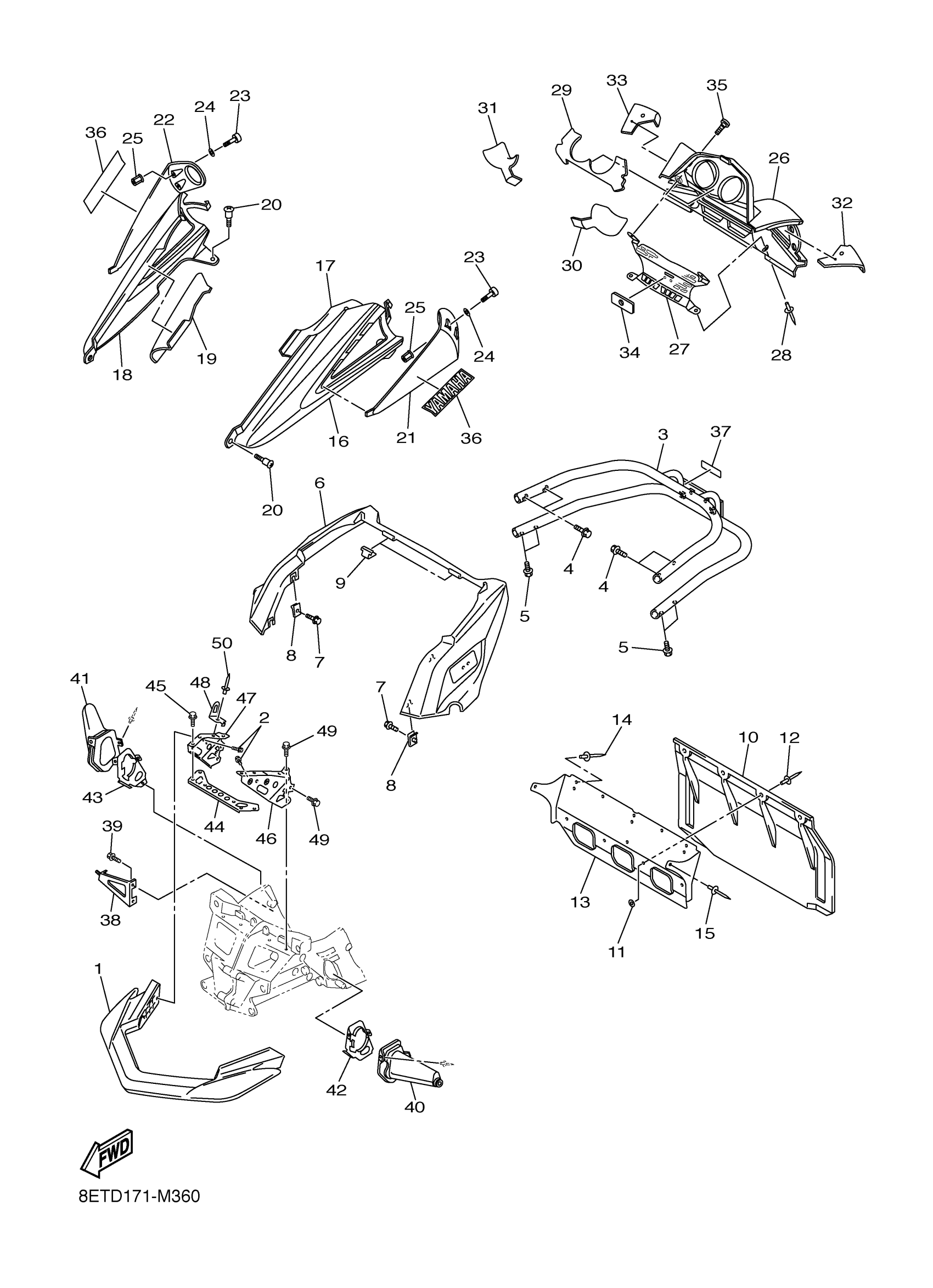

Yamaha RST90ES (RS VENTURE) 8ETE 2014 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8ET-77541-01-00
$284.99
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BOLT, FLANGE
95814-08016-00
$9.49
6
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
7
BOLT, FLANGE
95817-06016-00
$2.75
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
9
TAPE 4
8HV-7717H-00-00
$1.49
10
FLAP
8GW-77595-00-00
Unavailable
11
WASHER, PLATE
90201-04027-00
$3.02
12
RIVET, BLIND
90267-47200-00
$2.75
13
STOPPER, FLAP
8GW-77596-01-00
Unavailable
14
RIVET, BLIND(3JB)
90267-48095-00
$9.49
15
RIVET, BLIND
90267-47195-00
$3.88
16
PROTECTOR 1
8ES-77551-00-00
Unavailable
17
LINING, SHROUD 1
8ES-77261-01-00
Unavailable
18
PROTECTOR 2
8ES-77552-00-00
Unavailable
19
LINING, SHROUD 2
8ES-77262-01-00
Unavailable
20
SCREW, BINDING
90154-06009-00
Unavailable
21
PROTECTOR 4
8ES-77554-00-P8
Unavailable
22
PROTECTOR 5
8ES-77555-00-P8
Unavailable
23
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
24
WASHER, PLATE (680)
90201-06M07-00
Unavailable
25
NUT(1WT)
90179-06520-00
Unavailable
26
COVER, TAILLIGHT
8ES-84516-00-00
Unavailable
27
PROTECTOR 3
8ES-77553-00-00
Unavailable
28
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
29
LINING, SHROUD 3
8ES-77263-00-00
Unavailable
30
LINING, SHROUD 4
8ES-77264-00-00
Unavailable
31
LINING, SHROUD 5
8ES-77265-00-00
Unavailable
32
LINING, SHROUD 6
8ES-77266-00-00
Unavailable
33
LINING, SHROUD 7
8ES-77267-00-00
Unavailable
34
LINING,SHROUD 8
8ES-77268-00-00
Unavailable
35
BOLT
90109-06220-00
Unavailable
36
EMBLEM, YAMAHA
99241-00120-00
Unavailable
37
LABEL, PULLING LOAD LIMIT
8GS-2817S-E0-00
Unavailable
38
BRACKET, OIL TANK 1
8ES-2193E-00-00
Unavailable
39
BOLT, FLANGE
95822-08014-00
Unavailable
40
COVER 1
8FU-2198F-01-00
Unavailable
41
COVER 3
8FU-2198J-01-00
Unavailable
42
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
43
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
44
BUMPER, FRONT 2
8FA-77512-00-00
Unavailable
45
BOLT, FLANGE
95817-06012-00
Unavailable
46
BRACKET, FRONT
8FA-21949-00-00
Unavailable
47
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
48
STAY 1
8FA-77125-00-00
Unavailable
49
BOLT, FLANGE
95814-08016-00
$9.49
50
RIVET, BLIND
90267-47195-00
$3.88
