- RST90DS (RS VENTURE) 8ETD 2013
TRACK SUSPENSION 1

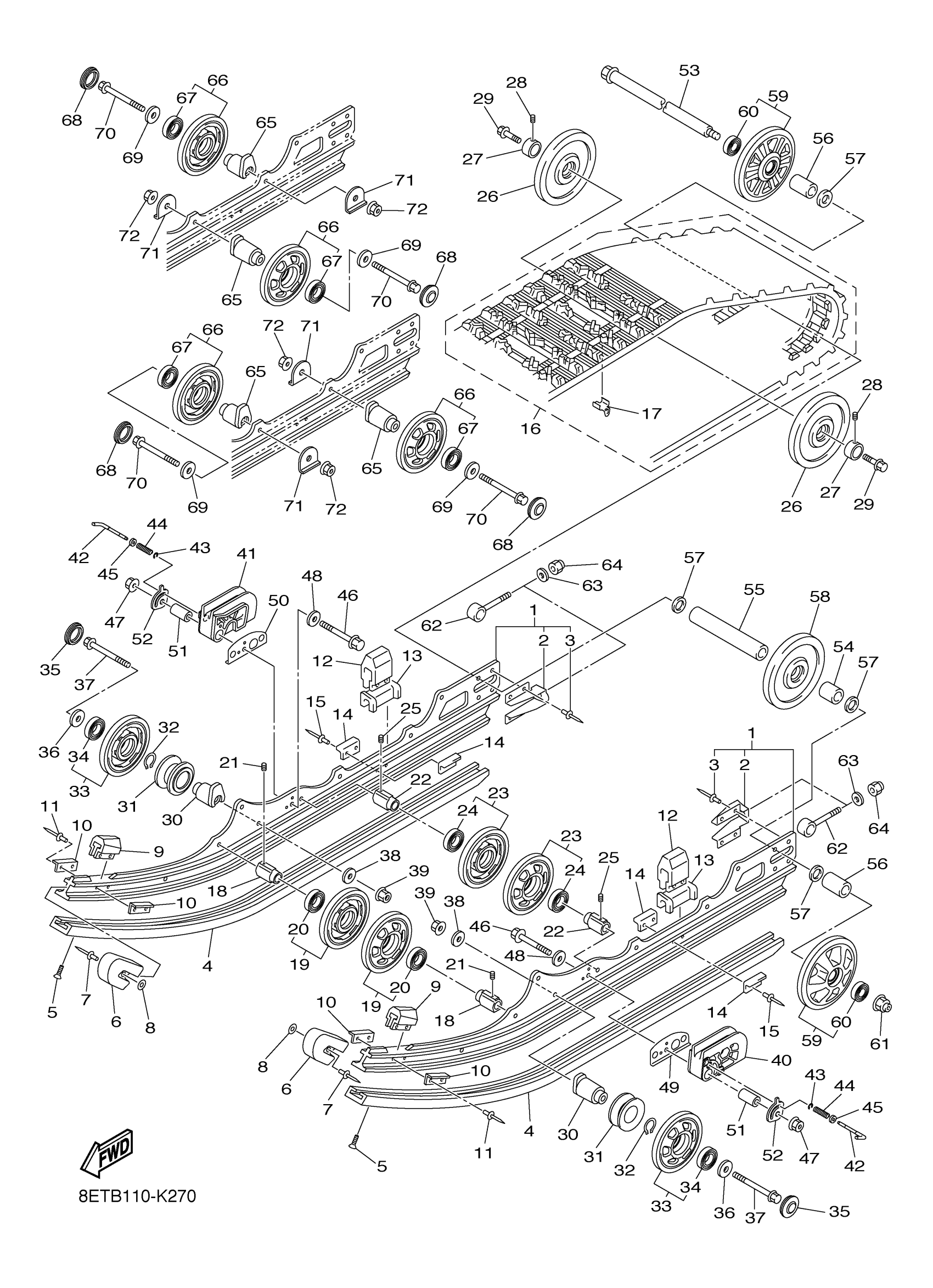

Yamaha RST90DS (RS VENTURE) 8ETD 2013 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8ET-W4741-11-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8ET-47110-11-00
Unavailable
17
METAL, SLIDE
8FA-47115-09-00
Unavailable
18
COLLAR
8ES-47319-01-00
Unavailable
19
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
20
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
21
BOLT, SET (8K2)
90113-06039-00
Unavailable
22
COLLAR
8ES-47319-01-00
Unavailable
23
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
24
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
25
BOLT, SET (8K2)
90113-06039-00
Unavailable
26
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
27
COLLAR 1
8ES-47365-00-00
Unavailable
28
BOLT, SET (8K2)
90113-06039-00
Unavailable
29
BOLT (8V0)
90109-10771-00
Unavailable
30
BRACKET 7
8ES-47419-10-00
Unavailable
31
HOOK 1
8ET-47446-00-00
Unavailable
32
CIRCLIP(6U2)
93410-35M10-00
Unavailable
33
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
34
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
35
CAP, WHEEL
8HF-47317-00-00
Unavailable
36
WASHER, PLATE
90201-10038-00
Unavailable
37
BOLT, FLANGE
95812-10080-00
Unavailable
38
WASHER, PLATE
90201-10052-00
Unavailable
39
NUT, S/L FLANGE
95602-10200-00
Unavailable
40
SPRING, OUTSIDE 1
8ET-47435-10-00
Unavailable
41
SPRING, OUTSIDE 2
8ET-47436-10-00
Unavailable
42
PIN 1
8ET-47449-10-00
Unavailable
43
CIRCLIP (EU0)
99080-04600-00
Unavailable
44
SPRING, CONPRESSION (7R4)
90501-08665-00
Unavailable
45
WASHER 6464337400
90201-06040-00
Unavailable
46
BOLT, FLANGE
90105-10029-00
Unavailable
47
NUT, S/L FLANGE
95602-10200-00
Unavailable
48
WASHER, PLATE
90201-10052-00
Unavailable
49
WASHER 1
8ET-47374-10-00
Unavailable
50
WASHER 2
8ET-47375-10-00
Unavailable
51
COLLAR(47X)
90387-106K8-00
Unavailable
52
WASHER, LOCK
8ET-47347-00-00
Unavailable
53
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
54
COLLAR
90387-20015-00
Unavailable
55
COLLAR
90387-20016-00
Unavailable
56
COLLAR
90387-20019-00
Unavailable
57
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
58
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
59
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
60
BEARING(8AB)
93306-00444-00
Unavailable
61
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
62
COLLAR 3
8DM-47479-00-00
Unavailable
63
WASHER, PLATE
92990-10600-00
Unavailable
64
NUT, NYLON
95707-10300-00
Unavailable
65
BRACKET 7
8ES-47419-00-00
Unavailable
66
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
67
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
68
CAP, WHEEL
8HF-47317-00-00
Unavailable
69
WASHER, PLATE
90201-10038-00
Unavailable
70
BOLT, FLANGE
95812-10080-00
Unavailable
71
WASHER, CLAW
90214-10003-00
Unavailable
72
NUT, S/L FLANGE
95602-10200-00
Unavailable
