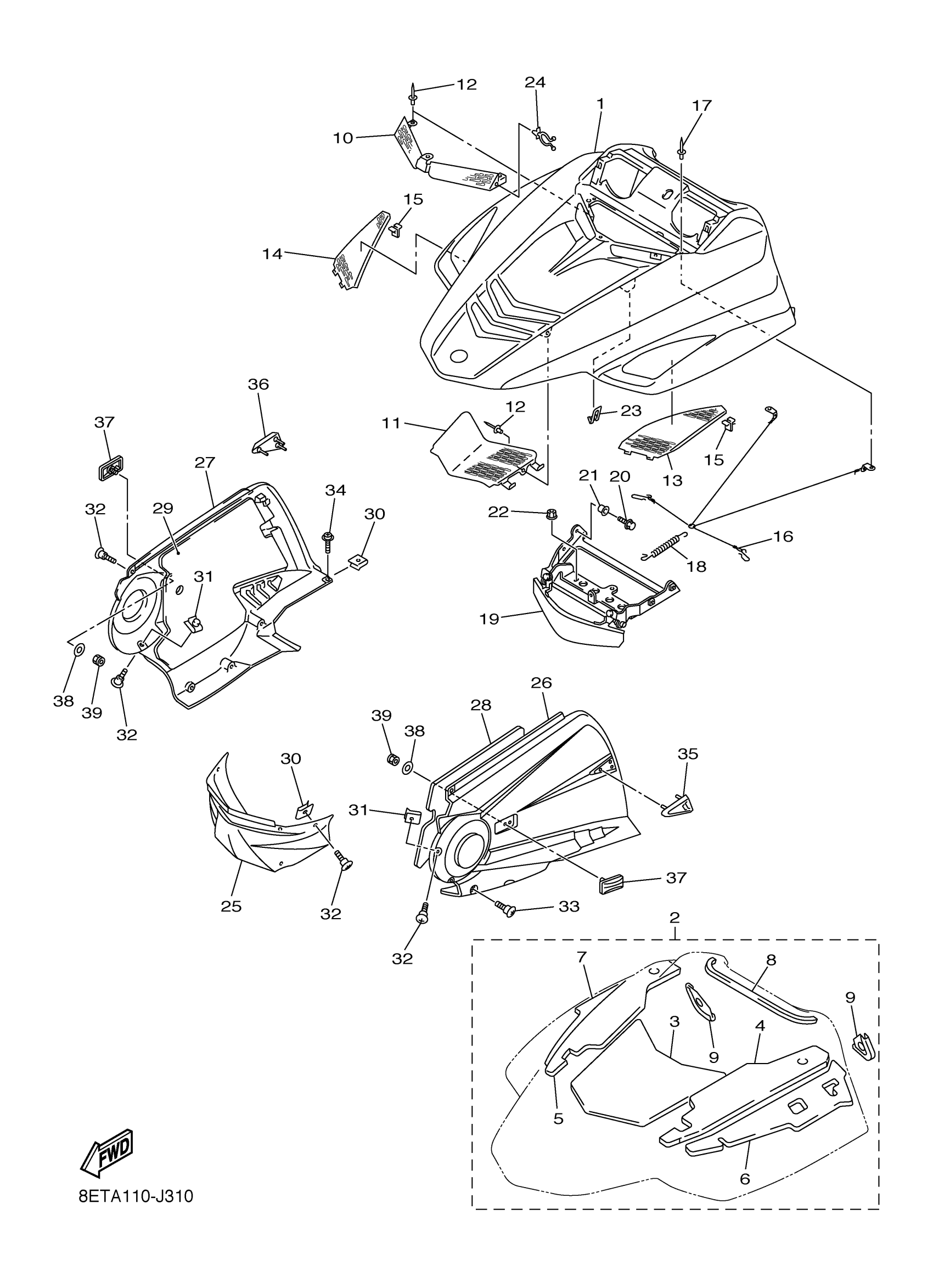

Yamaha RST90BS (RS VENTURE) 8ETC 2012 SHROUD Diagram
#
1
SHROUD (BLUISH SILVER 4)
8FA-77111-01-P5
Unavailable
2
LINING SET
8FA-W7726-11-00
Unavailable
3
DAMPER, NOISE 11
8FA-77271-01-00
$25.99
4
DAMPER, NOISE 12
8FA-77272-01-00
Unavailable
5
DAMPER, NOISE 13
8FA-77273-01-00
$12.49
6
DAMPER, NOISE 14
8FA-77274-01-00
Unavailable
7
DAMPER, NOISE 15
8FA-77275-01-00
Unavailable
8
TRIM 1
8FA-77165-00-00
$15.49
9
TRIM 3
8FA-77167-10-00
Unavailable
10
LOUVER 3
8ES-77133-00-00
$41.99
11
LOUVER 4
8ES-77134-00-00
$41.99
12
RIVET
90269-06081-00
$7.49
13
LOUVER 5
8ES-77109-00-00
Unavailable
14
LOUVER 6
8ES-77108-00-00
Unavailable
15
CLIP
90468-06001-00
$4.67
16
STOPPER, SHROUD
8FA-77118-00-00
Unavailable
17
RIVET, BLIND
90267-48018-00
Unavailable
18
CLAMP, ROD
89A-77159-00-00
Unavailable
19
HINGE ASSY
8FA-77140-00-00
Unavailable
20
BOLT, FLANGE
95817-06016-00
Unavailable
21
COLLAR (8G8)
90387-06681-00
Unavailable
22
NUT, U FLANGE
95604-06200-00
Unavailable
23
CLAMP 1
8FA-77135-00-00
Unavailable
24
CLAMP
90464-15M27-00
Unavailable
25
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
26
HOOD 3
8ES-2197H-01-00
Unavailable
27
HOOD 4
8FA-2198H-02-00
Unavailable
28
DAMPER, NOISE 16
8ES-77276-00-00
Unavailable
29
DAMPER, NOISE 17
8FA-77277-01-00
Unavailable
30
NUT, SPRING(4ES)
90183-06069-00
Unavailable
31
NUT, SPRING
90183-06100-00
Unavailable
32
SCREW, BINDING
90154-06009-00
Unavailable
33
BOLT
90109-06220-00
Unavailable
34
SCREW, WITH WASHER
90159-06011-00
Unavailable
35
PROTECTOR, SIDE 1
8FA-77561-00-00
Unavailable
36
PROTECTOR, SIDE 2
8FA-77562-00-00
Unavailable
37
PLATE 1
8FR-77185-00-00
Unavailable
38
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
39
NUT, NYLON
95707-05300-00
Unavailable
