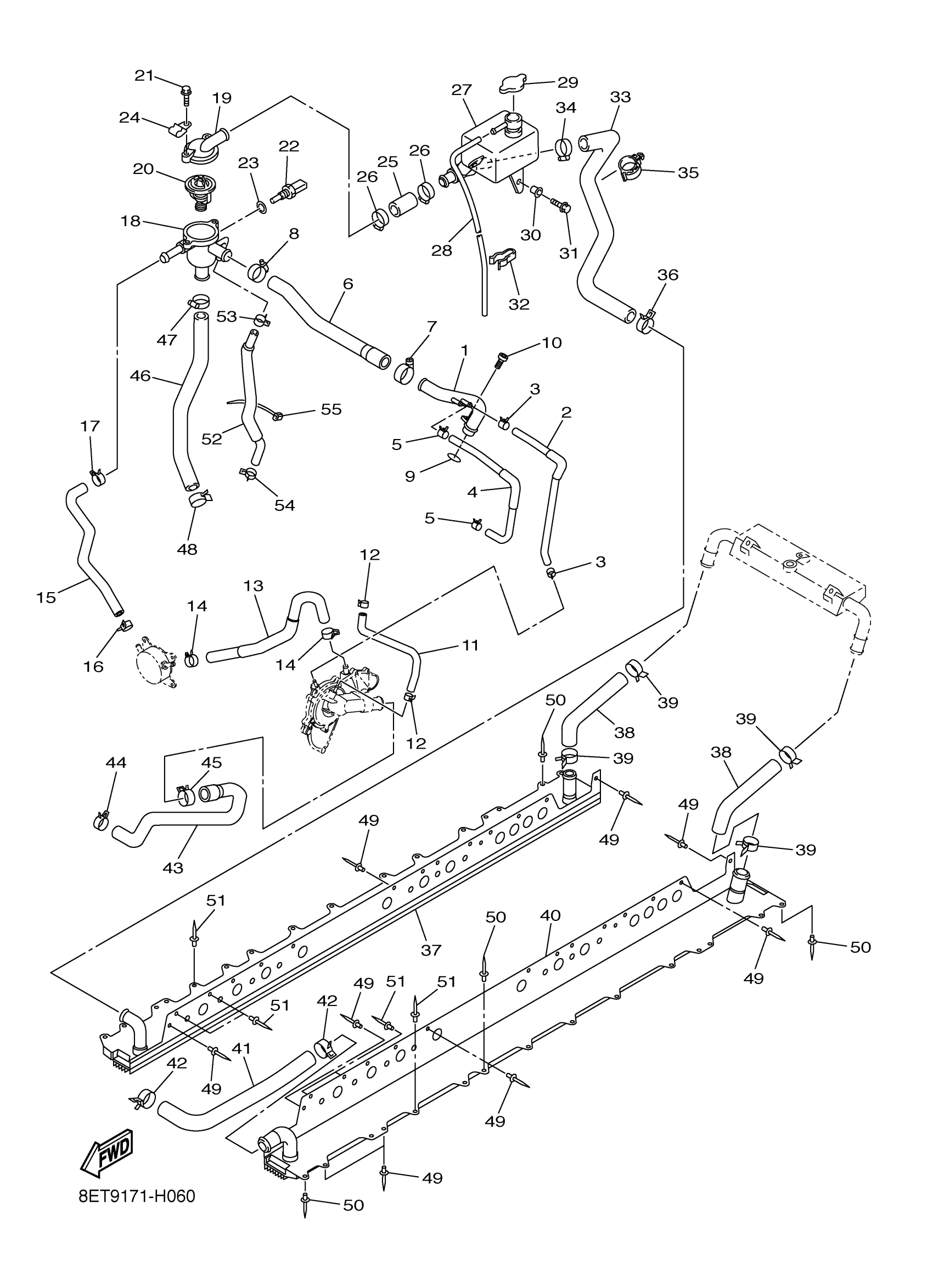

Yamaha RST90AS (RS VENTURE) 8ETB 2011 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8ES-12482-00-00

Unavailable

2

PIPE 5

8ES-12485-01-00

Unavailable

3

CLIP(3BM)

90467-10135-00

$8.49

4

HOSE 2

8ES-12577-00-00

Unavailable

5

CLIP(3BM)

90467-10135-00

$8.49

6

HOSE 2

8ES-1243E-00-00

Unavailable

7

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

8

HOSE CLAMP ASSY

90450-35001-00

$5.60

9

O-RING

93210-26006-00

$8.49

10

BOLT(3MA)

91312-06016-00

$5.60

11

HOSE 3

8ES-12578-00-00

Unavailable

12

CLIP

90467-110A2-00

Unavailable

13

HOSE 5

8ES-12588-00-00

Unavailable

14

CLIP(3TB)

90467-17128-00

$8.49

15

HOSE 6

8ES-12589-00-00

Unavailable

16

CLIP(3TB)

90467-17128-00

$8.49

17

CLIP(3TB)

90467-17128-00

$8.49

18

HOUSING, THERMOSTA

8FA-W1258-02-00

Unavailable

19

COVER, THERMOSTAT

5EB-12413-00-00

Unavailable

20

THERMOSTAT ASSY

8FA-12410-00-00

Unavailable

21

BOLT, FLANGE

95022-06020-00

Unavailable

22

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

23

WASHER, PLATE

90201-12790-00

Unavailable

24

. CLAMP

90465-06M28-00

Unavailable

25

HOSE,3

8FA-1243F-00-00

Unavailable

26

HOSE CLAMP ASSY

90450-35001-00

$5.60

27

TANK, RESERVE

8FA-1249B-02-00

Unavailable

28

HOSE (L600)

90445-083J5-00

Unavailable

29

CAP, RADIATOR

4FL-12462-00-00

Unavailable

30

COLLAR (838-84757-00)

90387-06024-00

Unavailable

31

BOLT, FLANGE

95817-06020-00

Unavailable

32

CLAMP(53Y)

90464-15065-00

Unavailable

33

HOSE, 4

8FA-1244G-01-00

Unavailable

34

HOSE CLAMP ASSY

90450-35001-00

$5.60

35

CLAMP

90464-32002-00

Unavailable

36

CLIP (8M6)

90467-28046-00

Unavailable

37

HEAT EXCHANGER

8ET-1240F-01-00

Unavailable

38

PIPE 6

8FA-12476-00-00

Unavailable

39

CLIP (8M6)

90467-28046-00

Unavailable

40

HEAT EXCHANGER

8ET-1240E-01-00

Unavailable

41

PIPE 7

8FA-12477-00-00

Unavailable

42

CLIP (8M6)

90467-28046-00

Unavailable

43

PIPE 8

8ES-1248A-00-00

Unavailable

44

CLIP (8M6)

90467-28046-00

Unavailable

45

CLIP

90467-310A0-00

Unavailable

46

PIPE 9

8ET-1248E-00-00

Unavailable

47

HOSE CLAMP ASSY

90450-35001-00

$5.60

48

CLIP (8M6)

90467-28046-00

Unavailable

49

RIVET, BLIND

90267-47195-00

Unavailable

50

RIVET, BLIND

90267-48023-00

Unavailable

51

RIVET, BLIND

90267-48177-00

Unavailable

52

HOSE 4

8FA-12579-00-00

Unavailable

53

CLIP(3BM)

90467-10135-00

$8.49

54

CLIP (7K7)

90467-11044-00

Unavailable

55

CLAMP(4FM)

90464-15195-00

Unavailable
