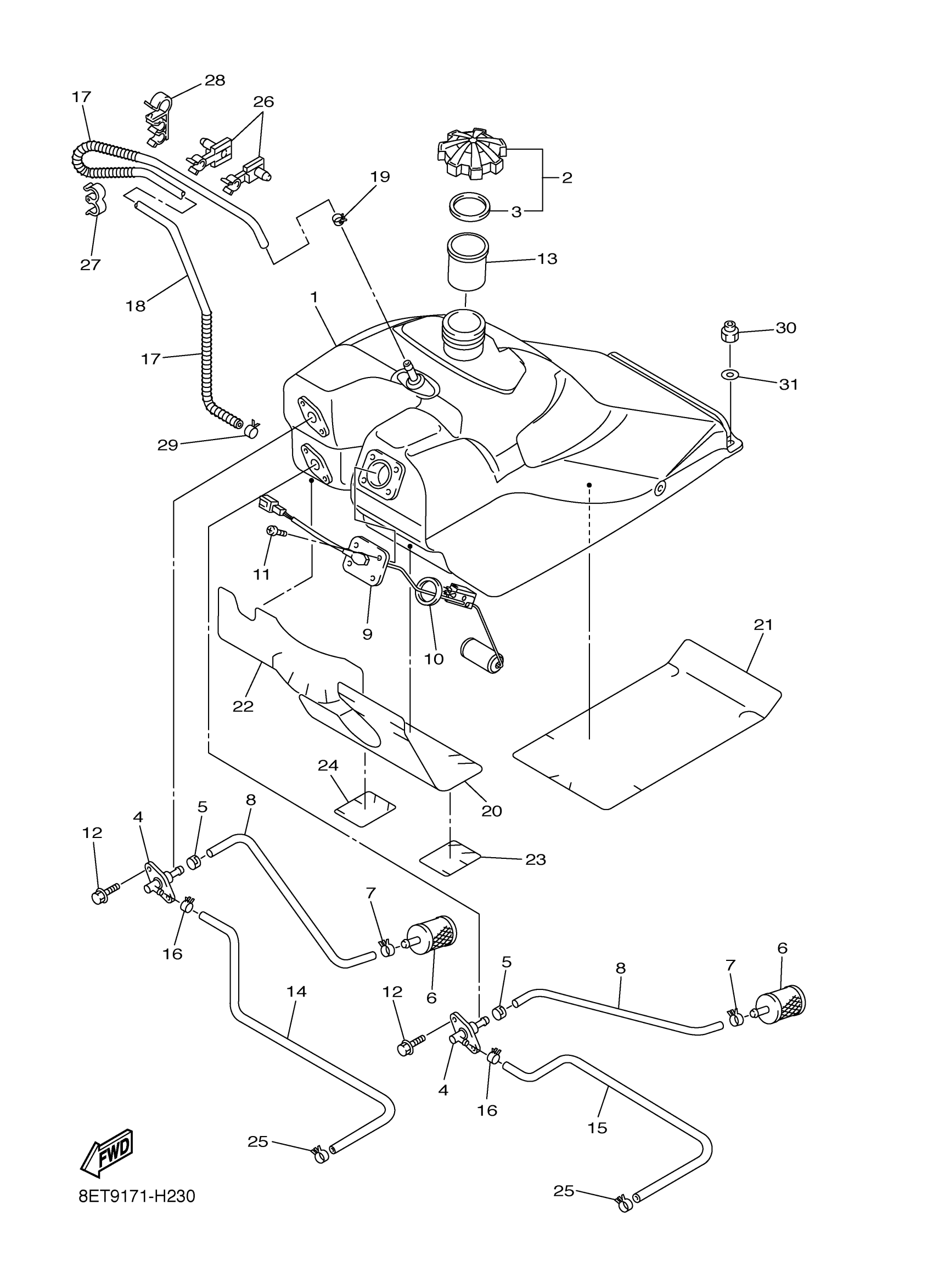

Yamaha RST90AS (RS VENTURE) 8ETB 2011 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8FJ-24111-10-00
Unavailable
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
SUCTION PIPE COMP. 1
8CR-24301-01-00
Unavailable
5
CLIP
90468-04092-00
Unavailable
6
FILTER ASSY
8H5-24560-00-00
Unavailable
8
PIPE, SUCTION 1
8FA-24335-01-00
Unavailable
13
TUBE, FILLER
8FG-24114-00-00
Unavailable
14
PIPE, FUEL 1
8ET-24311-00-00
Unavailable
15
PIPE, FUEL 1
8ET-24311-10-00
Unavailable
17
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
18
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
19
CLIP (8A1)
90467-09026-00
Unavailable
20
PROTECTOR, FUEL TANK
8FA-24141-00-00
Unavailable
21
PROTECTOR, FUEL TANK
8FA-24141-10-00
Unavailable
22
INSULATOR, FUEL TANK 1
8FA-2416F-00-00
Unavailable
23
INSULATOR, FUEL TANK 1
8HF-2416F-00-00
Unavailable
24
INSULATOR, FUEL TANK 2
8HF-2416G-00-00
Unavailable
26
CLAMP
90464-09015-00
Unavailable
27
CLAMP(4HM)
90464-13194-00
Unavailable
28
CLAMP
90464-16010-00
Unavailable
29
CLIP (8A1)
90467-09026-00
Unavailable
30
NUT, NYLON
95717-08300-00
Unavailable
31
WASHER, PLATE
90201-08053-00
Unavailable
