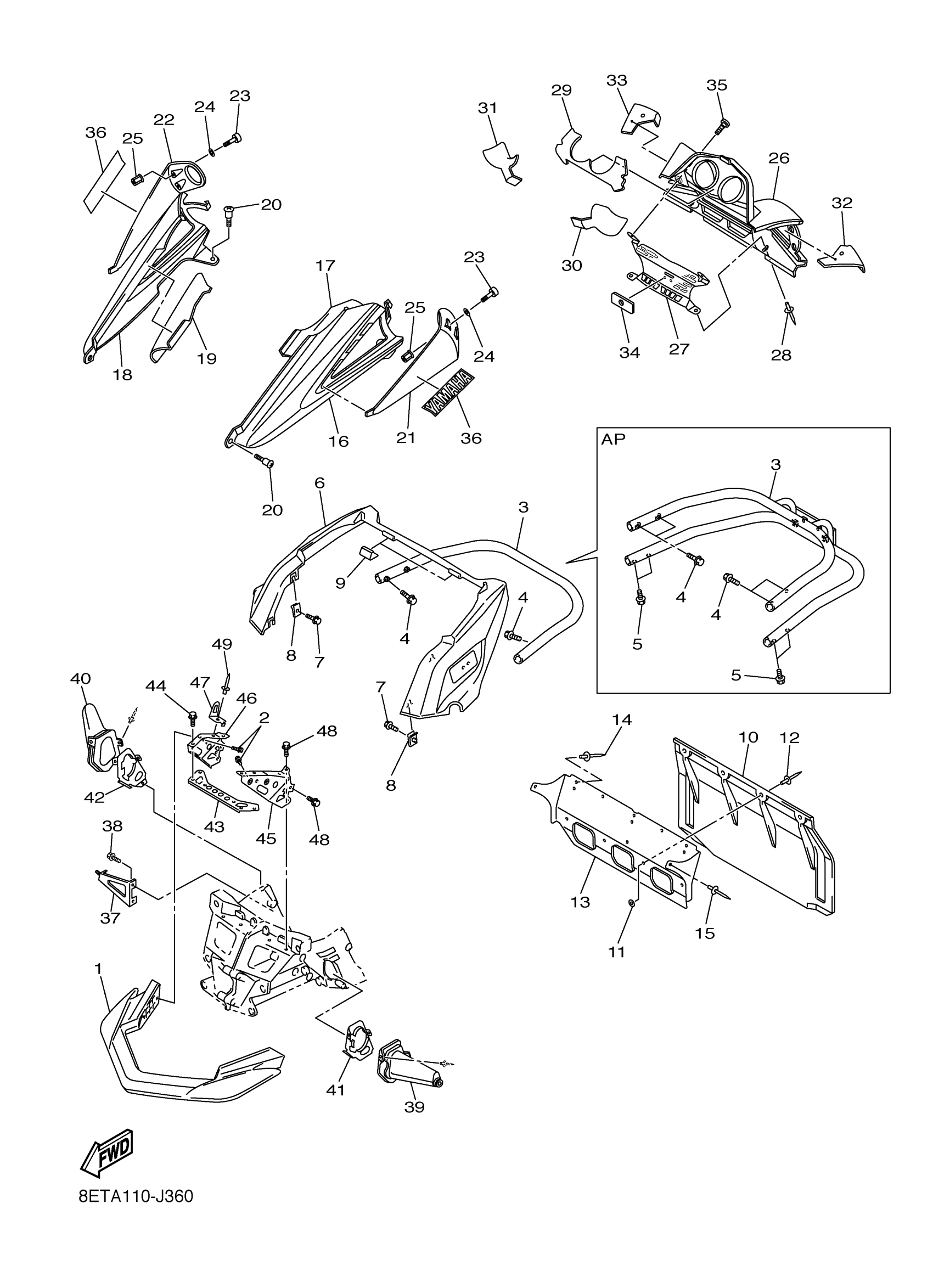

Yamaha RST90AS (RS VENTURE) 8ETB 2011 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$250.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

BUMPER, REAR 1

8ET-77541-01-00

$284.99

3

BUMPER, REAR 1

8FA-77541-01-00

Unavailable

4

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

5

BOLT, FLANGE

95814-08016-00

$9.49

6

BUMPER, REAR 2

8FA-77542-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

NUT, SPRING(4ES)

90183-06069-00

Unavailable

9

TAPE 4

8FA-7717H-00-00

$1.25

10

FLAP

8GW-77595-00-00

Unavailable

11

WASHER, PLATE

90201-04027-00

$3.02

12

RIVET, BLIND

90267-47200-00

$2.75

13

STOPPER, FLAP

8GW-77596-01-00

Unavailable

14

RIVET, BLIND(3JB)

90267-48095-00

$9.49

15

RIVET, BLIND

90267-47195-00

Unavailable

16

PROTECTOR 1

8ES-77551-00-00

Unavailable

17

LINING, SHROUD 1

8ES-77261-01-00

Unavailable

18

PROTECTOR 2

8ES-77552-00-00

Unavailable

19

LINING, SHROUD 2

8ES-77262-01-00

Unavailable

20

SCREW, BINDING

90154-06009-00

Unavailable

21

PROTECTOR 4

8ES-77554-00-P8

Unavailable

22

PROTECTOR 5

8ES-77555-00-P8

Unavailable

23

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

24

WASHER, PLATE (680)

90201-06M07-00

Unavailable

25

NUT(1WT)

90179-06520-00

Unavailable

26

COVER, TAILLIGHT

8ES-84516-00-00

Unavailable

27

PROTECTOR 3

8ES-77553-00-00

Unavailable

28

RIVET, BLIND(8CH)

90267-47187-00

Unavailable

29

LINING, SHROUD 3

8ES-77263-00-00

Unavailable

30

LINING, SHROUD 4

8ES-77264-00-00

Unavailable

31

LINING, SHROUD 5

8ES-77265-00-00

Unavailable

32

LINING, SHROUD 6

8ES-77266-00-00

Unavailable

33

LINING, SHROUD 7

8ES-77267-00-00

Unavailable

34

LINING,SHROUD 8

8ES-77268-00-00

Unavailable

35

BOLT

90109-06220-00

Unavailable

36

EMBLEM, YAMAHA

99241-00120-00

Unavailable

37

BRACKET, OIL TANK 1

8ES-2193E-00-00

Unavailable

38

BOLT, FLANGE

95822-08014-00

Unavailable

39

COVER 1

8FU-2198F-01-00

Unavailable

40

COVER 3

8FU-2198J-01-00

Unavailable

41

PLATE, STRG BRACKET 1

8FU-2195E-01-00

Unavailable

42

PLATE, STRG BRACKET 2

8FU-2195F-01-00

Unavailable

43

BUMPER, FRONT 2

8FA-77512-00-00

Unavailable

44

BOLT, FLANGE

95817-06012-00

Unavailable

45

BRACKET, FRONT

8FA-21949-00-00

Unavailable

46

BRACKET, FRONT BUMPER

8FA-21959-00-00

Unavailable

47

STAY 1

8FA-77125-00-00

Unavailable

48

BOLT, FLANGE

95814-08016-00

$9.49

49

RIVET, BLIND

90267-47195-00

Unavailable
