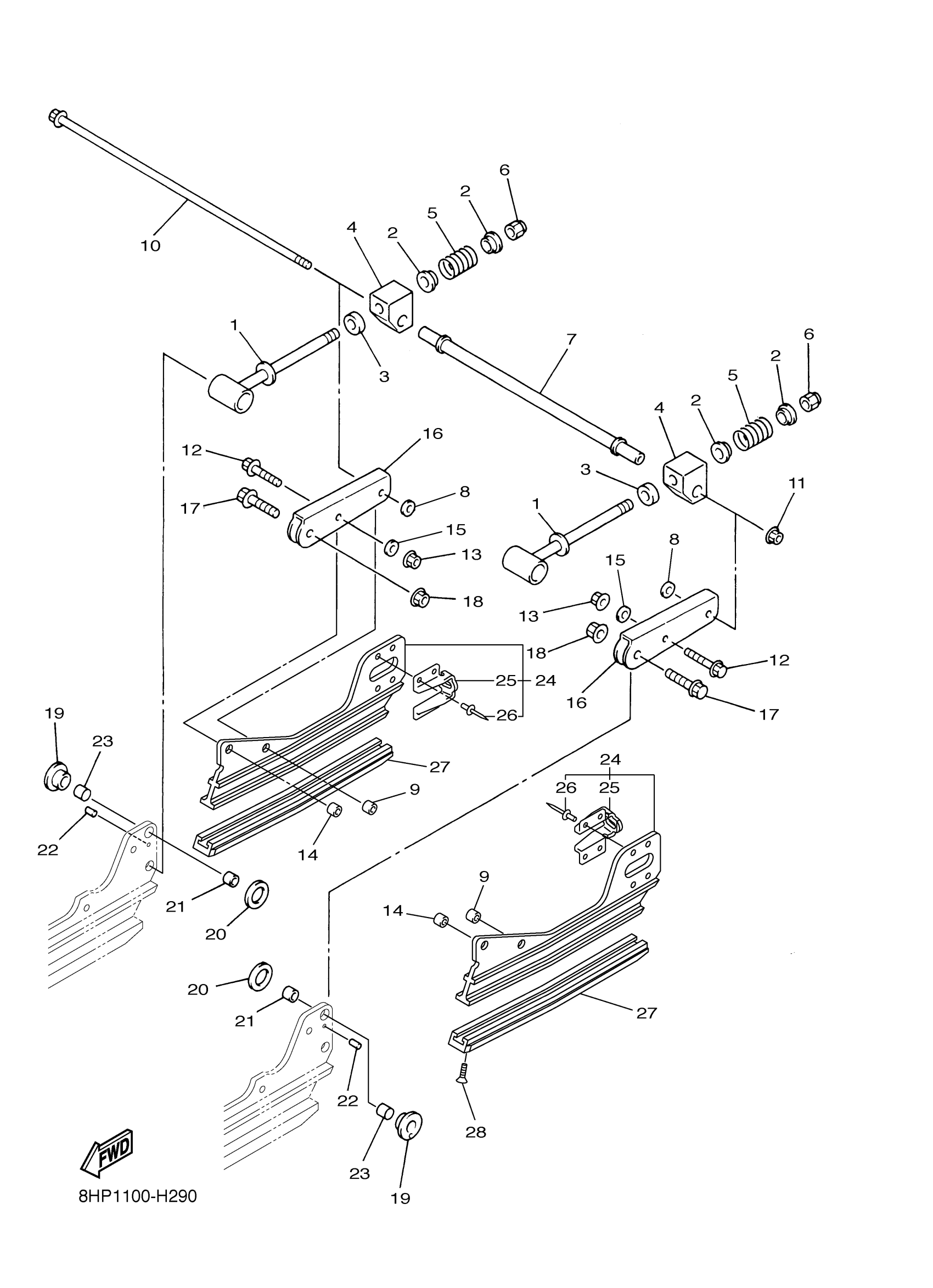

Yamaha RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

SHAFT, PIVOT

83R-47337-00-00

Unavailable

2

SEAT, SPRING 1

83R-23768-00-00

$5.30

3

SPRING

83R-47335-00-00

Unavailable

4

HOOK 1

83R-47446-00-00

$21.88

5

SPRING, COMPRESSION(83R)

90501-407E4-00

$8.91

6

NUT, NYLON

95717-12300-00

$5.67

7

COLLAR 2

8FM-47478-00-00

Unavailable

8

WASHER (1T1)

90201-08649-00

$5.86

9

COLLAR(3BN)

90387-082J1-00

$2.25

10

BOLT, FLANGE

90105-08069-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$6.62

12

BOLT, FLANGE

95817-08035-00

$6.22

13

NUT, SELF-LOCKING

95602-08200-00

$2.69

14

COLLAR(3BN)

90387-082J1-00

$2.25

15

WASHER (1T1)

90201-08649-00

$5.86

16

ARM, PIVOT 3

8FM-47333-00-00

Unavailable

17

BOLT, FLANGE

95817-10030-00

Unavailable

18

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

19

COLLAR

90387-1815A-00

Unavailable

20

WASHER, PLATE

90202-22238-00

Unavailable

21

COLLAR

90387-1014Y-00

Unavailable

22

PIN. SPRING(656)

91690-30008-00

Unavailable

23

BUSH, SOLID (22W)

90380-16109-00

Unavailable

24

FRAME, SLIDING

8FM-W4741-10-00

Unavailable

25

BRACKET

8DM-4741B-00-00

Unavailable

26

RIVET

8V0-47468-00-00

Unavailable

27

RUNNER,SLIDING 4

8FM-47424-00-XX

Unavailable

28

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable
