- RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018
TRACK SUSPENSION 1

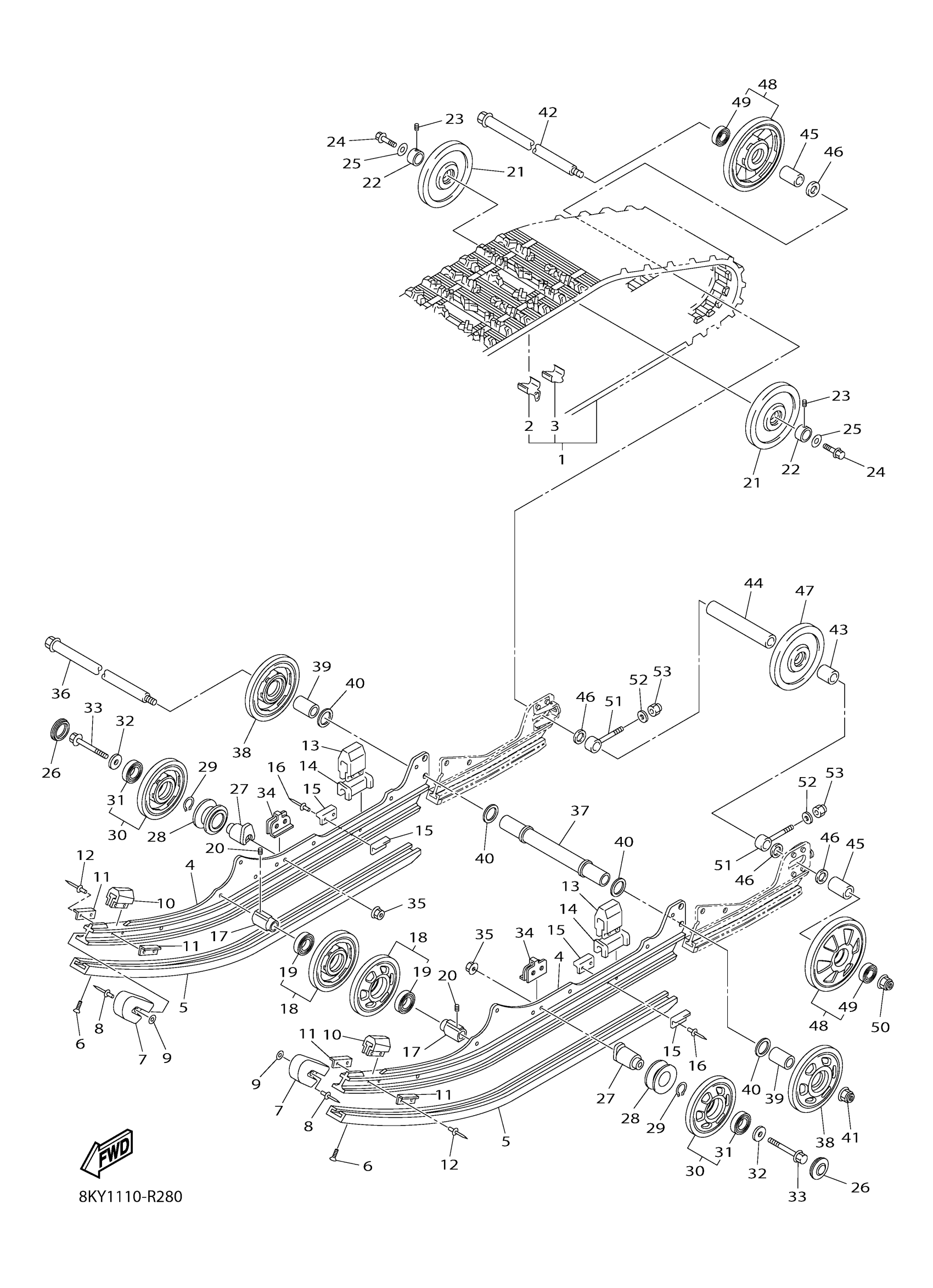

Yamaha RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FM-47110-20-00
Unavailable
2
METAL, SLIDE
8HR-47115-09-00
$16.99
3
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
4
FRAME, SLIDING
8FM-4741A-01-00
Unavailable
5
RUNNER,SLIDING 1
8FM-47421-00-XX
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8CM-47457-00-00
$16.49
14
SPACER
8CM-47341-00-00
$16.49
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
22
COLLAR 1
8ES-47365-00-00
Unavailable
23
BOLT, SET (8K2)
90113-06039-00
Unavailable
24
BOLT
90109-10032-00
Unavailable
25
WASHER, PLATE
90201-10039-00
Unavailable
26
CAP, WHEEL
8HF-47317-00-00
Unavailable
27
BRACKET 7
8ES-47419-10-00
Unavailable
28
HOOK 1
8ET-47446-00-00
Unavailable
29
CIRCLIP(6U2)
93410-35M10-00
Unavailable
30
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
31
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
32
WASHER, PLATE
90201-10038-00
Unavailable
33
BOLT, FLANGE
95812-10080-00
Unavailable
34
WASHER
8HP-47384-00-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
37
COLLAR 1
8FM-47469-00-00
Unavailable
38
SUSPENSION WHEEL ASSY
8HP-47310-10-00
Unavailable
39
COLLAR
90387-20019-00
Unavailable
40
WASHER, PLATE
90201-20022-00
Unavailable
41
NUT, U FLANGE
95602-14200-00
Unavailable
42
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
43
COLLAR
90387-20015-00
Unavailable
44
COLLAR
90387-20016-00
Unavailable
45
COLLAR
90387-20019-00
Unavailable
46
WASHER, PLATE
90201-20022-00
Unavailable
47
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
48
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
49
BEARING(8AB)
93306-00444-00
Unavailable
50
NUT, U FLANGE
95602-14200-00
Unavailable
51
COLLAR 3
8DM-47479-00-00
Unavailable
52
WASHER, PLATE
92990-10600-00
Unavailable
53
NUT, NYLON
95707-10300-00
Unavailable
