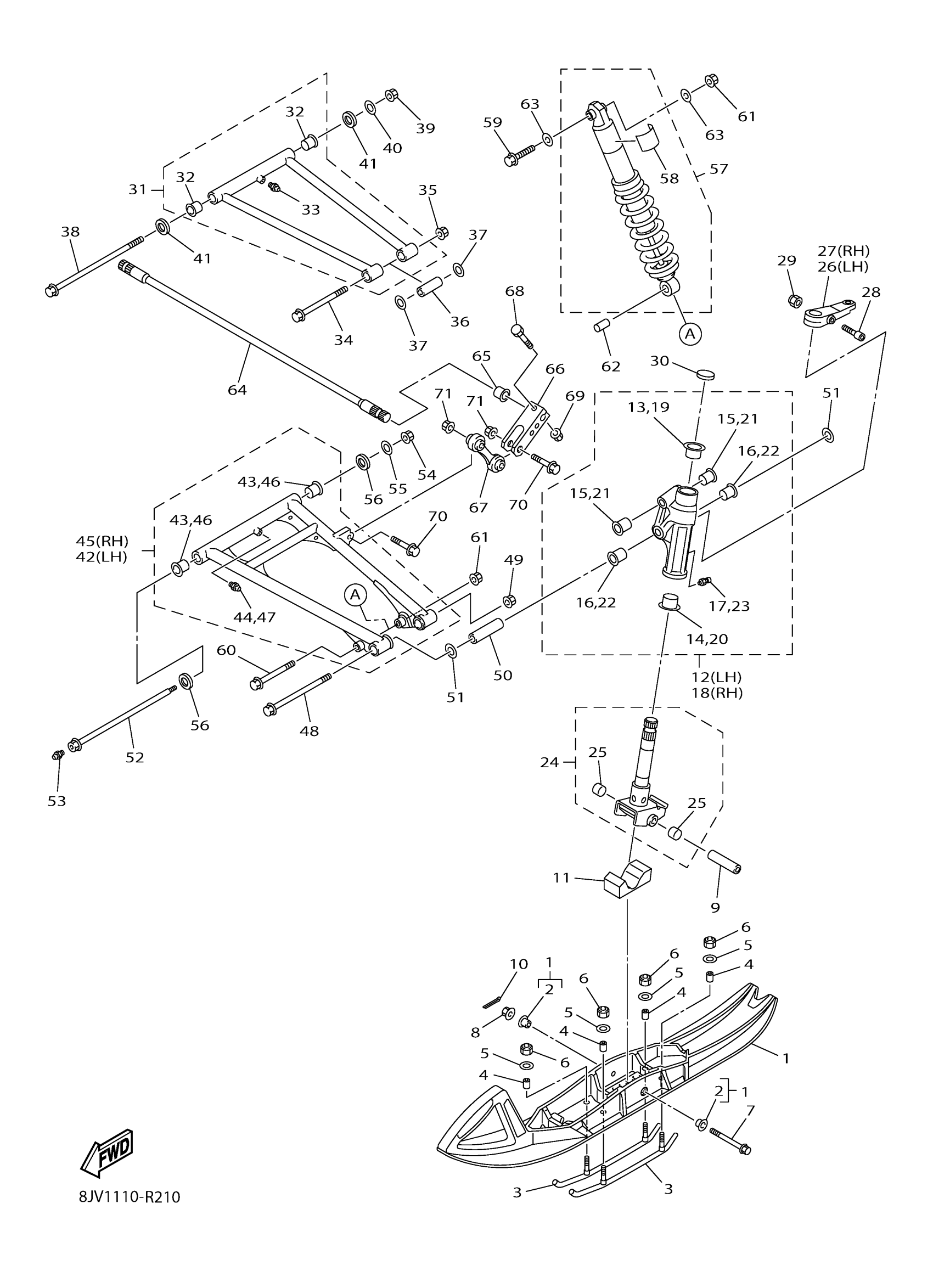

Yamaha RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018 SKI Diagram
#
1
SKI 1
8KM-F3711-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
RUNNER 1
8KM-F3731-00-00
Unavailable
4
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
5
WASHER, PLATE
90201-08053-00
$5.60
6
NUT, NYLON
95717-08300-00
$2.70
7
BOLT, FLANGE
90105-10070-00
$12.49
8
NUT, S/L FLANGE
95602-10200-00
$4.82
9
COLLAR
90387-1012H-00
$24.99
10
PIN, COTTER
91490-20025-00
$1.99
11
STOPPER 1
8HG-23743-00-00
$28.99
12
STEERING KNUCKLE ASSY (LEFT)
8HG-23501-00-00
$381.99
13
BUSH, SOLID
90381-25115-00
$9.49
14
BUSH, SOLID
90381-32001-00
$14.99
15
BUSH, SOLID
90381-15N50-00
$7.49
16
BUSH, SOLID
90381-18N51-00
Unavailable
17
NIPPLE, GREASE
93700-06M03-00
Unavailable
18
STEERING KNUCKLE ASSY (RIGHT)
8HG-23502-00-00
Unavailable
19
BUSH, SOLID
90381-25115-00
$9.49
20
BUSH, SOLID
90381-32001-00
$14.99
21
BUSH, SOLID
90381-15N50-00
$7.49
22
BUSH, SOLID
90381-18N51-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
COLUMN, SKI ASSY
8HG-23803-00-00
Unavailable
25
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
26
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
27
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
29
NUT, SELF-LOCKING
95602-08200-00
Unavailable
30
CAP, CASE
3YK-22472-40-00
Unavailable
31
FRONT UPPER ARM COMP. (LEFT)
8HG-23540-30-00
Unavailable
32
BUSH, SOLID
90381-15N50-00
$7.49
33
NIPPLE, GREASE
93700-06M03-00
Unavailable
34
BOLT, FLANGE
90105-10230-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
$4.82
36
COLLAR
90387-10099-00
Unavailable
37
WASHER, PLATE
90201-10052-00
Unavailable
38
BOLT
90109-10056-00
Unavailable
39
NUT, S/L FLANGE
95602-10200-00
$4.82
40
WASHER, PLATE
90201-10052-00
Unavailable
41
WASHER
90209-15N50-00
Unavailable
42
FRONT LOWER ARM COMP. (LEFT)
8HG-23570-30-00
Unavailable
43
BUSH, SOLID
90381-16N51-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
FRONT LOWER ARM COMP. (RIGHT)
8HG-23580-30-00
Unavailable
46
BUSH, SOLID
90381-16N51-00
Unavailable
47
NIPPLE, GREASE
93700-06M03-00
Unavailable
48
BOLT, FLANGE
90105-12078-00
Unavailable
49
NUT, SELF-LOCKING
95602-12200-00
Unavailable
50
COLLAR
90387-12054-00
Unavailable
51
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
52
BOLT, UNION
90401-10045-00
Unavailable
53
NIPPLE, GREASE
93700-06M03-00
Unavailable
54
NUT, S/L FLANGE
95602-10200-00
$4.82
55
WASHER, PLATE
90201-10052-00
Unavailable
56
WASHER
90209-15N50-00
Unavailable
57
ABSORBER ASSY 1
8KL-2376A-00-00
Unavailable
58
LABEL, WARNING
4AA-22259-60-00
Unavailable
59
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
60
BOLT, FLANGE
90105-10288-00
Unavailable
61
NUT, S/L FLANGE
95602-10200-00
$4.82
62
COLLAR
90387-10N59-00
Unavailable
63
WASHER, PLATE
90201-10052-00
Unavailable
64
BAR, STABILIZER FRONT
8FG-2386E-10-00
Unavailable
65
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
66
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
67
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
68
BOLT
90101-06046-00
Unavailable
69
NUT, U FLANGE
95604-06200-00
Unavailable
70
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
71
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
