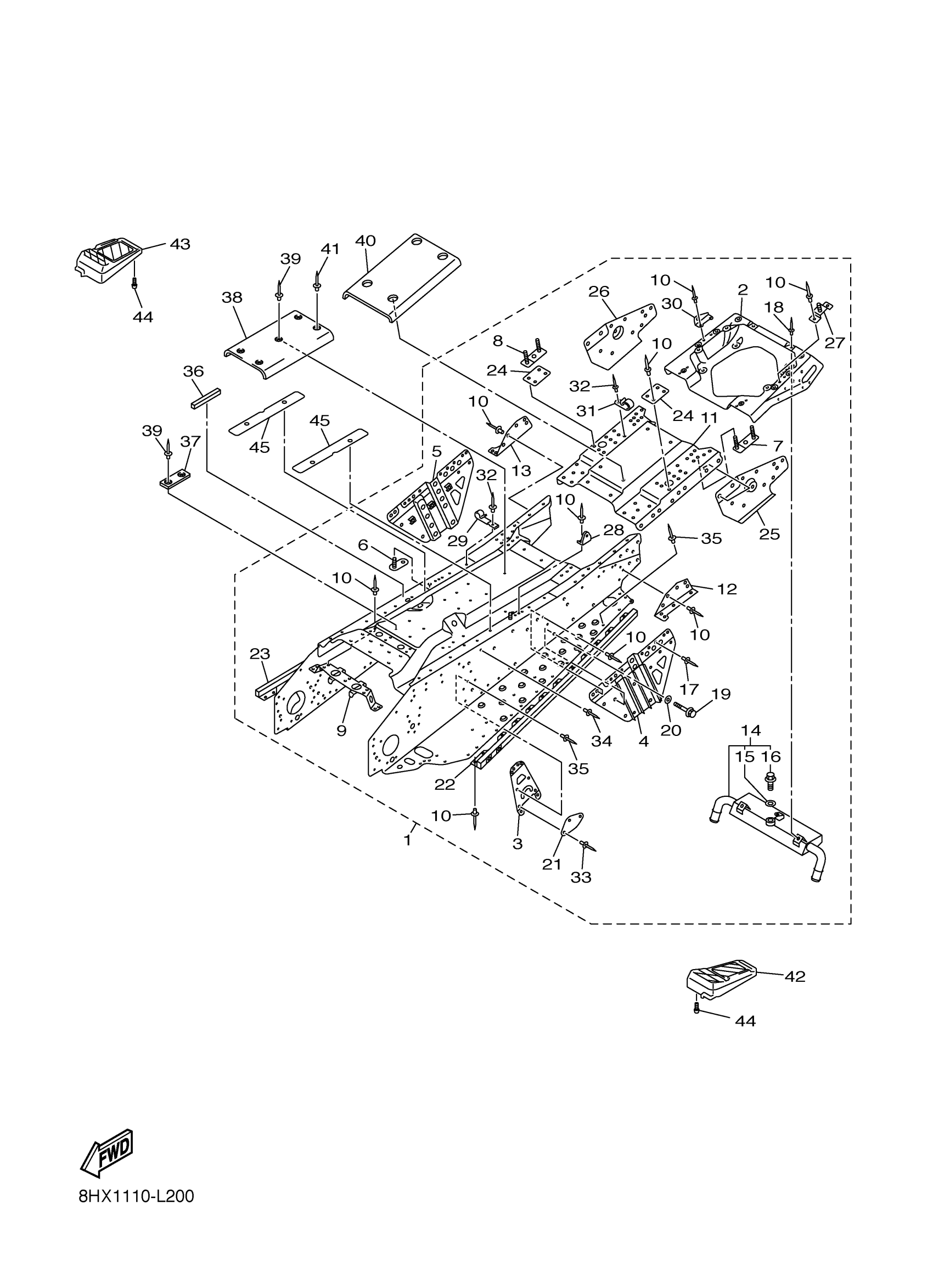

Yamaha RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8HF-21950-01-00
Unavailable
2
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
3
BRACKET, MAIN TRACK 1
8HF-21943-00-00
$18.99
4
BRACKET, RR.TRACK SUSPENTION 1
8HF-21944-00-00
Unavailable
5
BRACKET, RR.TRACK SUSPENTION 2
8HF-21954-00-00
Unavailable
6
BRACKET, FUEL TANK 1
8CR-2194N-00-00
$3.22
7
BRACKET 1
8ET-2194X-00-00
Unavailable
8
BRACKET 2
8ET-2195X-00-00
Unavailable
9
PROTECTOR, MUFFLER
8ES-2194H-00-00
Unavailable
10
RIVET, BLIND
90267-47195-00
$3.88
11
PANEL, SUB FRAME 5
8HF-21916-00-00
Unavailable
12
PATCH 3
8ET-21963-00-00
$14.49
13
PATCH 4
8ET-21964-00-00
$14.49
14
HEAT EXCHANGER ASSY 4
8ET-1241A-02-00
$339.99
15
WASHER, SEAL (7G5)
90210-06006-00
$9.49
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
RIVET, BLIND
90267-47197-00
Unavailable
18
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
19
BOLT, FLANGE
95814-10020-00
Unavailable
20
WASHER, PLATE
90201-10064-00
Unavailable
21
BRACKET, MAIN TRACK 2
8ET-21953-00-00
Unavailable
22
REINFORCEMENT, FOOTREST 1
8ET-21926-00-00
Unavailable
23
REINFORCEMENT, FOOTREST 2
8ET-21936-00-00
Unavailable
24
BRACKET 3
8HF-2196F-00-00
Unavailable
25
PATCH 9
8ET-21989-00-00
Unavailable
26
PATCH 10
8ET-21997-00-00
Unavailable
27
BRACKET 4
8ET-2196G-00-00
Unavailable
28
BRACKET 1
8HF-2194X-00-00
Unavailable
29
CLAMP
90462-08081-00
Unavailable
30
BRACKET 4
8HF-2196G-00-00
Unavailable
31
CLAMP
90462-06022-00
Unavailable
32
RIVET, BLIND
90267-48023-00
Unavailable
33
RIVET, BLIND
90267-48016-00
Unavailable
34
RIVET, BLIND
90267-48023-00
Unavailable
35
RIVET, BLIND
90267-48177-00
Unavailable
36
DAMPER
8HF-84553-00-00
Unavailable
37
SPACER
8FA-21998-00-00
Unavailable
38
SHIELD, HEAT
8FG-23892-00-00
Unavailable
39
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
40
SHIELD, HEAT
8ET-23892-00-00
Unavailable
41
RIVET, BLIND
90267-47004-00
Unavailable
42
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
43
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
44
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
45
DAMPER 1
8HG-2214F-00-00
Unavailable
