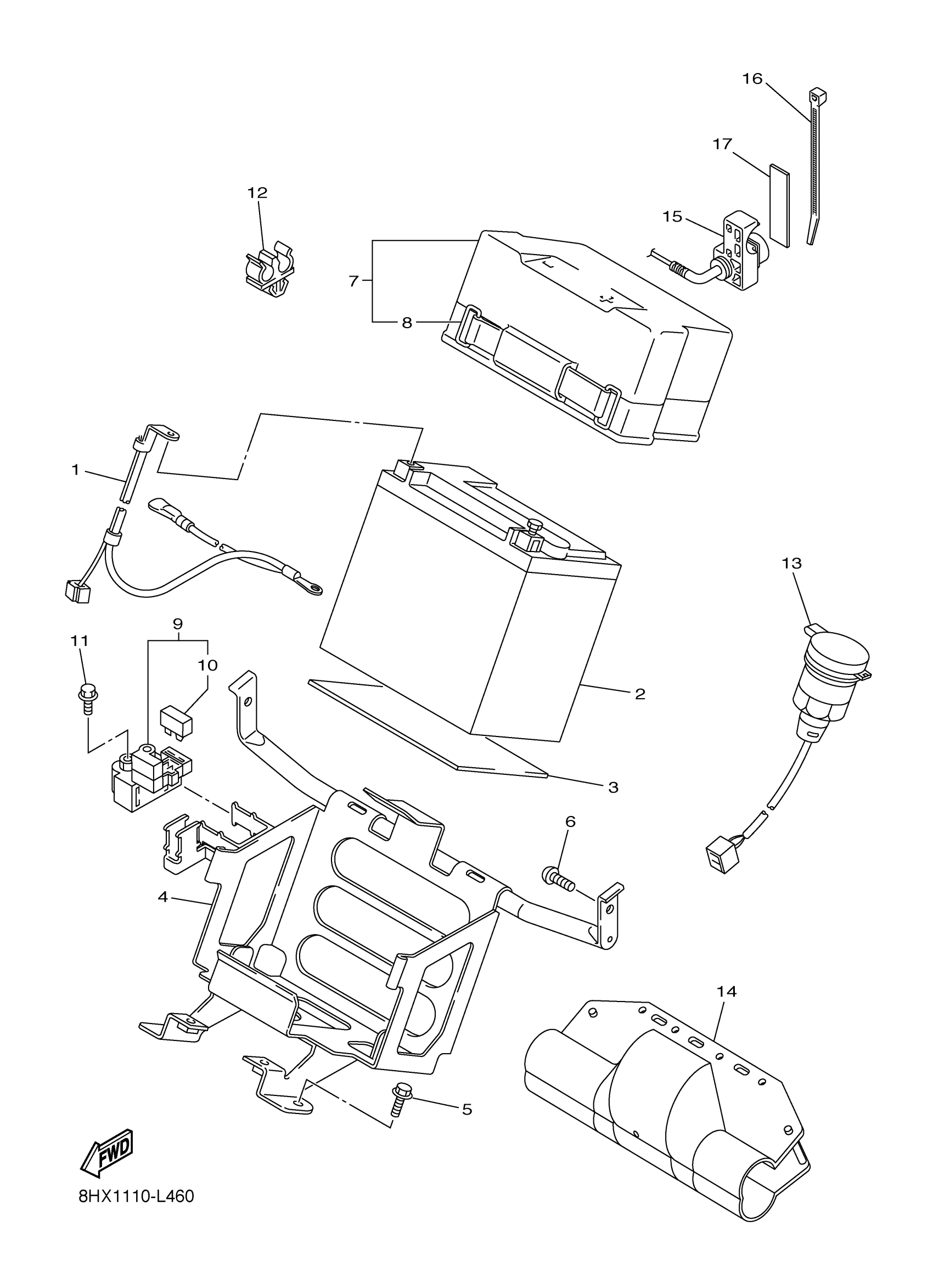

Yamaha RST1NTFYJL (RS VENTURE TF BAT) 8KY3 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8HV-82116-00-00

Unavailable

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

3

SEAT, BATTERY

8FA-82122-00-00

Unavailable

4

BRACKET, BATTERY

8HV-2199G-00-00

Unavailable

5

BOLT, FLANGE

95814-08016-00

$9.49

6

BOLT, BUTTON HEAD

92012-08020-00

$7.49

7

COVER, BATTERY

8FA-82129-00-00

$41.99

8

BAND, BATTERY

8DM-82131-10-00

$16.49

9

STARTER RELAY ASSY

8HG-81940-00-00

$127.99

10

FUSE (10A)

42X-82151-00-00

$4.32

11

BOLT, FLANGE

95022-06008-00

$8.49

12

CLAMP(87A)

90464-08126-00

$1.54

13

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

14

COVER

8FP-8252U-00-00

Unavailable

15

TERMINAL COMP.

8HK-8254B-00-00

Unavailable

16

CLAMP(3XW)

90464-35132-00

Unavailable

17

DAMPER

8HF-84527-00-00

Unavailable
