- RST1NTFNW (RS VENTURE TF) 8JVC 2022
TRACK SUSPENSION 1

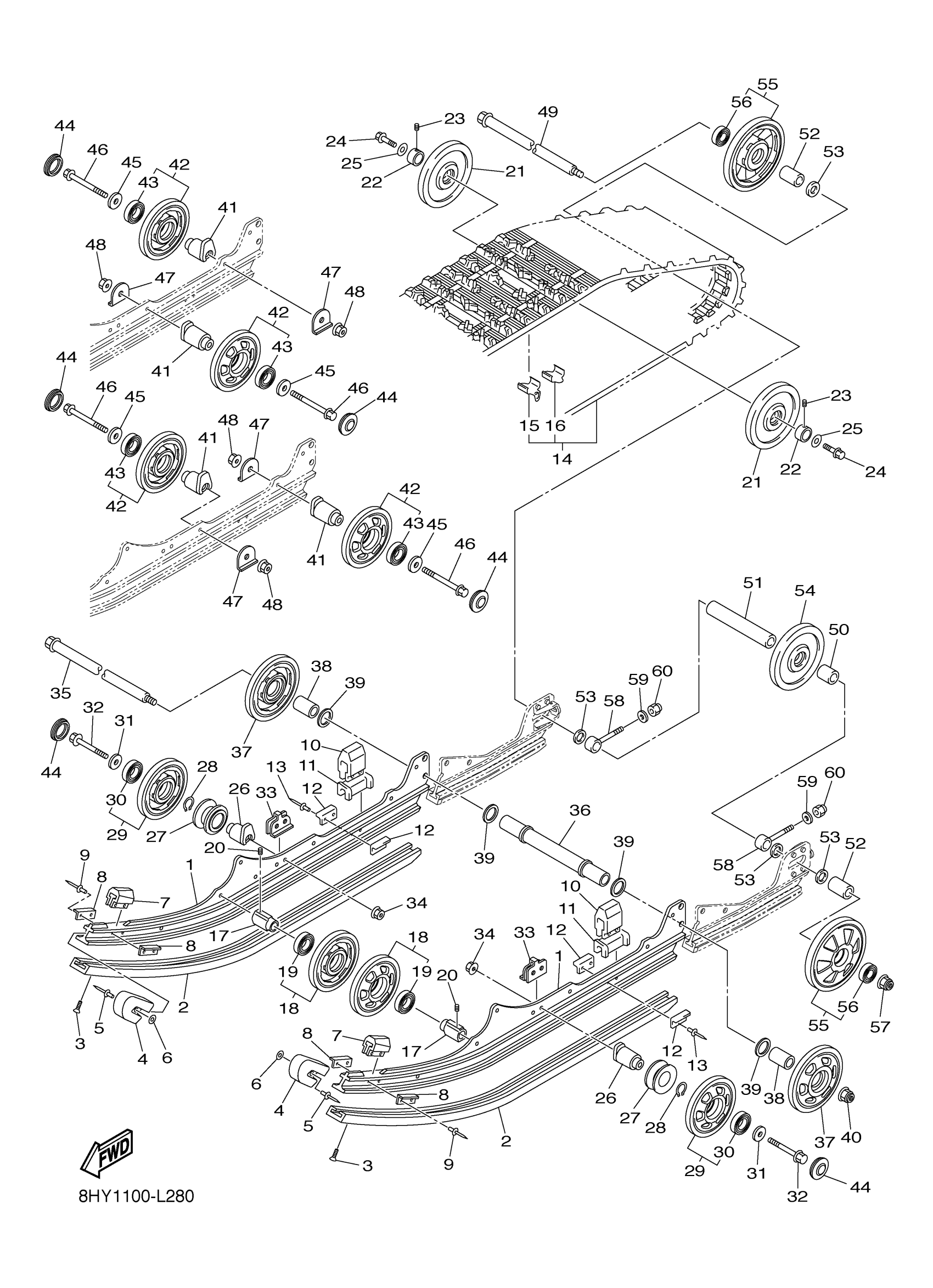

Yamaha RST1NTFNW (RS VENTURE TF) 8JVC 2022 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8FM-4741A-01-00
Unavailable
2
RUNNER,SLIDING 1
8FM-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
5
RIVET BLIND
90267-48194-00
$3.28
6
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
7
DAMPER 1
8ES-47456-00-00
$6.99
8
PLATE, DAMPER
8K2-47458-01-00
$4.77
9
RIVET, BLIND
90267-48199-00
$3.76
10
DAMPER 2
8CM-47457-00-00
$16.49
11
SPACER
8CM-47341-00-00
$16.49
12
PLATE, DAMPER
8AX-47458-00-00
$10.99
13
RIVET, BLIND
90267-48199-00
$3.76
14
TRACK ASSY
8FM-47110-20-00
Unavailable
15
METAL, SLIDE
8HR-47115-09-00
$16.99
16
PLATE, REINFORCEMENT
8HR-47113-09-00
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
22
COLLAR 1
8ES-47365-00-00
Unavailable
23
BOLT, SET (8K2)
90113-06039-00
Unavailable
24
BOLT
90109-10032-00
Unavailable
25
WASHER, PLATE
90201-10039-00
Unavailable
26
BRACKET 7
8ES-47419-10-00
Unavailable
27
HOOK 1
8ET-47446-00-00
Unavailable
28
CIRCLIP(6U2)
93410-35M10-00
Unavailable
29
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
30
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
31
WASHER, PLATE
90201-10038-00
Unavailable
32
BOLT, FLANGE
95812-10080-00
Unavailable
33
WASHER
8HP-47384-00-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
36
COLLAR 1
8FM-47469-00-00
Unavailable
37
SUSPENSION WHEEL ASSY
8HP-47310-10-00
Unavailable
38
COLLAR
90387-20019-00
Unavailable
39
WASHER, PLATE
90201-20022-00
Unavailable
40
NUT, U FLANGE
95602-14200-00
Unavailable
41
BRACKET 7
8ES-47419-00-00
Unavailable
42
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
43
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
44
CAP, WHEEL
8HF-47317-00-00
Unavailable
45
WASHER, PLATE
90201-10038-00
Unavailable
46
BOLT, FLANGE
95812-10080-00
Unavailable
47
WASHER, CLAW
90214-10003-00
Unavailable
48
NUT, S/L FLANGE
95602-10200-00
Unavailable
49
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
50
COLLAR
90387-20015-00
Unavailable
51
COLLAR
90387-20016-00
Unavailable
52
COLLAR
90387-20019-00
Unavailable
53
WASHER, PLATE
90201-20022-00
Unavailable
54
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
55
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
56
BEARING(8AB)
93306-00444-00
Unavailable
57
NUT, U FLANGE
95602-14200-00
Unavailable
58
COLLAR 3
8DM-47479-00-00
Unavailable
59
WASHER, PLATE
92990-10600-00
Unavailable
60
NUT, NYLON
95707-10300-00
Unavailable
