Description

Price

1

JOINT

8HF-13595-00-00

$59.99

2

HOSE CLAMP ASSY

90450-60004-00

$16.99

3

SILENCER, INTAKE 1

8HF-14431-00-00

Unavailable

4

SILENCER, INTAKE 2

8JU-14441-00-00

Unavailable

5

PLATE, ELEMENT

8HF-14472-00-00

Unavailable

6

ELEMENT, AIR CLEANER

8HF-14451-00-00

$37.99

7

HOOK

8FA-14436-00-00

$6.99

8

DAMPER 1

8HF-14425-00-00

$2.55

9

SEAL

8HF-14452-00-00

$14.99

10

PIPE

8GM-14419-00-00

Unavailable

11

JOINT, AIR CLEANER 1

8HF-14453-01-00

Unavailable

12

HOSE CLAMP ASSY

90450-56010-00

Unavailable

13

HOSE CLAMP ASSY

90450-56007-00

$13.99

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

15

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

16

PIPE, JOINT

8GC-14485-00-00

Unavailable

17

SCREW, TRUSS TAP.

97707-50025-00

Unavailable

18

PIPE, OIL TANK BREATHER

8GM-21745-00-00

Unavailable

19

CLIP

90467-22002-00

Unavailable

20

CLIP(34X)

90467-22097-00

Unavailable

21

LABEL, CAUTION

8FA-2389C-E0-00

Unavailable

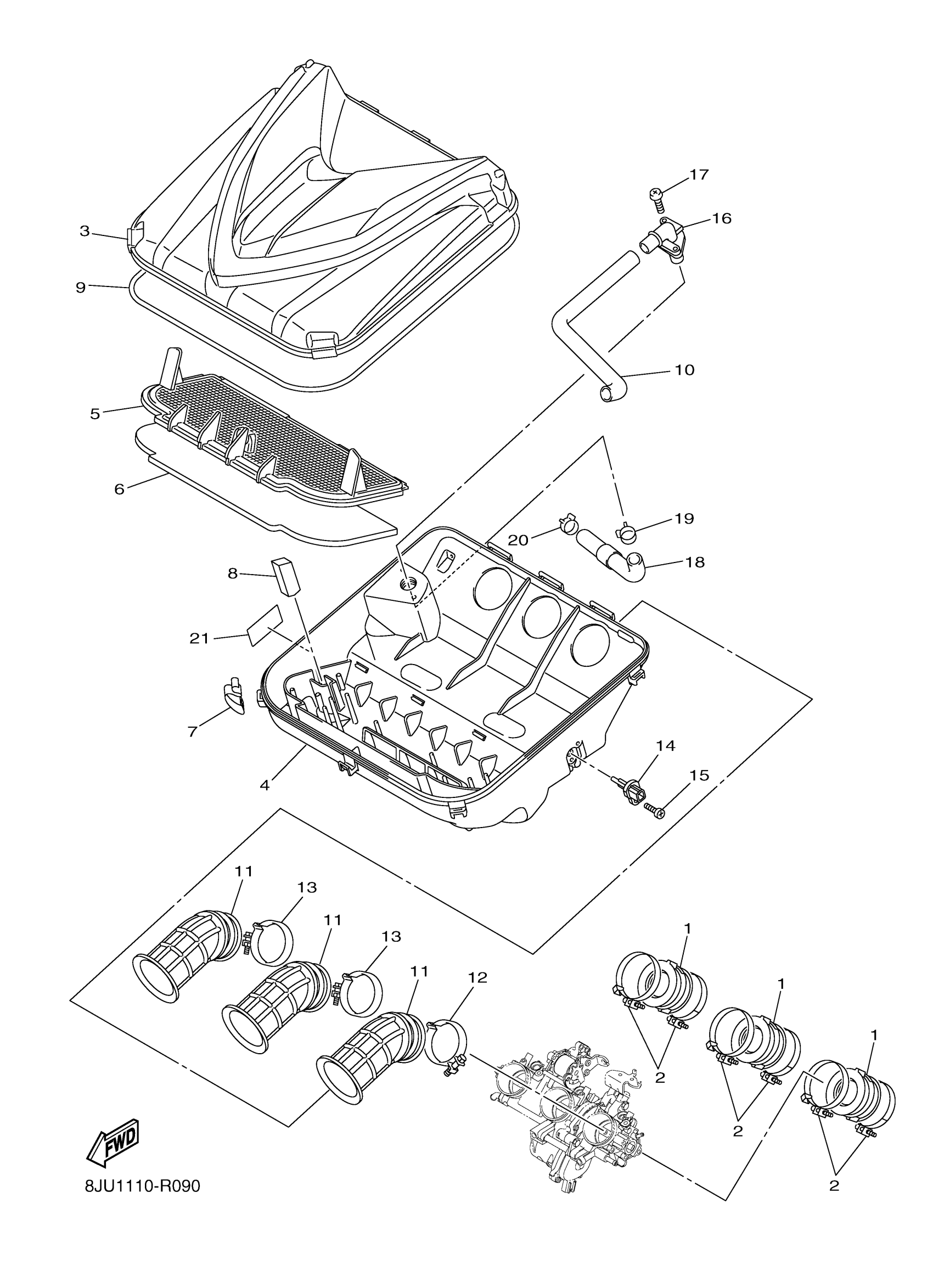

Yamaha RST1NTFNW (RS VENTURE TF) 8JVC 2022 INTAKE Diagram

JOINT

HOSE CLAMP ASSY

SILENCER, INTAKE 1

SILENCER, INTAKE 2

PLATE, ELEMENT

ELEMENT, AIR CLEANER

HOOK

DAMPER 1

SEAL

PIPE

JOINT, AIR CLEANER 1

HOSE CLAMP ASSY

HOSE CLAMP ASSY

SENSOR, AIR TEMPERATURE

SCREW, PANHEAD TAPPING

PIPE, JOINT

SCREW, TRUSS TAP.

PIPE, OIL TANK BREATHER

CLIP

CLIP(34X)

LABEL, CAUTION
