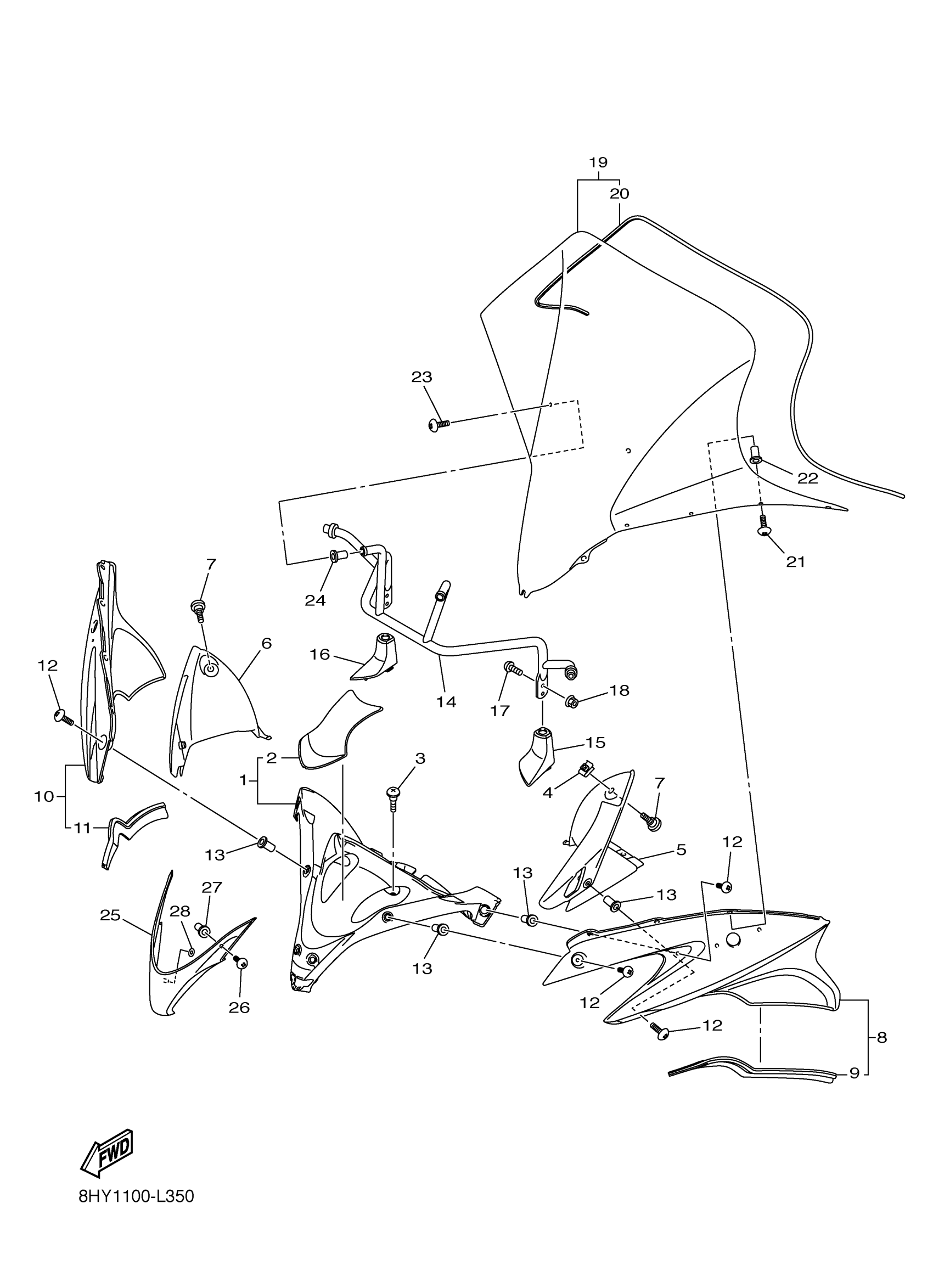

Yamaha RST1NTFLL (RS VENTURE TF) 8JV9 2020 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT ASSY

8FP-Y7725-00-00

$199.15

2

DAMPER 1

8HF-77198-00-00

Unavailable

3

SCREW, BINDING

90154-06009-00

$2.80

4

NUT, SPRING

90183-06100-00

$7.35

5

PLATE 1

8FP-77185-00-00

$42.97

6

PLATE 2

8FP-77186-00-00

$45.51

7

SCREW, BINDING

90154-06009-00

$2.80

8

FAIRING 2

8HF-K723A-00-00

Unavailable

9

. TRIM 1

8HF-K7165-00-00

Unavailable

10

FAIRING 3

8HF-K723B-00-00

Unavailable

11

. TRIM 2

8HF-K7166-00-00

Unavailable

12

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.66

13

NUT(1KT)

90179-05523-00

$4.33

14

STAY 1

8HX-77125-00-00

$377.21

15

GROMMET 1

8HF-77431-00-00

Unavailable

16

GROMMET 2

8HF-77432-00-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

18

NUT, U FLANGE

95604-06200-00

Unavailable

19

WINDSHIELD COMP.

8HF-K7210-00-00

Unavailable

20

TRIM, UPPER

8HF-K7213-00-00

Unavailable

21

SCREW(3YF)

90149-05299-00

Unavailable

22

NUT(1KT)

90179-05523-00

$4.33

23

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.66

24

NUT

90179-05003-00

Unavailable

25

FAIRING

8HF-K7231-00-00

Unavailable

26

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.66

27

NUT(1KT)

90179-05523-00

$4.33

28

NUT, SPRING

90183-06071-00

$0.50
