Description

Price

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-30-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$32.99

3

STOPPER, HOLDER

8BV-17656-00-00

$22.99

4

SCREW, BINDING

98907-06016-00

$9.49

5

SECONDARY SLIDING SHEAVE

8BU-17670-30-00

$239.99

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

7

BOLT, STUD 3

95617-08630-00

$4.99

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

9

WASHER, PLATE (371)

90201-06431-00

$5.60

9

WASHER, PLATE (22K)

90201-061H1-00

$4.72

10

NUT(8BN)

90179-08655-00

$10.49

11

SEAT SPRING SET

8BV-17604-91-00

Unavailable

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

13

SPRING, TORSION

90508-60016-00

$58.99

14

SHAFT, SECONDARY

8HF-17681-01-00

$540.99

15

HOUSING, BEARING

8FN-47631-00-00

Unavailable

16

BEARING

93306-30579-00

Unavailable

17

CIRCLIP(MF1)

99009-62500-00

Unavailable

18

CIRCLIP(JF7)

99009-25400-00

Unavailable

19

SCREW

90149-08034-00

Unavailable

20

WASHER, PLATE (888)

90201-25526-00

Unavailable

21

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

21

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

22

COLLAR

90387-14019-00

Unavailable

23

WASHER, PLATE

90201-14022-00

Unavailable

24

BOLT, WASHER BASED(8CJ)

90105-14766-00

Unavailable

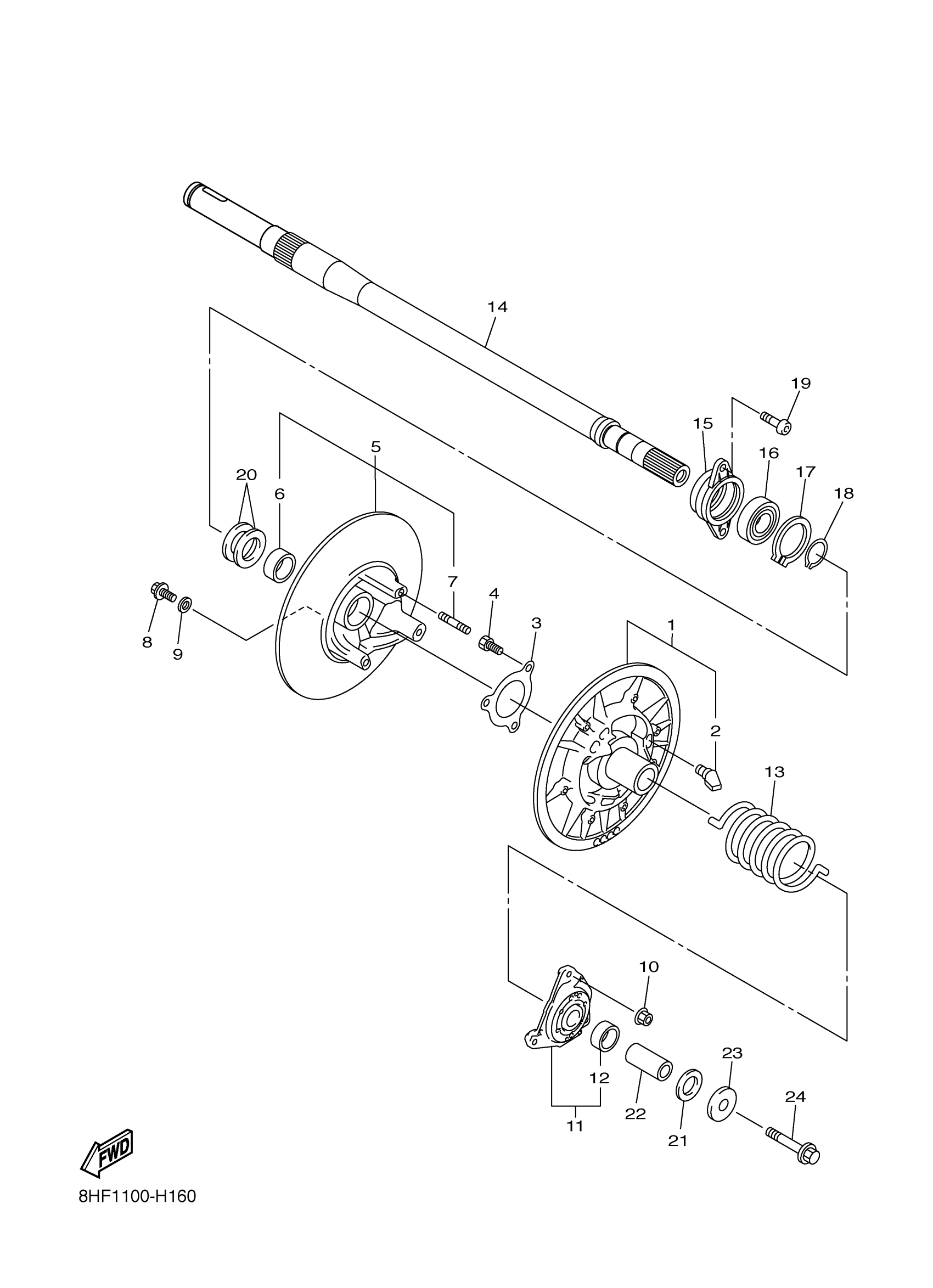

Yamaha RST1NTFLL (RS VENTURE TF) 8JV9 2020 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SHOE, RAMP

STOPPER, HOLDER

SCREW, BINDING

SECONDARY SLIDING SHEAVE

BUSH, BIMETAL FORMED(8BN)

BOLT, STUD 3

BOLT, WASHER BASED(8BN)

WASHER, PLATE (371)

WASHER, PLATE (22K)

NUT(8BN)

SEAT SPRING SET

BUSH, BIMETAL FORMED(8BN)

SPRING, TORSION

SHAFT, SECONDARY

HOUSING, BEARING

BEARING

CIRCLIP(MF1)

CIRCLIP(JF7)

SCREW

WASHER, PLATE (888)

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

COLLAR

WASHER, PLATE

BOLT, WASHER BASED(8CJ)
