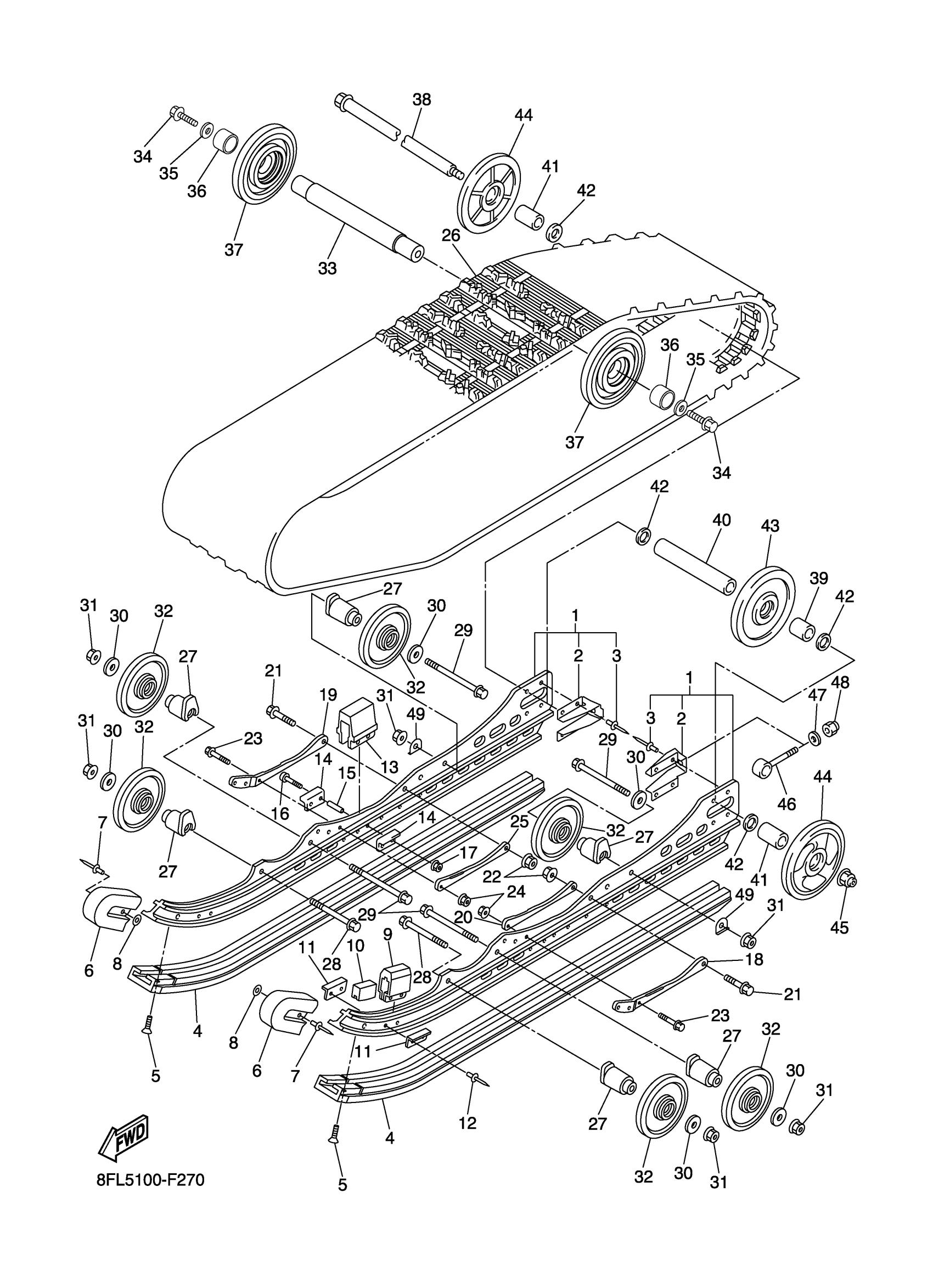

Yamaha RSG90W (RAGE) 8FL5 2007 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8FT-W4741-00-00

$403.99

2

BRACKET

8DM-4741B-00-00

$45.99

3

RIVET

8V0-47468-00-00

$10.49

4

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

Unavailable

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

7

RIVET BLIND

90267-48194-00

$3.28

8

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

9

DAMPER 2

8AC-47457-00-00

$18.49

10

SPACER

8FR-47341-00-00

$13.99

11

PLATE, DAMPER

8AX-47458-00-00

$10.99

12

RIVET, BLIND

90267-48199-00

$3.76

13

DAMPER 2

8FT-47457-00-00

Unavailable

14

PLATE, DAMPER

8FT-47458-00-00

Unavailable

15

COLLAR

90387-05027-00

$5.60

16

BOLT, HEXAGON SOCKET HEAD

90110-05020-00

Unavailable

17

NUT, S/L FLANGE

95607-05200-00

Unavailable

18

FRAME, SLIDING C

8FT-4741C-00-00

Unavailable

19

FRAME, SLIDING D

8FT-4741D-00-00

Unavailable

20

FRAME, SLIDING E

8FT-4741E-00-00

Unavailable

21

BOLT, FLANGE

95817-10030-00

Unavailable

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

23

BOLT, FLANGE

95817-06030-00

Unavailable

24

NUT,SELF-LOCKING

95607-06200-00

Unavailable

25

FRAME, SLIDING F

8FT-4741F-00-00

Unavailable

26

TRACK ASSY

8FG-47110-20-00

Unavailable

27

BRACKET 7

8ES-47419-20-00

Unavailable

28

BOLT, WASHER BASED(4HM)

90105-10737-00

Unavailable

29

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

30

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

31

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

32

SUSPENSION WHEEL ASSY

8ES-47310-41-00

Unavailable

33

SHAFT 6

8FT-47488-00-00

Unavailable

34

BOLT, FLANGE

90105-10145-00

Unavailable

35

WASHER, PLATE

90201-10039-00

Unavailable

36

COLLAR

90387-25005-00

Unavailable

37

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

38

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

39

COLLAR

90387-20015-00

Unavailable

40

COLLAR

90387-20016-00

Unavailable

41

COLLAR

90387-20019-00

Unavailable

42

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

43

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

44

WEIGHT

8EK-47550-11-00

Unavailable

45

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

46

COLLAR 3

8DM-47479-00-00

Unavailable

47

WASHER(6TA)

92907-10600-00

Unavailable

48

NUT, NYLON

95707-10300-00

Unavailable

49

WASHER, CLAW

90214-10004-00

Unavailable
