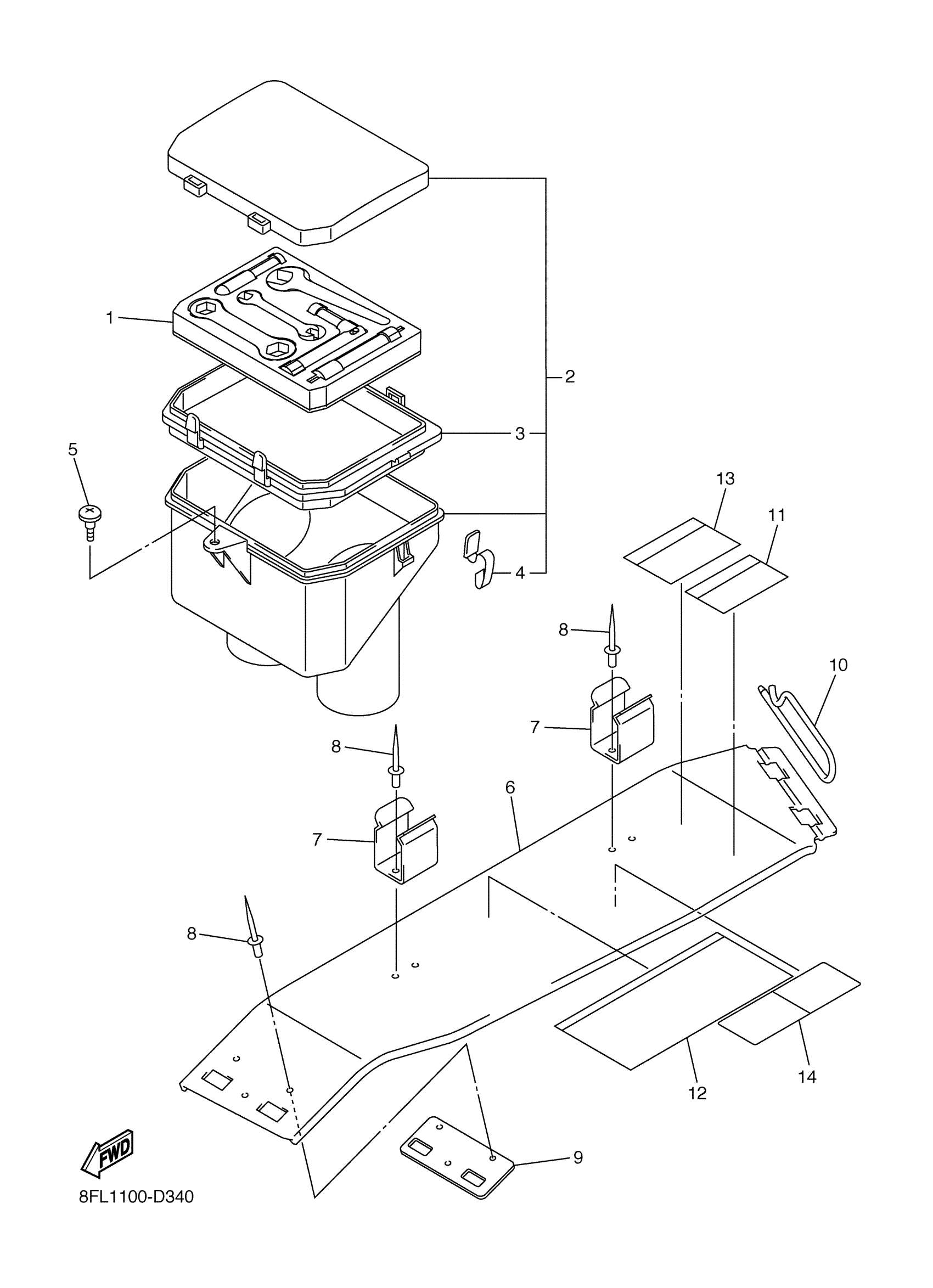

Yamaha RSG90K (RS Rage) 8FL1 2005 GUARD LUGGAGE BOX Diagram

#

Description
Price

1

TOOL KIT

8FA-28100-00-00

Unavailable

2

LUGGAGE BOX ASSY

8FA-77390-00-00

$130.99

3

BOX, TOOL

8FA-77381-00-00

Unavailable

4

HOOK

8FA-2814E-00-00

$10.99

5

SCREW, BINDING

90154-06009-00

$4.61

6

GUARD, DRIVE

8FA-77311-02-00

Unavailable

7

STAY, BELT

8CR-77338-00-00

$5.49

8

RIVET, BLIND

90267-48010-00

$9.49

9

PROTECTOR

8FA-77373-00-00

Unavailable

10

PIN

8CR-77384-01-00

$16.49

11

LABEL, WARNING 2

8BD-77762-00-00

$7.99

12

LABEL SUSPENSION 1

8FG-4730A-00-00

Unavailable

13

LABEL SUSPENSION 2

8FG-4730B-00-00

Unavailable

14

LABEL 1

8EK-47578-20-00

Unavailable
