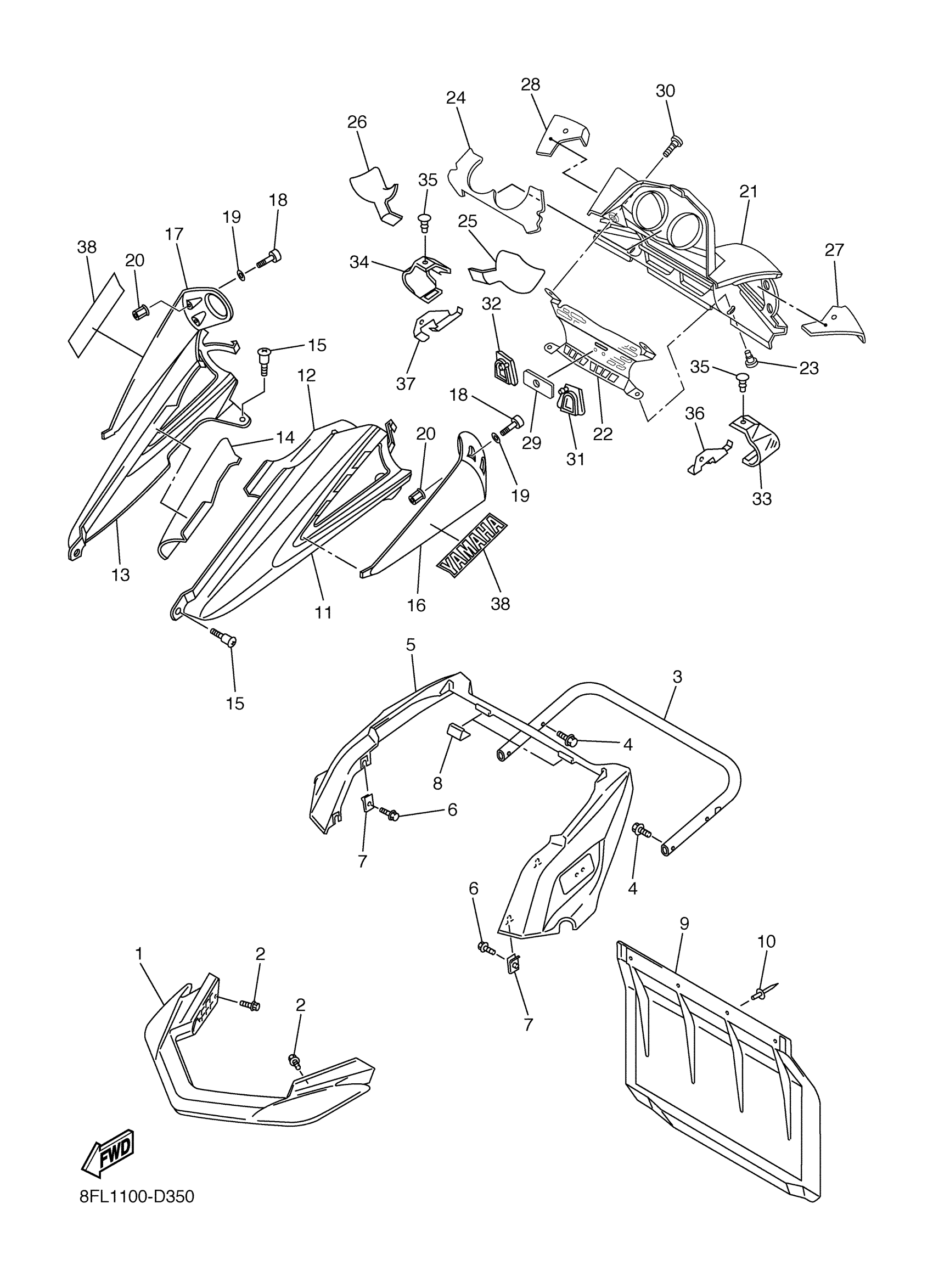

Yamaha RSG90K (RS Rage) 8FL1 2005 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FG-77541-01-00
$187.99
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8EP-77542-00-00
$73.99
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8FA-7717H-00-00
$1.25
9
FLAP
8GT-K7595-00-00
Unavailable
10
RIVET, BLIND(8CH)
90267-47187-00
$2.34
11
PROTECTOR 1
8ES-77551-00-00
Unavailable
12
LINING, SHROUD 1
8ES-77261-01-00
Unavailable
13
PROTECTOR 2
8ES-77552-00-00
Unavailable
14
LINING, SHROUD 2
8ES-77262-01-00
Unavailable
15
SCREW, BINDING
90154-06009-00
$4.61
16
PROTECTOR 4
8ES-77554-00-33
Unavailable
16
PROTECTOR 4
8ES-77554-00-P0
Unavailable
17
PROTECTOR 5
8ES-77555-00-33
Unavailable
17
PROTECTOR 5
8ES-77555-00-P0
Unavailable
18
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
19
WASHER, PLATE (680)
90201-06M07-00
Unavailable
20
NUT(1WT)
90179-06520-00
Unavailable
21
COVER, TAILLIGHT
8ES-84516-00-00
Unavailable
22
PROTECTOR 3
8ES-77553-00-00
Unavailable
23
RIVET, BLIND(8CH)
90267-47187-00
$2.34
24
LINING, SHROUD 3
8ES-77263-00-00
Unavailable
25
LINING, SHROUD 4
8ES-77264-00-00
Unavailable
26
LINING, SHROUD 5
8ES-77265-00-00
Unavailable
27
LINING, SHROUD 6
8ES-77266-00-00
Unavailable
28
LINING, SHROUD 7
8ES-77267-00-00
Unavailable
29
LINING,SHROUD 8
8ES-77268-00-00
Unavailable
30
SCREW, BINDING
90154-06009-00
$4.61
31
GROMMET 1
8EP-77431-00-00
Unavailable
32
GROMMET 2
8EP-77432-00-00
Unavailable
33
COVER, 3
8EP-77563-00-00
Unavailable
34
COVER, 4
8EP-77564-00-00
Unavailable
35
PLUG
90338-08220-00
Unavailable
36
PROTECTOR 4
8EP-77554-00-00
Unavailable
37
PROTECTOR 5
8EP-77555-00-00
Unavailable
38
EMBLEM, YAMAHA
99241-00120-00
Unavailable
38
EMBLEM, YAMAHA
99244-00120-00
Unavailable
38
EMBLEM, YAMAHA
99246-00120-00
Unavailable
