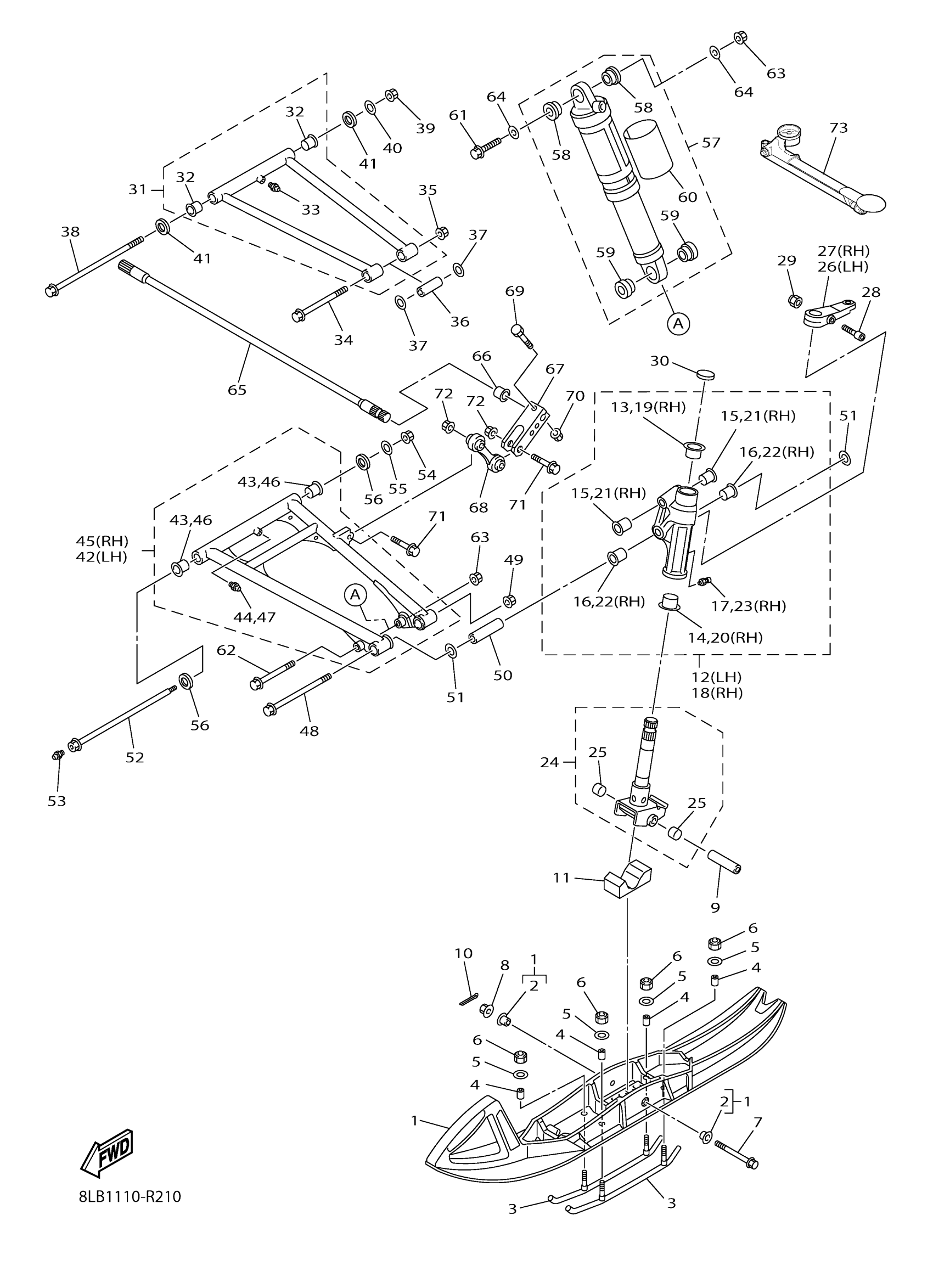

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 SKI Diagram
#
1
SKI 1
8KM-F3711-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
RUNNER 1
8KM-F3731-00-00
Unavailable
4
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
16
BUSH, SOLID
90381-18N51-00
Unavailable
17
NIPPLE, GREASE
93700-06M03-00
Unavailable
18
STEERING KNUCKLE ASSY (RIGHT)
8HG-23502-00-00
Unavailable
22
BUSH, SOLID
90381-18N51-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
COLUMN, SKI ASSY
8HG-23803-00-00
Unavailable
25
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
26
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
27
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
29
NUT, SELF-LOCKING
95602-08200-00
Unavailable
30
CAP, CASE
3YK-22472-40-00
Unavailable
31
FRONT UPPER ARM COMP. (LEFT)
8HG-23540-30-00
Unavailable
33
NIPPLE, GREASE
93700-06M03-00
Unavailable
34
BOLT, FLANGE
90105-10230-00
Unavailable
36
COLLAR
90387-10099-00
Unavailable
37
WASHER, PLATE
90201-10052-00
Unavailable
38
BOLT
90109-10056-00
Unavailable
40
WASHER, PLATE
90201-10052-00
Unavailable
41
WASHER
90209-15N50-00
Unavailable
42
FRONT LOWER ARM COMP. (LEFT)
8HG-23570-30-00
Unavailable
43
BUSH, SOLID
90381-16N51-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
FRONT LOWER ARM COMP. (RIGHT)
8HG-23580-30-00
Unavailable
46
BUSH, SOLID
90381-16N51-00
Unavailable
47
NIPPLE, GREASE
93700-06M03-00
Unavailable
48
BOLT, FLANGE
90105-12078-00
Unavailable
49
NUT, SELF-LOCKING
95602-12200-00
Unavailable
50
COLLAR
90387-12054-00
Unavailable
51
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
52
BOLT, UNION
90401-10045-00
Unavailable
53
NIPPLE, GREASE
93700-06M03-00
Unavailable
55
WASHER, PLATE
90201-10052-00
Unavailable
56
WASHER
90209-15N50-00
Unavailable
57
ABSORBER ASSY 1
8LF-F376A-00-00
Unavailable
58
BUSH
8HR-2376B-09-00
Unavailable
59
BUSH
8HR-2376B-19-00
Unavailable
60
. LABEL, WARNING
8KM-F2259-00-00
Unavailable
61
BOLT, FLANGE
90105-10211-00
Unavailable
62
BOLT, FLANGE
90105-10288-00
Unavailable
64
WASHER, PLATE
90201-10052-00
Unavailable
65
BAR, STABILIZER FRONT
8FG-2386E-10-00
Unavailable
66
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
67
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
68
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
69
BOLT
90101-06046-00
Unavailable
70
NUT, U FLANGE
95604-06200-00
Unavailable
71
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
72
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
73
ADJUSTER
8KM-F3703-00-00
Unavailable
