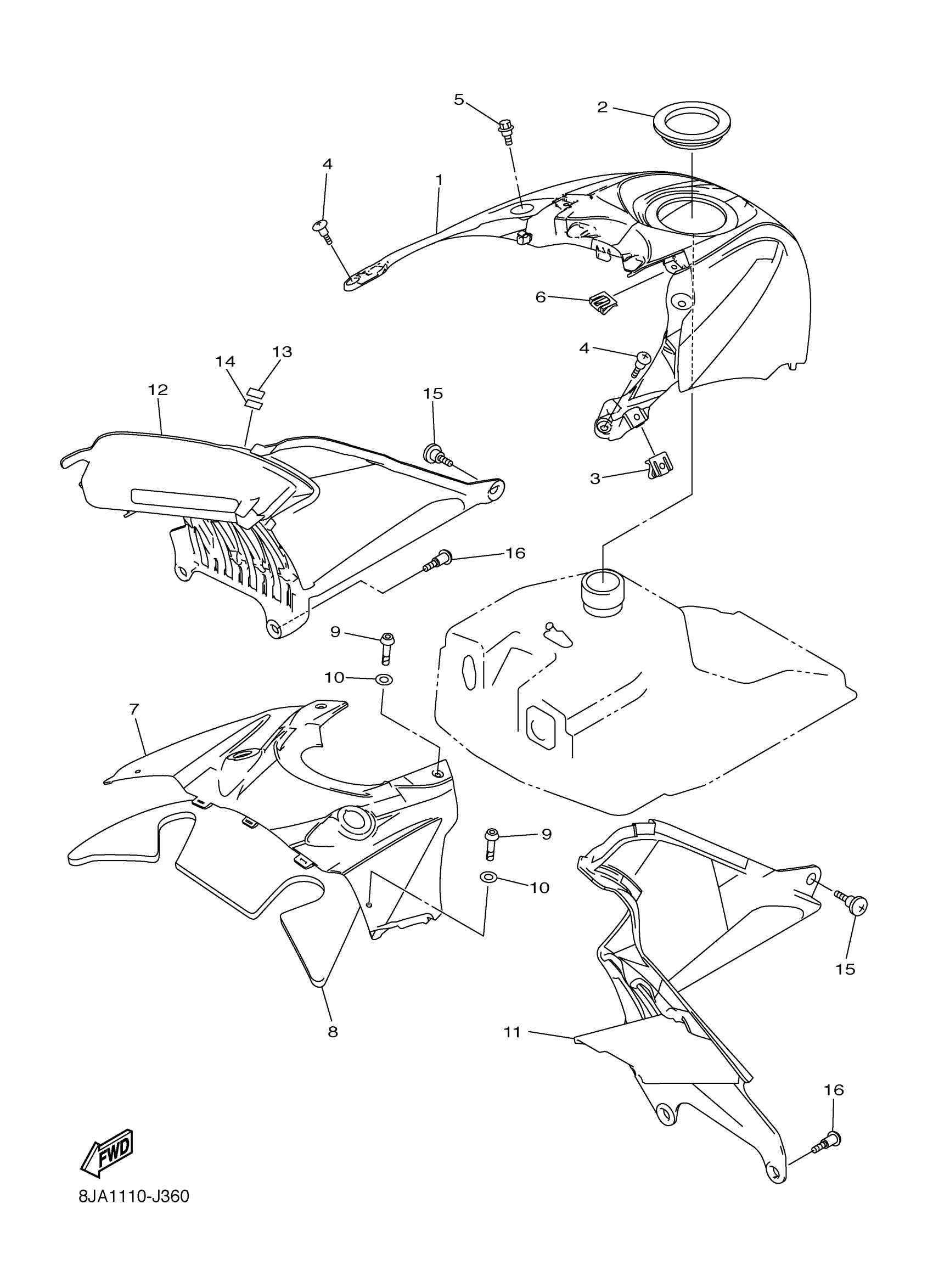

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8FP-77711-01-P0

Unavailable

2

GROMMET

8FP-77746-01-00

$17.99

3

PLATE, SPRING

4XV-2177L-01-00

$6.99

4

SCREW, BINDING

90154-06009-00

$4.61

5

BOLT

90109-06220-00

$10.49

6

PLATE, SPRING

5PW-2177L-01-00

$6.99

7

PANEL, INSTRUMENT

8FP-77712-00-P0

$140.99

8

DAMPER 1

8FP-77319-00-00

$16.99

9

HEAD

5PW-28386-00-00

$17.49

10

WASHER, SPECIAL 1

8HW-21757-00-00

$1.07

11

COVER, SIDE 1

8FP-21711-00-00

Unavailable

12

COVER, SIDE 2

8FP-21721-00-00

Unavailable

13

TAPE 2

8FR-7717F-00-00

$3.88

14

PAD 1

8FR-77151-00-00

$3.18

15

SCREW

90149-06117-00

$8.49

16

SCREW, BINDING

90154-06009-00

$4.61
