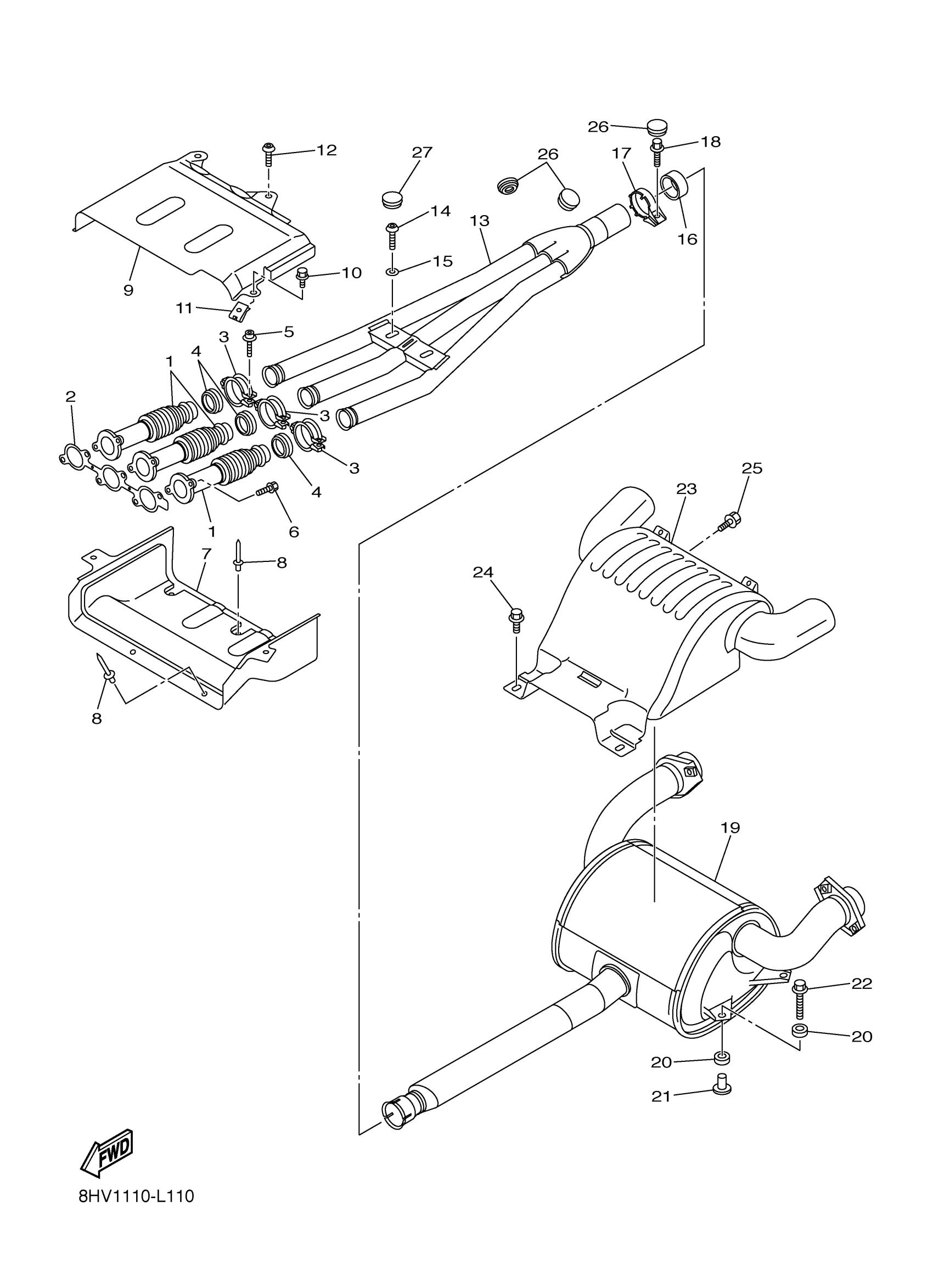

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8GL-14615-00-00

$180.99

2

GASKET, EXHAUST PIPE

8GL-14613-00-00

$23.99

3

BAND, MUFFLER

8FA-14715-00-00

$37.99

4

GASKET, EXHAUST PIPE

8FA-14623-10-00

$33.99

5

BOLT

90109-06031-00

Unavailable

6

BOLT, FLANGE

95022-08020-00

$8.49

7

COVER, EXHAUST

8ES-14627-00-00

Unavailable

8

RIVET, BLIND

90267-47195-00

$3.88

9

EXHAUST COVER ASS'Y

8ES-14637-00-00

Unavailable

10

BOLT, FLANGE

95812-06008-00

$7.49

11

NUT, SPRING

90183-060A0-00

Unavailable

12

BOLT, BUTTON HEAD

92012-06016-00

$8.49

13

EXHAUST PIPE ASSY 1

8JA-14610-00-00

Unavailable

14

BOLT, BUTTON HEAD

92012-08025-00

$7.49

15

WASHER, PLAIN

92990-08200-00

Unavailable

16

GASKET, MUFFLER

8FA-14714-10-00

Unavailable

17

BAND, SILENCER

8FA-14788-00-00

Unavailable

18

BOLT, FLANGE

95812-08020-00

Unavailable

19

SILENCER ASSY

8JA-14750-00-00

Unavailable

20

DAMPER, MUFFLER

8FA-14737-00-00

Unavailable

21

COLLAR

90387-08071-00

Unavailable

22

BOLT, WITH WASHER

90119-08112-00

Unavailable

23

PROTECTOR ASSY

8HV-14708-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06179-00

Unavailable

25

BOLT, FLANGE

95812-06008-00

$7.49

26

PLUG

90338-20004-00

Unavailable

27

PLUG

90338-20007-00

Unavailable
