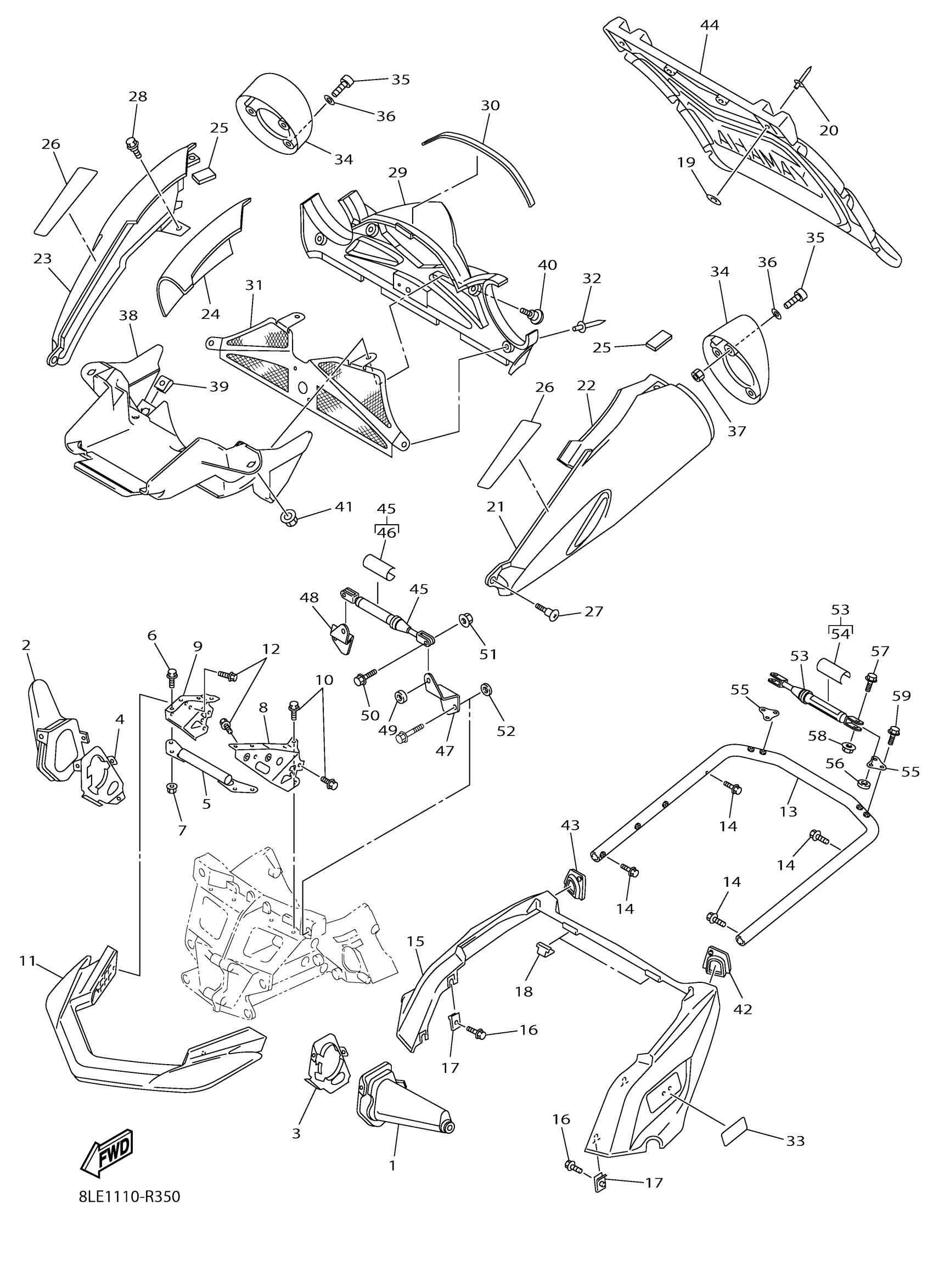

Yamaha RS90XTLHL (RS VECTOR XTX LE) 8LE2 2017 BUMPER Diagram
#
1
COVER 1
8FU-2198F-01-00
$31.99
2
COVER 3
8FU-2198J-01-00
$31.99
3
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
4
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
5
BRKT. ,FR. FOOD
8FP-21979-00-00
$95.99
6
BOLT, FLANGE
95817-06014-00
Unavailable
7
NUT, FLANGE
95702-06500-00
$2.39
8
BRACKET, FRONT
8FA-21949-00-00
$63.99
9
BRACKET, FRONT BUMPER
8FA-21959-00-00
$59.99
10
BOLT, FLANGE
95814-08016-00
$9.49
11
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
12
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
13
BUMPER, REAR 1
8KK-77541-10-00
$391.99
14
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
15
BUMPER, REAR 2
8EP-77542-00-00
$73.99
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
NUT, SPRING(4ES)
90183-06069-00
Unavailable
18
TAPE 4
8HV-7717H-00-00
Unavailable
19
WASHER, PLATE
90201-04027-00
Unavailable
20
RIVET, BLIND
90267-47200-00
Unavailable
21
PROTECTOR 1
8FP-77551-01-P4
Unavailable
22
LINING, SHROUD 1
8HV-77261-00-00
Unavailable
23
PROTECTOR 2
8FP-77552-02-P4
Unavailable
24
LINING, SHROUD 2
8HV-77262-00-00
Unavailable
25
LINING, SHROUD 3
8HV-77263-00-00
Unavailable
26
PROTECTOR, SIDE 1
8FR-77561-00-00
Unavailable
27
SCREW, BINDING
90154-06009-00
Unavailable
28
BOLT
90109-06220-00
Unavailable
29
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
30
TRIM 8
8FP-77234-00-00
Unavailable
31
LOUVER 1
8FP-77441-00-00
Unavailable
32
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
33
SEAL, BODY SIDE 1
8FT-7814E-00-00
Unavailable
34
CAP
8FP-77517-00-00
Unavailable
35
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
36
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
37
NUT, HEXAGON
95380-06600-00
Unavailable
38
BRACKET, TAILLIGHT
8FP-2117E-01-00
Unavailable
39
NUT, SPRING(4ES)
90183-06069-00
Unavailable
40
BOLT
90109-06220-00
Unavailable
41
NUT, U FLANGE
95604-06200-00
Unavailable
42
GROMMET 1
8EP-77431-00-00
Unavailable
43
GROMMET 2
8EP-77432-00-00
Unavailable
44
FLAP
8GT-K7595-00-00
Unavailable
45
DAMPER BRACE SUB-ASSY.
K7R-2110K-00-00
Unavailable
46
LABEL, WARNING
K7R-22259-00-00
Unavailable
47
BRACKET 1
8JU-2194X-00-00
Unavailable
48
BRACKET 2
8JU-2195X-00-00
Unavailable
49
COLLAR
90387-10110-00
Unavailable
50
BOLT, FLANGE
95817-10035-00
Unavailable
51
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
52
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
53
DAMPER BRACE SUB-ASSY.
K7R-2110K-10-00
Unavailable
54
LABEL, WARNING
K7R-22259-00-00
Unavailable
55
BRACKET, FRONT
8KK-77531-00-00
Unavailable
56
COLLAR
90387-10110-00
Unavailable
57
BOLT, FLANGE
95817-10035-00
Unavailable
58
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
59
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
