TRACK SUSPENSION 2

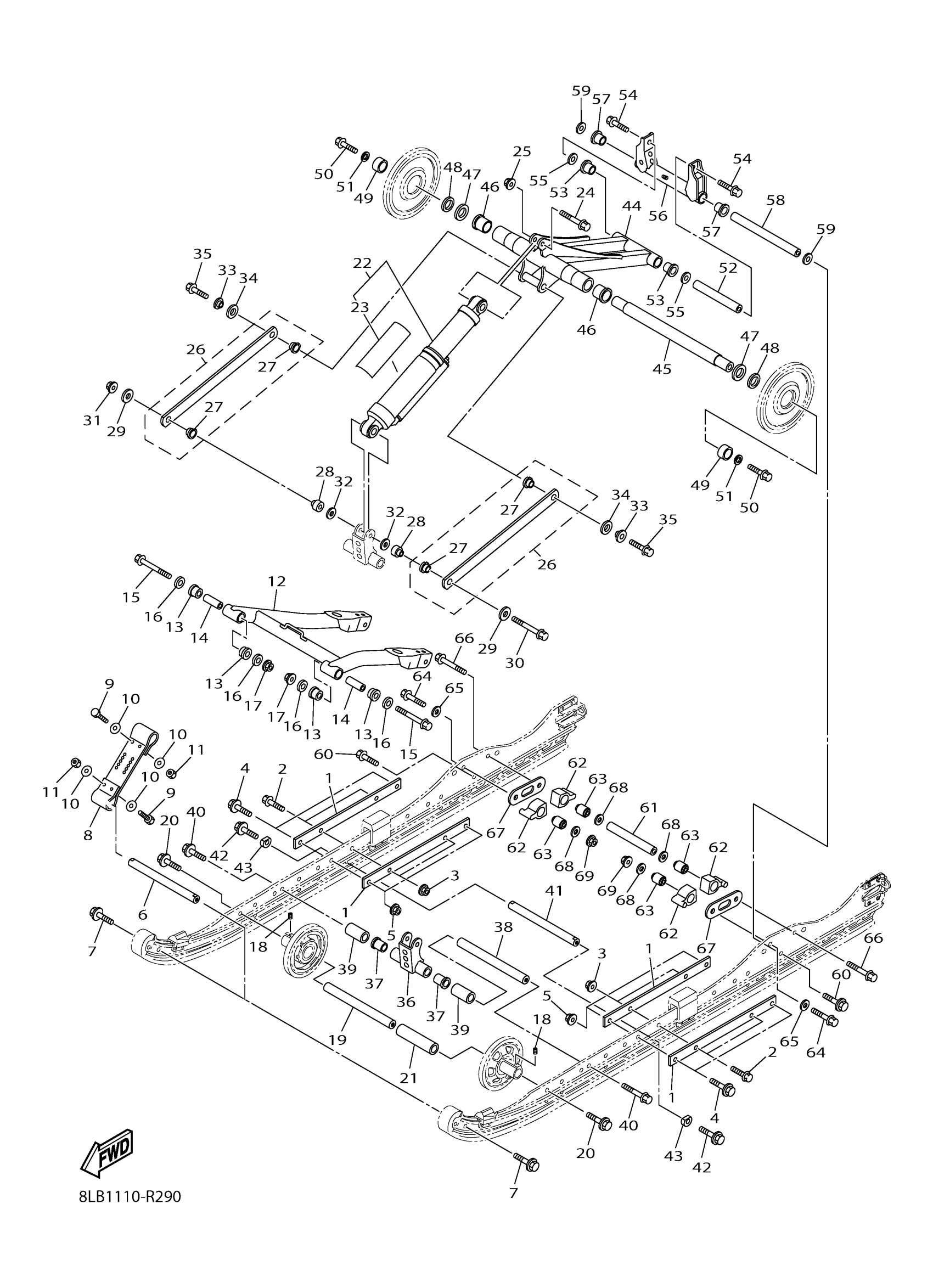

Yamaha RS90XTHL (RS VECTOR XTX) 8KK2 2017 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING C
8KL-4741C-00-00
$43.99
2
BOLT, FLANGE
95812-08030-00
$3.81
3
NUT, SELF-LOCKING
95602-08200-00
$3.20
4
BOLT, FLANGE
95817-10030-00
$8.49
5
NUT, S/L FLANGE
95602-10200-00
$4.82
6
SHAFT 4
8GL-47486-00-00
Unavailable
7
BOLT, FLANGE
95817-10030-00
$8.49
8
STOPPER 1
8KM-47495-00-00
Unavailable
9
BOLT, HEXAGON
97017-06025-00
$4.24
10
WASHER, PLATE
90201-06081-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
ARM, PIVOT 1
8KM-47331-00-00
$253.99
13
BUSH, SOLID(2WR)
90381-18068-00
$39.99
14
SHAFT 1
8GL-47465-00-00
Unavailable
15
BOLT, FLANGE
90105-10202-00
$7.49
16
WASHER, PLATE
90201-10046-00
Unavailable
17
NUT, S/L FLANGE
95602-10200-00
$4.82
18
BOLT, SET (8K2)
90113-06039-00
Unavailable
19
SHAFT 3
8KL-47485-00-00
Unavailable
20
BOLT, FLANGE
95817-10030-00
$8.49
21
COLLAR
90387-20038-00
Unavailable
22
SHOCK ABSORBER
8KM-47480-00-00
Unavailable
23
LABEL, WARNING
8KM-22259-00-00
Unavailable
24
BOLT, FLANGE
90105-10283-00
Unavailable
25
NUT, S/L FLANGE
95602-10200-00
$4.82
26
RELAY ROD ASSY
8KM-47490-00-00
Unavailable
27
BUSH, SOLID
90381-16002-00
Unavailable
28
COLLAR 2
8HR-47366-00-00
Unavailable
29
WASHER, PLATE
90201-16027-00
Unavailable
30
BOLT, FLANGE
90105-10375-00
Unavailable
31
NUT, S/L FLANGE
95602-10200-00
$4.82
32
WASHER, PLATE
90201-10052-00
Unavailable
33
COLLAR 2
8HR-47366-10-00
Unavailable
34
WASHER, PLATE
90201-16027-00
Unavailable
35
BOLT, FLANGE
95817-10030-00
$8.49
36
BRACKET, ARM PIVOT
8HR-47349-00-00
Unavailable
37
BUSH
90386-20001-00
Unavailable
38
SHAFT 5
8KL-47487-00-00
Unavailable
39
COLLAR
90387-20037-00
Unavailable
40
BOLT, FLANGE
90105-10209-00
Unavailable
41
SHAFT 4
8GL-47486-00-00
Unavailable
42
BOLT, FLANGE
95817-10030-00
$8.49
43
SPACER
8GL-47341-00-00
Unavailable
44
ARM, PIVOT 2
8KM-47332-00-00
Unavailable
45
SHAFT 2
8FU-47475-00-00
Unavailable
46
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
47
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
48
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
49
COLLAR
90387-25005-00
Unavailable
50
BOLT
90109-10032-00
Unavailable
51
WASHER, PLATE
90201-10039-00
Unavailable
52
SHAFT 6
8KM-47488-20-00
Unavailable
53
BUSH(JA1)
90386-19160-00
Unavailable
54
BOLT, FLANGE
90105-10189-00
Unavailable
55
WASHER, PLATE
90201-10043-00
Unavailable
56
BRACKET 3
8KM-47417-00-00
Unavailable
57
BUSH(JA1)
90386-19160-00
Unavailable
58
SHAFT 3
8FU-47485-00-00
Unavailable
59
WASHER, PLATE
90201-10076-00
Unavailable
60
BOLT, FLANGE
95817-10030-00
$8.49
61
SHAFT 6
8KM-47488-00-00
Unavailable
62
STOPPER 2
8KM-47496-00-00
Unavailable
63
BUSH, REAR SHOCK ABSORBER
4GY-22216-30-00
Unavailable
64
BOLT, FLANGE
90105-10210-00
Unavailable
65
WASHER, PLATE
90201-10043-00
Unavailable
66
BOLT, FLANGE
90105-10029-00
Unavailable
67
PLATE, GUIDE
8KL-47467-00-00
Unavailable
68
WASHER, PLATE
90201-10076-00
Unavailable
69
NUT, S/L FLANGE
95602-10200-00
$4.82
