- RS90XTHL (RS VECTOR XTX) 8KK2 2017
TRACK DRIVE 2

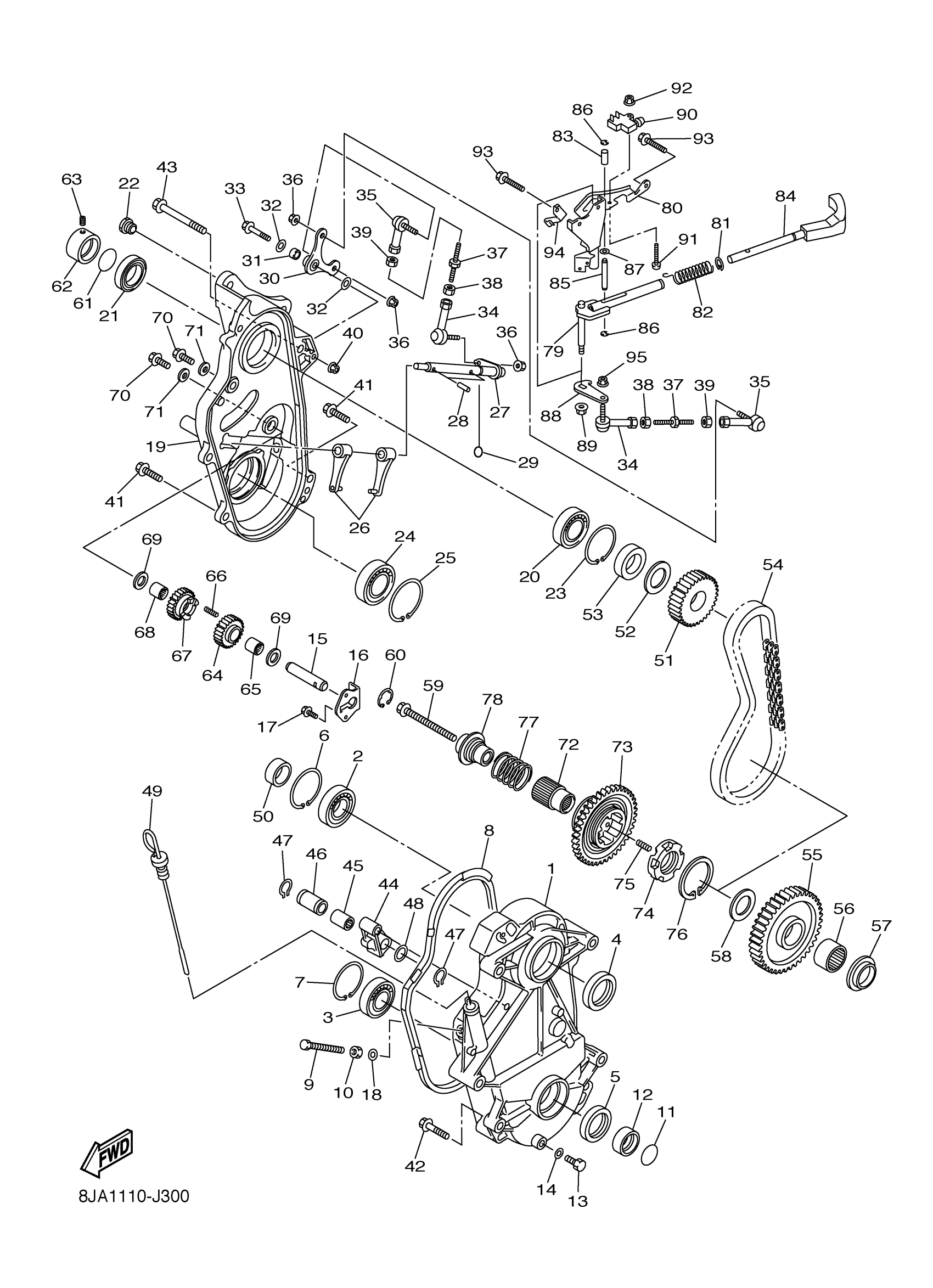

Yamaha RS90XTHL (RS VECTOR XTX) 8KK2 2017 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FP-47541-11-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-205A9-00
$61.99
4
OIL SEAL
93102-30012-00
$32.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, HOUSING
8FP-47558-10-00
$72.99
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT (682)
95380-10700-00
Unavailable
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
BOLT, HEXAGON
97017-08016-00
$8.49
14
WASHER, SEAL(8AB)
90210-08017-00
$8.49
15
SHAFT, 1
8CW-1761A-00-00
$62.99
16
PLATE
8CW-47591-00-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
WASHER, PLATE(56J)
90201-106H5-00
Unavailable
19
CAP, HOUSING
8HF-47543-00-00
Unavailable
20
BEARING
93306-20532-00
Unavailable
21
OIL SEAL
93102-35473-00
Unavailable
22
NUT(8CJ)
90179-10679-00
Unavailable
23
CIRCLIP(26H)
99009-52500-00
$12.49
24
BEARING
93306-00711-00
Unavailable
25
CIRCLIP(MF1)
99009-62500-00
$8.49
26
FORK, SHIFT 1
8GL-18511-01-00
Unavailable
27
SHAFT
8FR-18197-00-00
Unavailable
28
PIN, SPRING(8DA)
91609-50022-00
Unavailable
29
O-RING (328)
93210-12131-00
Unavailable
30
LEVER
8FR-18198-00-00
Unavailable
31
COLLAR
90387-06197-00
Unavailable
32
WASHER, PLATE
90201-06033-00
Unavailable
33
BOLT, FLANGE
95817-06040-00
Unavailable
34
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
35
JOINT 2
88T-18157-00-00
Unavailable
36
NUT, U FLANGE
95604-06200-00
Unavailable
37
ROD, SHIFT
26H-18115-00-00
Unavailable
38
NUT, HEXAGON
95380-06600-00
Unavailable
39
NUT (2H9)
90170-06228-00
Unavailable
40
NUT, U FLANGE
95604-06200-00
Unavailable
41
BOLT, FLANGE
95817-08035-00
Unavailable
42
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
43
BOLT,FLANGE
95817-10090-00
Unavailable
44
HOLDER
8ES-47613-00-00
Unavailable
45
BEARING
93311-32685-00
Unavailable
46
COLLAR
90387-22005-00
Unavailable
47
CIRCLIP
99009-26400-00
Unavailable
48
WASHER, PLATE
90201-266P2-00
Unavailable
49
LEVEL, OIL
8FA-47546-01-00
Unavailable
50
COLLAR
90387-30005-00
Unavailable
51
SPROCKET, CHAIN DRIVE
8FA-17682-30-00
Unavailable
52
WASHER, CONICAL SPRING
90208-26002-00
Unavailable
53
COLLAR
90387-26007-00
Unavailable
54
CHAIN
94890-09070-00
Unavailable
55
SPROCKET, CHAIN DRIVEN
8FB-47587-90-00
Unavailable
56
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
57
COLLAR(8DA)
90387-2008G-00
Unavailable
58
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
59
BOLT, FLANGE
90105-10369-00
Unavailable
60
CIRCLIP
93420-26092-00
Unavailable
61
O-RING (36R)
93210-25642-00
Unavailable
62
COLLAR
8HF-47536-00-00
Unavailable
63
BOLT, SET
90113-06006-00
Unavailable
64
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
65
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
66
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
67
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
68
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
69
WASHER PLATE (3L6)
90201-16245-00
Unavailable
70
BOLT, FLANGE
95817-06016-00
Unavailable
71
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
72
JOURNAL 1
8CW-47571-00-00
Unavailable
73
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
74
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
75
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
76
CIRCLIP(8DA)
93440-39175-00
Unavailable
77
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
78
COLLAR
8GL-48566-10-00
Unavailable
79
ARM, SHIFT
8ER-18112-01-00
Unavailable
80
GUIDE, PLATE STOPPER
8JA-18161-00-00
Unavailable
81
CIRCLIP(13H)
99009-18400-00
Unavailable
82
SPRING, COMPRESSION (8FA1)
90501-130A0-00
Unavailable
83
COLLAR (8FA1)
90387-06059-00
Unavailable
84
KNOB, SHIFT LEVER
8FR-18174-01-00
Unavailable
85
PIN (8FA1)
90249-06002-00
Unavailable
86
CIRCLIP (J10)
93410-06053-00
Unavailable
87
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
88
PLATE, SHIFT ARM
8JA-1811A-00-00
Unavailable
89
NUT, U FLANGE
95604-06200-00
Unavailable
90
SWITCH
J51-82817-00-00
Unavailable
91
SCREW, BINDING
98907-04020-00
Unavailable
92
NUT, U (7LY)
95617-04100-00
Unavailable
93
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
94
CLAMP
90462-08086-00
Unavailable
95
NUT, U FLANGE
95604-06200-00
Unavailable
