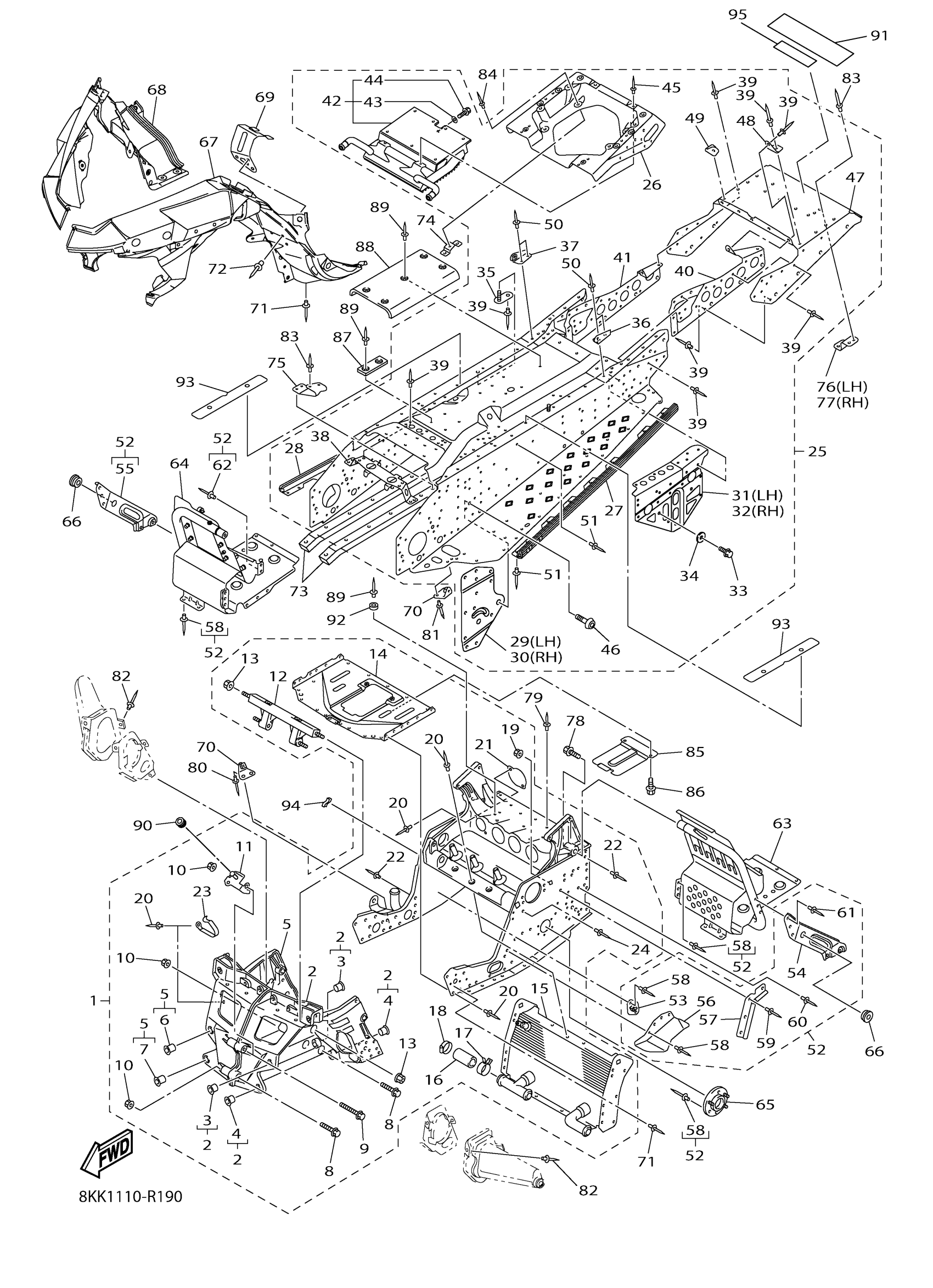

Yamaha RS90XTHL (RS VECTOR XTX) 8KK2 2017 FRAME Diagram
#
1
FRONT FRAME COMP.
8JU-21940-00-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET 2
8HG-2836E-00-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
PROTECTOR
8FR-2193A-01-00
Unavailable
15
HEAT EXCHANGER ASSY
8JA-12440-00-00
Unavailable
16
HOSE 7
8FA-12551-00-00
Unavailable
17
CLIP (8M6)
90467-28046-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
$8.49
20
RIVET, BLIND
90267-47195-00
Unavailable
21
PLATE, COVER
8ES-2131D-00-00
Unavailable
22
RIVET, BLIND
90267-48016-00
Unavailable
23
CLAMP
90462-08083-00
Unavailable
24
RIVET, BLIND
90267-48177-00
Unavailable
25
REAR FRAME COMP.
8KK-21950-00-00
Unavailable
26
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
27
REINFORCEMENT, FOOTREST 1
8FG-21926-00-00
Unavailable
28
REINFORCEMENT, FOOTREST 2
8FG-21936-00-00
Unavailable
29
BRACKET, MAIN TRACK 1
8HN-21943-00-00
Unavailable
30
BRACKET, MAIN TRACK 2
8HN-21953-00-00
Unavailable
31
BRACKET,RR.TRACK SUSPENTION 1
8KK-21944-00-00
Unavailable
32
BRACKET,RR.TRACK SUSPENTION 2
8KK-21954-00-00
Unavailable
33
BOLT, FLANGE
95814-10020-00
Unavailable
34
WASHER, PLATE
90201-10038-00
Unavailable
35
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
36
BRACKET 1
8FA-2194X-00-00
Unavailable
37
BRACKET 2
8FA-2195X-00-00
Unavailable
38
PROTECTOR, MUFFLER
8ES-2194H-00-00
Unavailable
39
RIVET, BLIND
90267-47195-00
Unavailable
40
PATCH 3
8FT-21963-01-00
Unavailable
41
PATCH 4
8FT-21964-01-00
Unavailable
42
HEAT EXCHANGER ASSY 4
8FT-1241A-00-00
Unavailable
43
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
44
BOLT, FLANGE
95817-06012-00
Unavailable
45
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
46
BOLT, BUTTON HEAD
92012-10020-00
Unavailable
47
PANEL, SUB FRAME 5
8KK-21916-00-00
Unavailable
48
PATCH 8
8FG-21988-00-00
Unavailable
49
PATCH 9
8FG-21989-00-00
Unavailable
50
RIVET, BLIND
90267-47197-00
Unavailable
51
RIVET, BLIND
90267-48023-00
Unavailable
52
FRAME CONNECTION KIT
8JU-W2195-00-00
Unavailable
53
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
54
BRACKET, 5
8JA-2196M-00-00
Unavailable
55
BRACKET, 6
8JA-2197M-00-00
Unavailable
56
COVER 2
8FP-2198G-01-00
Unavailable
57
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
58
RIVET, BLIND
90267-47195-00
Unavailable
59
RIVET, BLIND
90267-48018-00
Unavailable
60
RIVET, BLIND
90267-48016-00
Unavailable
61
RIVET, BLIND
90267-48177-00
Unavailable
62
RIVET, BLIND
90267-48016-00
Unavailable
63
FOOTREST COMP. 1
8JA-21960-00-00
Unavailable
64
FOOTREST COMP. 2
8HG-21970-00-00
Unavailable
65
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
66
GROMMET(4FU)
90480-13567-00
Unavailable
67
FRAME UNDER 1
8GM-2196A-01-00
Unavailable
68
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
69
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
70
BRACKET 3
8FA-2196F-00-00
Unavailable
71
RIVET, BLIND
90267-48018-00
Unavailable
72
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
73
PROTECTOR, FRAME
8FT-21978-00-00
Unavailable
74
BRACKET 7
8FT-2197N-00-00
Unavailable
75
BRACKET 7
8FU-2197N-00-00
Unavailable
76
BRACKET 3
8FT-2196F-00-00
Unavailable
77
BRACKET 4
8FT-2196G-00-00
Unavailable
78
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
79
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
80
RIVET, BLIND (22W)
90267-48083-00
Unavailable
81
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
82
RIVET, BLIND
90267-47195-00
Unavailable
83
RIVET, BLIND
90267-48023-00
Unavailable
84
RIVET, BLIND
90267-48177-00
Unavailable
85
PROTECTOR, FRAME FR
8FR-2197E-00-00
Unavailable
86
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
87
SPACER
8FA-21998-00-00
Unavailable
88
SHIELD, HEAT
8FG-23892-00-00
Unavailable
89
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
90
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
91
LABEL, WARNING 2
8HA-77762-E0-00
Unavailable
92
STOPPER
8HG-24768-00-00
Unavailable
93
DAMPER 1
8HG-2214F-00-00
Unavailable
94
TAPE 4
8FA-7717H-00-00
Unavailable
95
LABEL, WARNING 5
8JT-77765-E0-00
Unavailable
