- RS90XT75HL (RS VECTOR XTX 1.75) 8LD2 2017
TRACK SUSPENSION 1

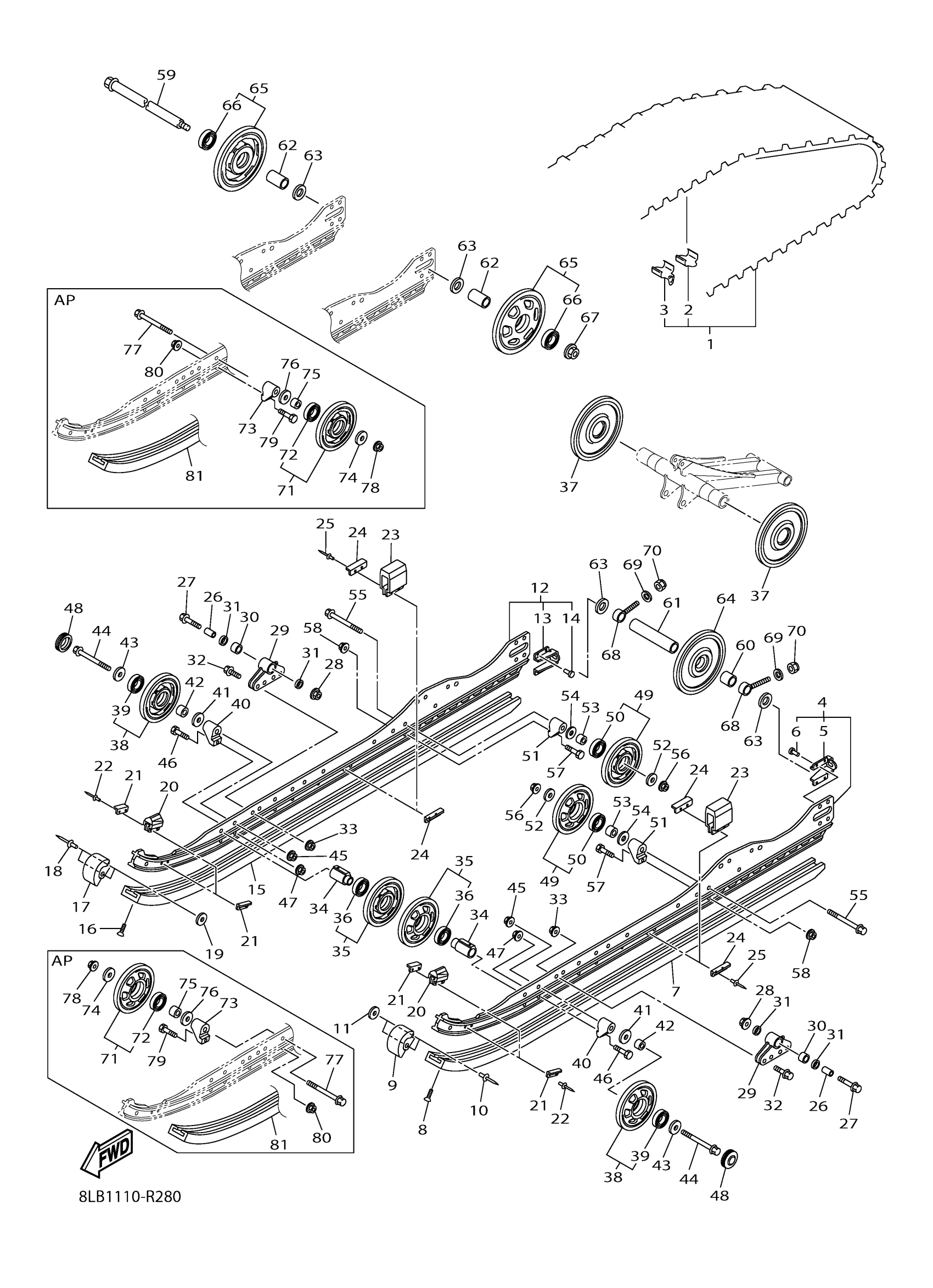

Yamaha RS90XT75HL (RS VECTOR XTX 1.75) 8LD2 2017 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8LA-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING 1
8KL-47411-00-00
$412.99
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
FRAME, SLIDING 2
8KL-47412-00-00
Unavailable
13
BRACKET
8DM-4741B-00-00
$45.99
14
RIVET
8V0-47468-00-00
$10.49
15
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
16
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
17
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
18
RIVET BLIND
90267-48194-00
$3.28
19
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
20
DAMPER 1
8ES-47456-00-00
Unavailable
21
PLATE, DAMPER
8K2-47458-01-00
Unavailable
22
RIVET, BLIND
90267-48199-00
Unavailable
23
DAMPER 2
8KL-47457-00-00
Unavailable
24
PLATE, DAMPER
8AX-47458-00-00
Unavailable
25
RIVET, BLIND
90267-48199-00
Unavailable
26
COLLAR
90387-1012A-00
Unavailable
27
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
28
NUT, S/L FLANGE
95602-10200-00
Unavailable
29
BRACKET 1
8KM-47415-00-00
Unavailable
30
BEARING
93315-31758-00
Unavailable
31
OIL SEAL
93109-17071-00
Unavailable
32
. BOLT, FLANGE
95812-10025-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
COLLAR
8ES-47319-10-00
Unavailable
35
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
36
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
37
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
38
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
39
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
40
BRACKET 7
8CM-47419-10-00
Unavailable
41
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
42
COLLAR
90387-10031-00
Unavailable
43
WASHER, PLATE
90201-101U2-00
Unavailable
44
BOLT, FLANGE
90105-10241-00
Unavailable
45
NUT, S/L FLANGE
95602-10200-00
Unavailable
46
BOLT
90101-08063-00
Unavailable
47
NUT, SELF-LOCKING
95602-08200-00
Unavailable
48
CAP, WHEEL
8HF-47317-00-00
Unavailable
49
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
50
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
51
BRACKET 7
8CM-47419-10-00
Unavailable
52
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
53
COLLAR
90387-10031-00
Unavailable
54
WASHER, PLATE
90201-101U2-00
Unavailable
55
BOLT, FLANGE
90105-10241-00
Unavailable
56
NUT, S/L FLANGE
95602-10200-00
Unavailable
57
BOLT
90101-08063-00
Unavailable
58
NUT, SELF-LOCKING
95602-08200-00
Unavailable
59
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
60
COLLAR
90387-20015-00
Unavailable
61
COLLAR
90387-20016-00
Unavailable
62
COLLAR
90387-20039-00
Unavailable
63
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
64
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
65
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
66
BEARING(8AB)
93306-00444-00
Unavailable
67
NUT, U FLANGE
95602-14200-00
Unavailable
68
COLLAR 3
8DM-47479-00-00
Unavailable
69
WASHER, PLATE
92990-10600-00
Unavailable
70
NUT, NYLON
95707-10300-00
Unavailable
71
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
72
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
73
BRACKET 7
8CM-47419-10-00
Unavailable
74
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
75
COLLAR
90387-10031-00
Unavailable
76
WASHER, PLATE
90201-101U2-00
Unavailable
77
BOLT, FLANGE
90105-10241-00
Unavailable
78
NUT, S/L FLANGE
95602-10200-00
Unavailable
79
BOLT
90101-08063-00
Unavailable
80
NUT, SELF-LOCKING
95602-08200-00
Unavailable
81
RUNNER, SLIDING 1
8HL-47421-20-00
Unavailable
