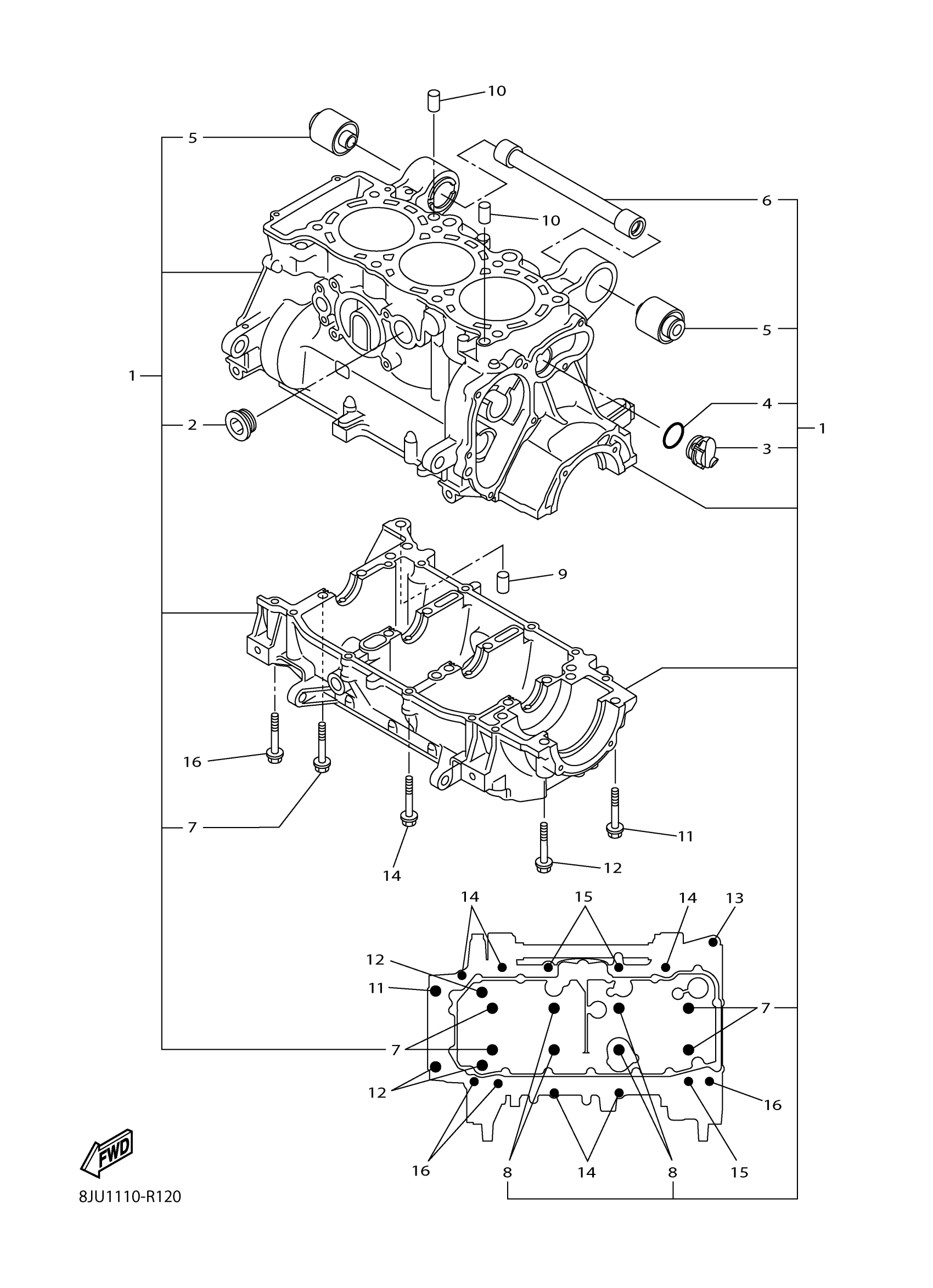

Yamaha RS90XT75HL (RS VECTOR XTX 1.75) 8LD2 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8JU-15109-09-00

Unavailable

2

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

3

PLUG, BLIND 1

8ES-15167-00-00

$11.99

4

O-RING(1HX)

93210-24709-00

$9.49

5

DAMPER

8FA-2139X-00-00

Unavailable

6

SPACER

8ES-21459-00-00

Unavailable

7

BOLT, WITH WASHER

90119-09004-00

$11.49

8

BOLT, WITH WASHER

90119-09011-00

$42.99

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

BOLT, FLANGE

95817-08055-00

$4.21

12

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

13

BOLT

90109-06185-00

$8.49

14

BOLT, FLANGE

95812-06055-00

$1.75

15

BOLT, FLANGE

95812-06080-00

$8.49

16

BOLT, FLANGE

95817-06080-00

Unavailable
