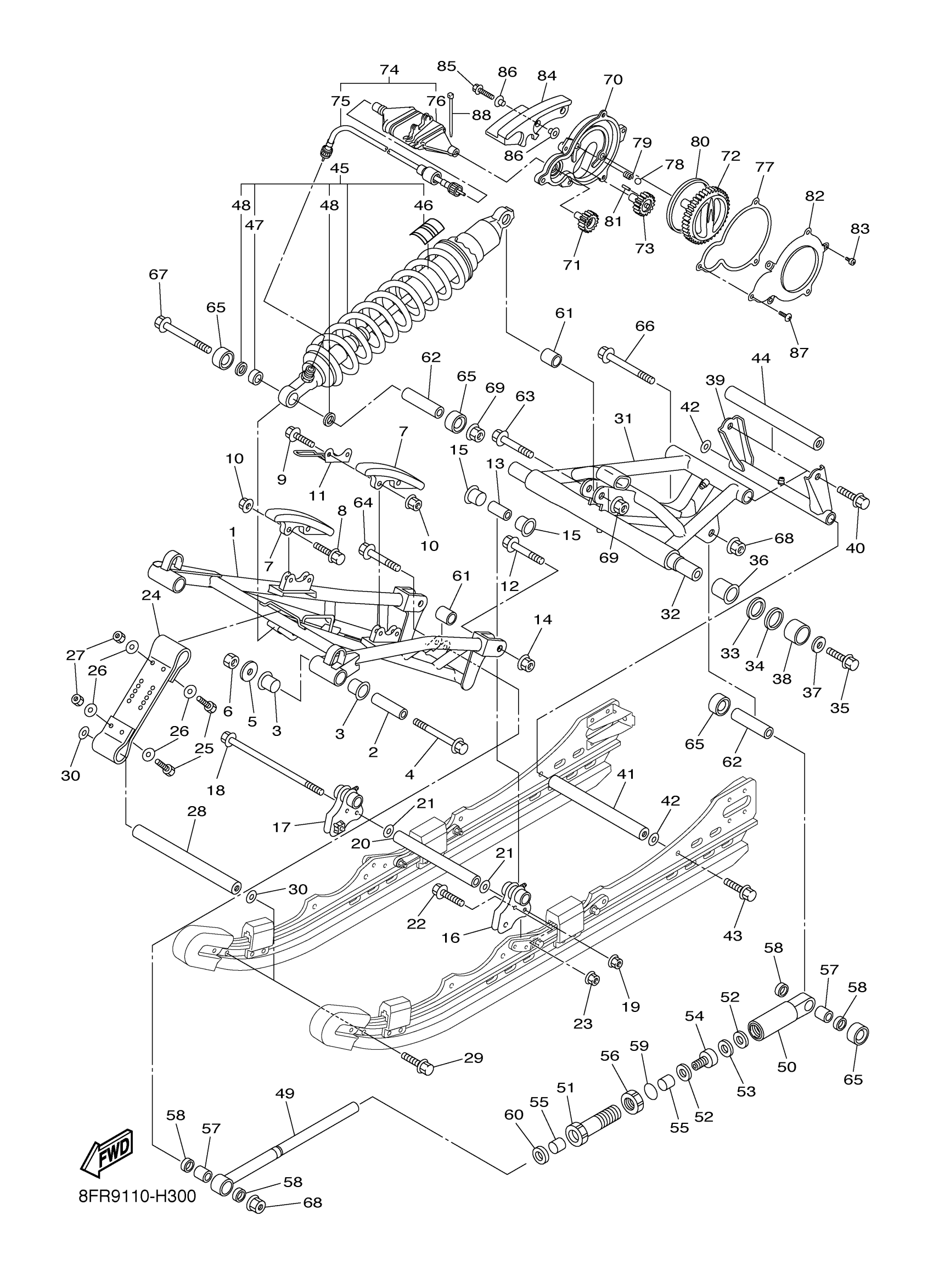

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8FT-47331-01-00

$642.99

2

COLLAR

90387-10042-00

$18.68

3

BUSH

90386-22002-00

$17.22

4

BOLT, FLANGE

90105-10150-00

$8.94

5

WASHER, PLATE(42X)

90201-105H3-00

$5.68

6

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

7

RUNNER, SLIDING 2

8F3-47422-01-00

$15.63

8

BOLT, FLANGE

95817-06020-00

$2.69

9

BOLT, FLANGE

95817-06025-00

$1.46

10

NUT,SELF-LOCKING

95607-06200-00

$10.25

11

PROTECTOR

8FR-47445-00-00

Unavailable

12

BOLT, FLANGE

90105-10091-00

$4.20

13

COLLAR

90387-10033-00

$21.23

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

15

BUSH

90386-15002-00

$14.51

16

BRACKET 1

8FU-47415-11-00

$41.54

17

BRACKET 4

8FU-47418-11-00

$49.46

18

BOLT, FLANGE

90105-08119-00

$8.88

19

NUT, SELF-LOCKING

90185-08169-00

$7.09

20

COLLAR

90387-08037-00

Unavailable

21

WASHER (1T1)

90201-08649-00

$6.29

22

BOLT, FLANGE

95812-08030-00

$3.25

23

NUT, SELF-LOCKING

95602-08200-00

$2.77

24

STOPPER 1

8GM-47495-00-00

$75.06

25

BOLT, HEXAGON

97017-06025-00

$2.98

26

WASHER, PLATE

90201-06081-00

$6.18

27

NUT, NYLON

95707-06300-00

$3.20

28

SHAFT 3

8FU-47485-00-00

$45.37

29

BOLT, FLANGE

95817-10030-00

$6.17

30

WASHER, PLATE (26H)

90201-102G9-00

$6.38

31

ARM, PIVOT 2

8FU-47332-13-00

$314.23

32

SHAFT 2

8FU-47475-00-00

$101.62

33

WASHER, PLATE (8V2)

90201-251G8-00

$7.49

34

WASHER, PLATE(8CJ)

90201-250T6-00

$7.43

35

BOLT, FLANGE

90105-10145-00

$5.34

36

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

37

WASHER, PLATE

90201-10039-00

$6.42

38

COLLAR

90387-25005-00

$2.68

39

BRACKET 3

8FU-47417-11-00

$60.35

40

BOLT, FLANGE

95817-10030-00

$6.17

41

SHAFT 3

8FU-47485-00-00

$45.37

42

WASHER PLATE (789)

90201-10136-00

$7.26

43

BOLT, FLANGE

95817-10030-00

$6.17

44

SHAFT 4

8FU-47486-00-00

$41.75

45

SHOCK ABSORBER

8GM-47480-01-00

Unavailable

46

LABEL, WARNING

4AA-22259-60-00

$6.02

47

BEARING

93315-31758-00

$33.76

48

OIL SEAL

93109-17071-00

$6.72

49

ROD, CONTROL 1

8FR-4745A-00-00

Unavailable

50

ROD, CONTROL 3

8FU-4745C-10-00

Unavailable

51

ROD, CONTROL 2

8FU-4745B-00-00

Unavailable

52

WASHER

8GM-47384-00-00

Unavailable

53

WASHER (L=7.5)

8FU-47384-00-00

Unavailable

53

WASHER (L=5.0)

8FU-47384-10-00

Unavailable

53

WASHER

8FU-47384-20-00

$29.91

53

WASHER

8GM-47384-00-00

Unavailable

54

STOPPER, CONT. 1

8FU-4745D-00-00

Unavailable

55

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

56

NUT

8JA-47368-00-00

$27.58

57

BEARING

93315-31758-00

$33.76

58

OIL SEAL

93109-17071-00

$6.72

59

O-RING

93210-347A6-00

Unavailable

60

SEAL, TRIM DUST

C68-43822-00-00

$3.91

61

COLLAR

90387-1012A-00

$17.77

62

COLLAR

90387-10034-00

$23.43

63

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

64

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

65

SPACER

8FU-47341-00-00

$6.65

66

BOLT, FLANGE(7LU)

95817-10070-00

$5.11

67

BOLT, FLANGE(7LU)

95817-10070-00

$5.11

68

NUT, SELF-LOCKING

90185-10011-00

$3.92

69

NUT, S/L FLANGE

95602-10200-00

$2.29

70

HOUSING, ADJUSTER

8FU-474A1-00-00

$86.83

71

GEAR, DRIVE

8FU-474A2-00-00

$58.20

72

HANDLE, ADJUSTER

8FU-474A3-00-00

$108.03

73

GEAR, STOPPER

8FU-474A4-00-00

$65.60

74

ADJUSTER CABLE ASSY.

8FU-W474A-30-00

$157.40

75

CABLE, ADJUSTER

8FU-474A5-30-00

$71.80

76

PROTECTOR

8FU-47445-01-00

$132.98

77

GASKET, ADJUSTER HOUSING

8FU-474A6-01-00

Unavailable

78

BALL

93501-04011-00

$6.26

79

SPRING, COMPRESSION

90501-06M35-00

$1.37

80

SEAL, ADJUSTER HANDLE

8FU-474A7-00-00

Unavailable

81

PIN,DOWEL (603)

93603-12007-00

$1.60

82

PLATE, GUIDE

8FU-47467-00-00

$28.97

83

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

84

SLIDER 1

8FU-47441-11-00

Unavailable

85

BOLT, FLANGE

95817-06020-00

$2.69

86

COLLAR (3L1)

90387-07717-00

$4.70

87

SCREW

90149-06138-00

Unavailable

88

CLAMP

90464-16061-00

$6.78
