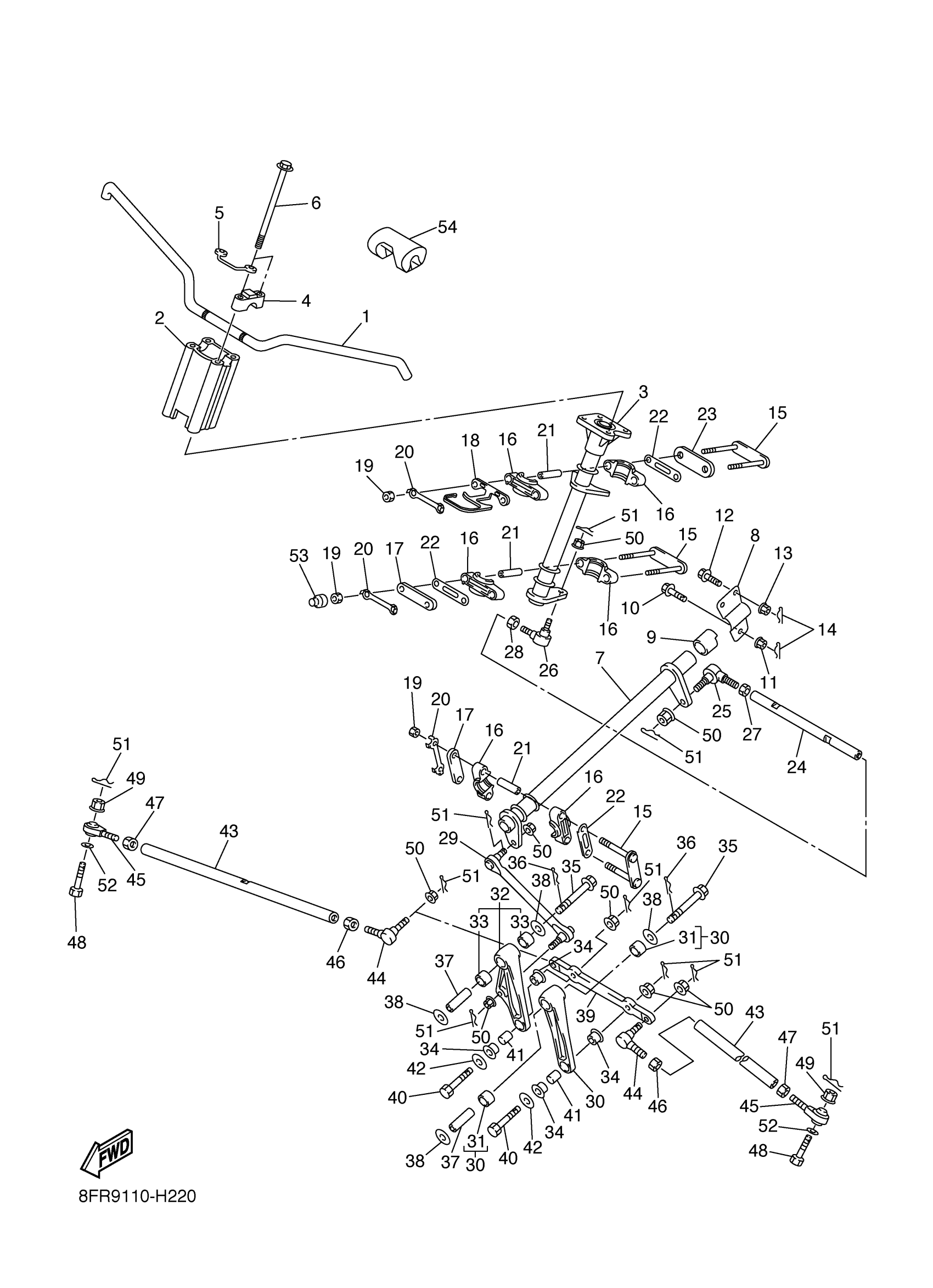

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GT-26111-00-00

$214.20

2

JOINT

8GT-2381B-00-00

$111.54

3

COLUMN, STEERING 2

8FP-23813-00-00

Unavailable

4

HOLDER, HANDLE UPPER

3SP-23441-00-00

$22.03

5

HOLDER

8FP-23857-00-00

Unavailable

6

BOLT

8GT-23876-00-00

$9.09

7

COLUMN, STEERING

8FA-23811-00-00

$84.42

8

COVER, STEERING

8FA-23818-02-00

$8.58

9

BEARING, STEERING UPPER

8FA-23873-01-00

$5.35

10

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

11

NUT, S/L FLANGE

95602-10200-00

$2.29

12

BOLT, WASHER BASED(JA1)

90105-08552-00

$3.78

13

NUT, SELF-LOCKING

95602-08200-00

$2.77

14

CLIP 136253750000

90468-12006-00

$5.10

15

HOLDER, BEARING

8FA-23872-00-00

$13.14

16

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

17

HOLDER 2

8FA-23867-00-00

$2.49

18

HOLDER, BEARING

8FP-23872-00-00

$17.31

19

NUT(6L2)

95333-08600-00

$3.20

20

WASHER, LOCK 1

1UY-23894-01-00

$6.86

21

COLLAR

90387-09006-00

$5.43

22

WASHER, PLAIN

8FA-23843-00-00

$3.25

23

WASHER, PLAIN

8FP-23843-00-00

$21.54

24

ROD, STEERING

8FA-23828-00-00

$15.38

25

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

26

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

27

NUT (3WP1)

95317-10700-00

$6.17

28

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

29

ROD, STEERING RELAY

8FA-23821-00-00

$148.11

30

ARM PIVOT ASSY

8FG-2389K-00-00

$117.60

31

BUSH, FORMED

90383-17001-00

$9.38

32

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

$136.83

33

BEARING

93317-41785-00

$39.23

34

BUSH, SOLID

90381-14001-00

$3.58

35

BOLT, FLANGE

90105-12017-00

$12.82

36

CLIP, RING

8FA-2384N-00-00

$3.45

37

COLLAR

8FA-2412G-00-00

$10.26

38

WASHER, PLATE

90201-121U3-00

$5.45

39

ARM, IDLER

8FU-23826-00-00

$78.48

40

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

41

COLLAR

90387-10070-00

$25.31

42

WASHER PLATE (3L6)

90201-10742-00

$6.80

43

ROD, TIE

8ES-23831-00-00

$45.66

44

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

45

JOINT, UNIVERSAL 3

8FA-23847-00-00

$64.14

46

NUT (3WP1)

95317-10700-00

$6.17

47

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

48

BOLT, PIN HOLE (8M6)

90102-10044-00

$12.18

49

NUT, NYLON

95707-10300-00

$6.68

50

NUT, FLANGE(3BM)

95704-10500-00

$1.71

51

PIN, COTTER

91490-20025-00

$1.31

52

WASHER PLATE (3L6)

90201-08759-00

$2.52

53

CAP 2

35R-25335-00-00

$3.62

54

PAD, STEERING

8FR-23815-00-00

$138.89
