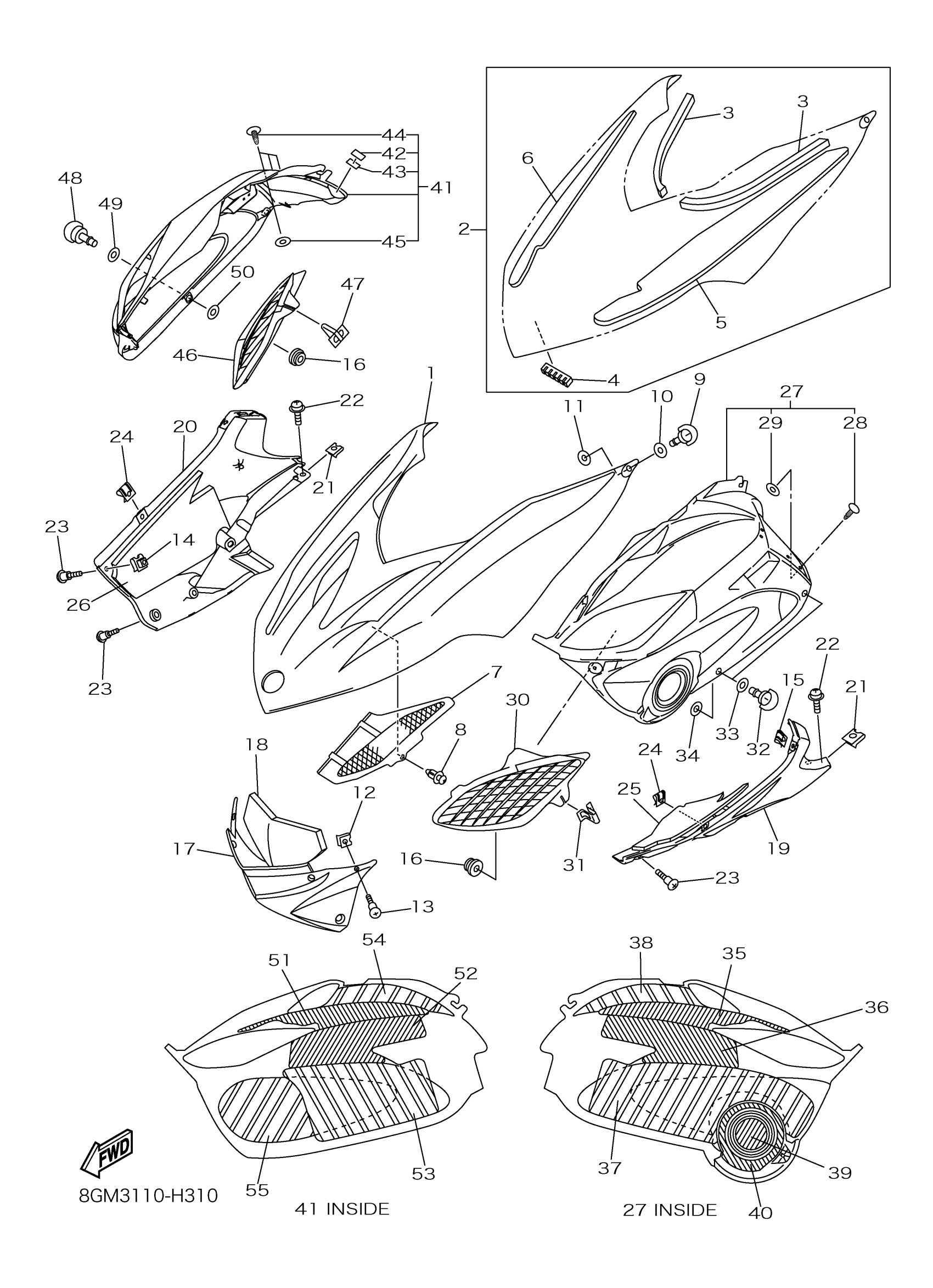

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 SHROUD Diagram

#

Description
Price

1

SHROUD

8FP-77111-01-33

$287.34

2

LINING SET

8FP-W7726-00-00

$18.82

3

TRIM 1

8FP-77165-00-00

$3.89

4

GUIDE 1

8FP-77123-00-00

$1.76

5

DAMPER, NOISE 11

8FP-77271-00-00

$4.89

6

DAMPER, NOISE 11

8FP-77271-10-00

$4.91

7

LOUVER 3

8FP-77133-00-00

Unavailable

8

RIVET

90269-06081-00

$5.42

9

HEAD

3FV-28386-00-00

$33.97

10

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

11

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.12

12

NUT, SPRING(4ES)

90183-06069-00

$5.81

13

SCREW, BINDING

90154-06009-00

$2.86

14

NUT, SPRING

90183-06100-00

$7.51

15

PLATE, SPRING

4XV-2177L-01-00

$5.91

16

GROMMET

90480-13019-00

Unavailable

17

PANEL, SUB FRAME 1

8FA-21912-00-00

Unavailable

18

DAMPER 1

8FP-77198-00-00

Unavailable

19

HOOD 1

8GM-21982-00-00

Unavailable

20

HOOD 2

8FP-21983-00-00

Unavailable

21

NUT, SPRING(4ES)

90183-06069-00

$5.81

22

SCREW, WITH WASHER

90159-06011-00

Unavailable

23

SCREW, BINDING

90154-06009-00

$2.86

24

PLATE, SPRING

4XV-2177L-01-00

$5.91

25

DAMPER, NOISE 18

8GM-77278-00-00

Unavailable

26

DAMPER, NOISE 19

8FP-77279-00-00

Unavailable

27

HOOD ASSY 3

8GM-2197A-02-00

Unavailable

28

. RIVET

90269-07064-00

$1.49

29

WASHER, PLATE

90202-07002-00

Unavailable

30

LOUVER 5

8FP-77109-00-00

Unavailable

31

CLIP

90468-06001-00

Unavailable

32

HEAD

3FV-28386-00-00

$33.97

33

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

34

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.12

35

DAMPER, NOISE 12

8FP-77272-00-00

Unavailable

36

DAMPER, NOISE 13

8FP-77273-00-00

Unavailable

37

DAMPER, NOISE 14

8GM-77274-00-00

Unavailable

38

DAMPER, SHROUD

8FP-77196-00-00

Unavailable

39

DAMPER, NOISE 11

8GM-77271-00-00

Unavailable

40

DAMPER, NOISE 12

8GM-77272-00-00

Unavailable

41

HOOD ASSY 4

8FR-2198A-03-00

Unavailable

42

TAPE 2

8FR-7717F-00-00

Unavailable

43

PAD 1

8FR-77151-00-00

Unavailable

44

. RIVET

90269-07064-00

$1.49

45

WASHER, PLATE

90202-07002-00

Unavailable

46

LOUVER 6

8FP-77108-00-00

Unavailable

47

CLIP

90468-06001-00

Unavailable

48

HEAD

3FV-28386-00-00

$33.97

49

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

50

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.12

51

DAMPER, NOISE 15

8FP-77275-00-00

Unavailable

52

DAMPER, NOISE 16

8FP-77276-01-00

Unavailable

53

DAMPER, NOISE 17

8FP-77277-01-00

Unavailable

54

DAMPER, SHROUD

8FP-77196-10-00

Unavailable

55

DAMPER

8FP-78316-10-00

Unavailable
