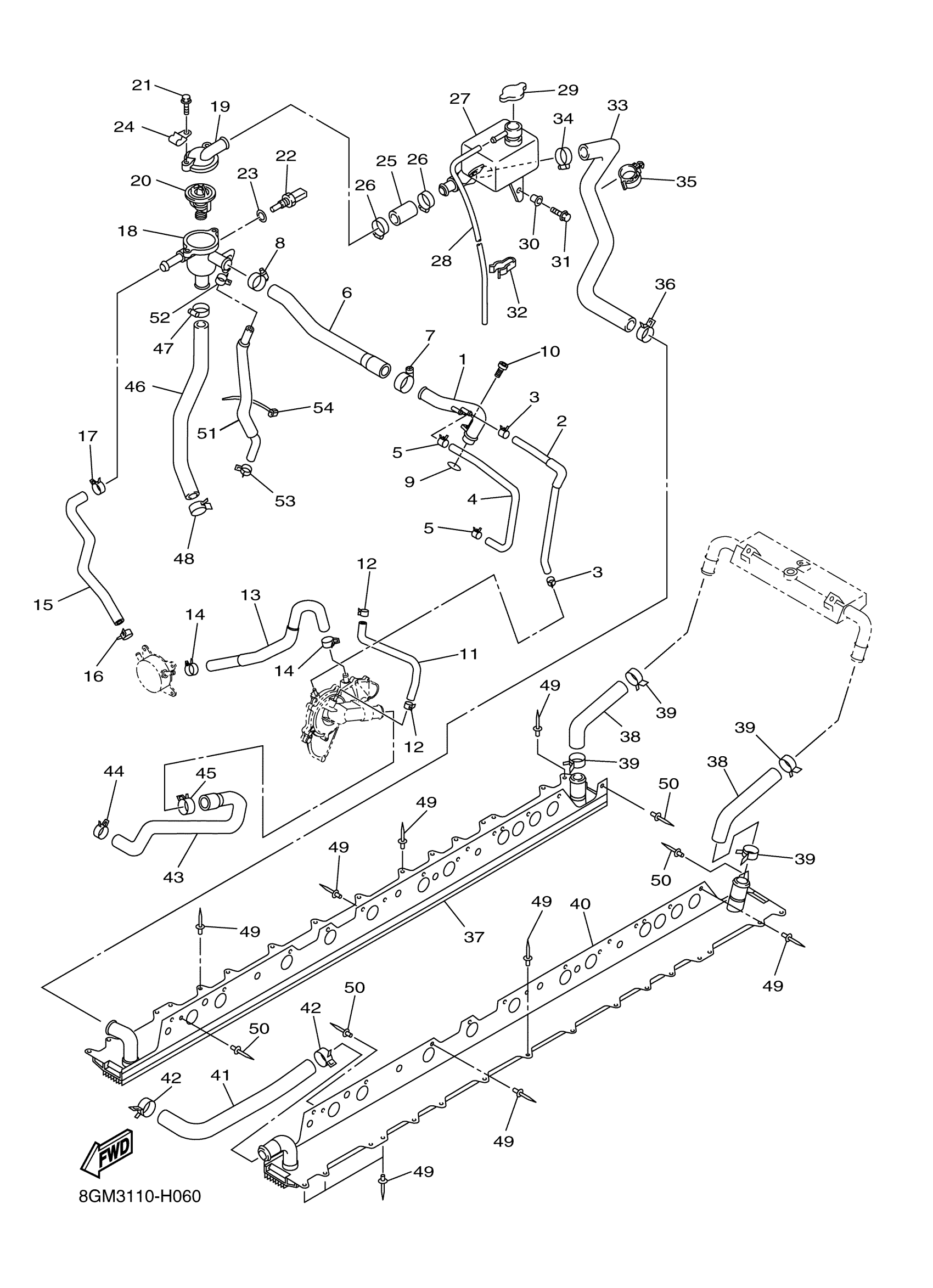

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8ES-12482-00-00

$70.75

2

PIPE 5

8ES-12485-01-00

$10.54

3

CLIP(3BM)

90467-10135-00

$6.91

4

HOSE 2

8ES-12577-00-00

$8.62

5

CLIP(3BM)

90467-10135-00

$6.91

6

HOSE 2

8ES-1243E-00-00

$14.69

7

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

8

HOSE CLAMP ASSY

90450-35001-00

$5.25

9

O-RING

93210-26006-00

$6.68

10

BOLT(3MA)

91312-06016-00

$4.89

11

HOSE 3

8ES-12578-00-00

$7.25

12

CLIP

90467-110A2-00

$6.69

13

HOSE 5

8ES-12588-00-00

$19.74

14

CLIP(3TB)

90467-17128-00

$6.68

15

HOSE 6

8GM-12589-00-00

$14.55

16

CLIP(3TB)

90467-17128-00

$6.68

17

CLIP(3TB)

90467-17128-00

$6.68

18

HOUSING, THERMOSTA

8FA-W1258-02-00

$47.22

19

COVER, THERMOSTAT

5EB-12413-00-00

$76.31

20

THERMOSTAT ASSY

8FA-12410-00-00

$82.78

21

BOLT, FLANGE

95022-06020-00

$3.32

22

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

23

WASHER, PLATE

90201-12790-00

$6.85

24

. CLAMP

90465-06M28-00

$4.90

25

HOSE,3

8FA-1243F-00-00

$4.17

26

HOSE CLAMP ASSY

90450-35001-00

$5.25

27

TANK, RESERVE

8FA-1249B-02-00

Unavailable

28

HOSE (L600)

90445-083J5-00

$5.69

29

CAP, RADIATOR

4FL-12462-00-00

$55.82

30

COLLAR (838-84757-00)

90387-06024-00

$9.09

31

BOLT, FLANGE

95817-06020-00

$2.69

32

CLAMP(53Y)

90464-15065-00

$5.72

33

HOSE, 4

8FA-1244G-01-00

$63.02

34

HOSE CLAMP ASSY

90450-35001-00

$5.25

35

CLAMP

90464-32002-00

$2.38

36

CLIP (8M6)

90467-28046-00

$12.43

37

HEAT EXCHANGER

8FJ-1240F-01-00

$246.95

38

PIPE 6

8FA-12476-00-00

$21.62

39

CLIP (8M6)

90467-28046-00

$12.43

40

HEAT EXCHANGER

8FJ-1240E-01-00

Unavailable

41

PIPE 7

8FA-12477-00-00

$37.35

42

CLIP (8M6)

90467-28046-00

$12.43

43

PIPE 8

8ES-1248A-00-00

$43.25

44

CLIP (8M6)

90467-28046-00

$12.43

45

CLIP

90467-310A0-00

$4.20

46

PIPE 9

8HF-1248E-00-00

$41.62

47

HOSE CLAMP ASSY

90450-35001-00

$5.25

48

CLIP (8M6)

90467-28046-00

$12.43

49

RIVET, BLIND

90267-47195-00

$3.33

50

RIVET, BLIND

90267-47197-00

$1.56

51

HOSE 4

8FA-12579-00-00

$16.82

52

CLIP(3BM)

90467-10135-00

$6.91

53

CLIP (7K7)

90467-11044-00

$5.10

54

CLAMP(4FM)

90464-15195-00

$2.77
