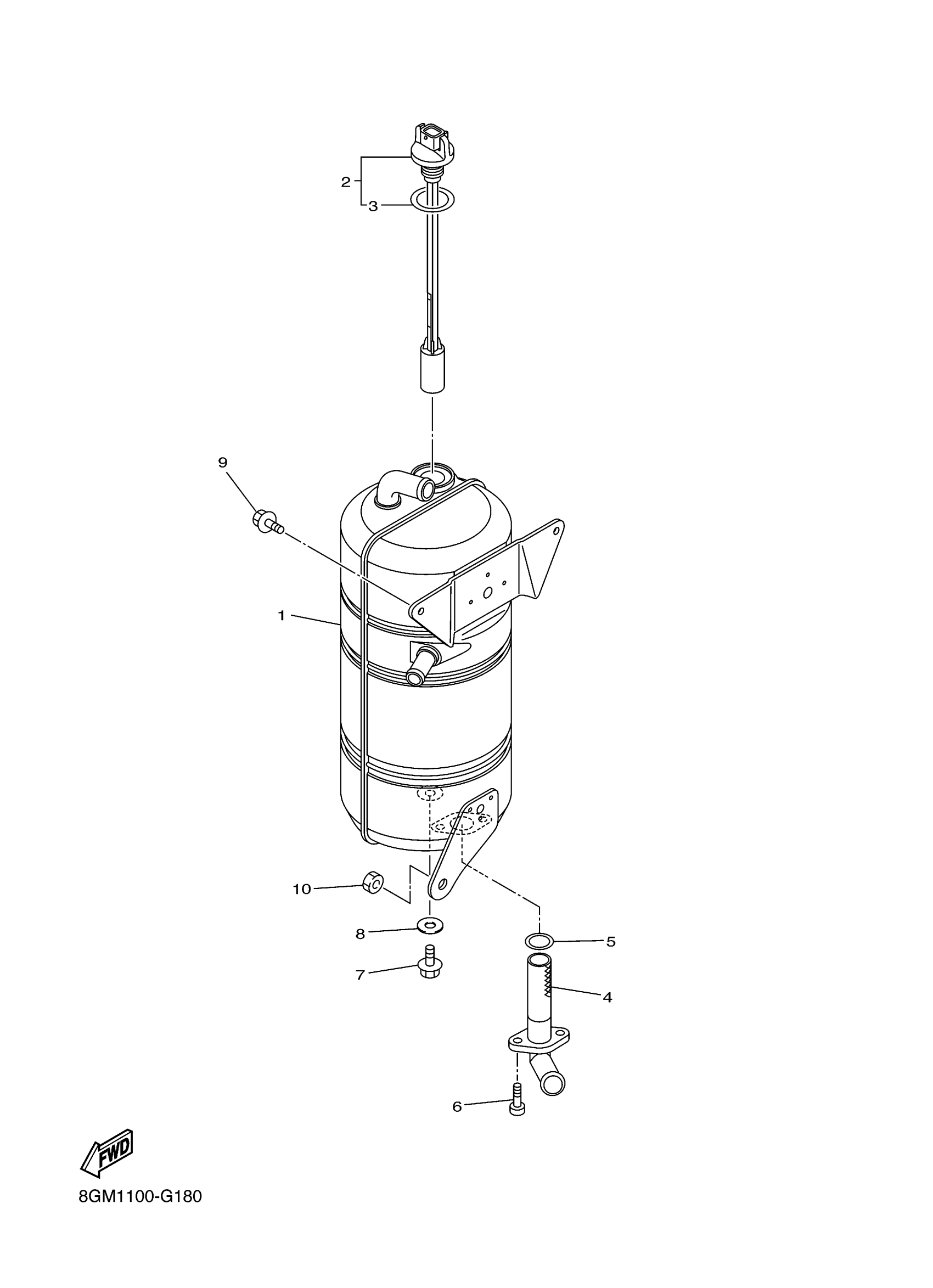

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8GM-21751-00-00

Unavailable

2

OIL LEVEL GAUGE ASSY

8GC-85720-00-00

$39.42

3

O-RING

8FP-85075-00-00

$8.12

4

OIL PIPE COMP. 2

8FG-13406-00-00

Unavailable

5

O-RING (603)

93210-19026-00

$6.35

6

BOLT(3MA)

91312-06016-00

$4.82

7

BOLT, FLANGE

95817-08012-00

$3.78

8

GASKET(3AJ)

90430-08204-00

$6.48

9

BOLT, FLANGE

95817-06016-00

$1.49

10

NUT, SELF-LOCKING

95602-08200-00

$2.73
