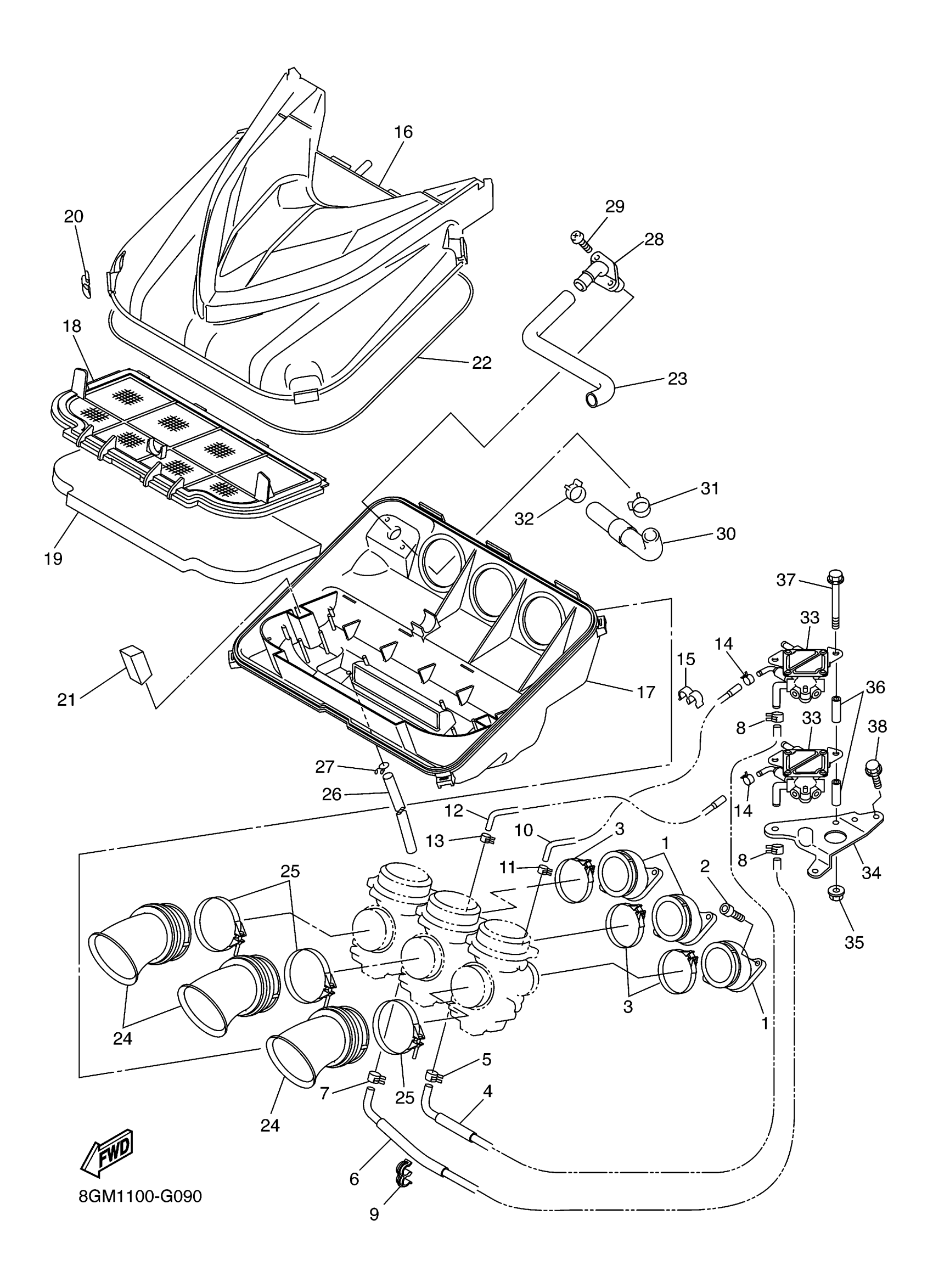

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

8ES-13586-10-00

$74.34

2

BOLT,SOCKET HEAD

91314-06020-00

$2.05

3

HOSE CLAMP ASSY

90450-57016-00

$18.54

4

HOSE

8GM-14294-00-00

Unavailable

5

CLIP

90467-11028-00

$5.14

6

PIPE

8GM-14298-00-00

$50.37

7

CLIP

90467-11028-00

$5.14

8

CLIP

90467-11028-00

$5.14

9

CLAMP(4HM)

90464-13194-00

$1.46

10

HOSE, AIR

8GM-13895-10-00

Unavailable

11

CLIP(41W)

90467-08092-00

$6.86

12

HOSE, AIR 2

8GM-13892-10-00

$18.62

13

CLIP(41W)

90467-08092-00

$6.86

14

CLIP

90467-090A3-00

$2.91

15

CLAMP

90464-07006-00

$5.31

16

SILENCER, INTAKE 1

8GM-14431-00-00

$48.28

17

SILENCER, INTAKE 2

8GM-14441-00-00

$60.63

18

PLATE, ELEMENT

8GM-14472-00-00

$26.25

19

ELEMENT, AIR CLEANER

8ES-14451-00-00

$26.92

20

HOOK

8FA-14436-00-00

$5.08

21

DAMPER 1

8ES-14425-00-00

$7.49

22

SEAL

8GM-14452-00-00

Unavailable

23

PIPE

8GM-14419-00-00

$31.02

24

JOINT, AIR CLEANER 1

8ES-14453-00-00

$18.63

25

HOSE CLAMP ASSY

90450-67003-00

$11.38

26

HOSE (L198)

90445-11293-00

$6.97

27

CLIP

90467-100A1-00

$6.38

28

PIPE, JOINT

8GC-14485-00-00

$4.77

29

SCREW, TRUSS TAP.

97707-50025-00

$6.18

30

PIPE, OIL TANK BREATHER

8GM-21745-00-00

$32.32

31

CLIP

90467-22002-00

$4.15

32

CLIP(34X)

90467-22097-00

$7.14

33

FUEL PUMP ASSY

8GM-13910-00-00

$135.06

34

BRACKET, FUEL PUMP

8GM-24491-00-00

$30.11

35

NUT, FLANGE

95702-06500-00

$1.98

36

COLLAR (878)

90387-08262-00

$9.02

37

BOLT, FLANGE

95022-06085-00

$2.95

38

BOLT, FLANGE

95817-06016-00

$1.49
