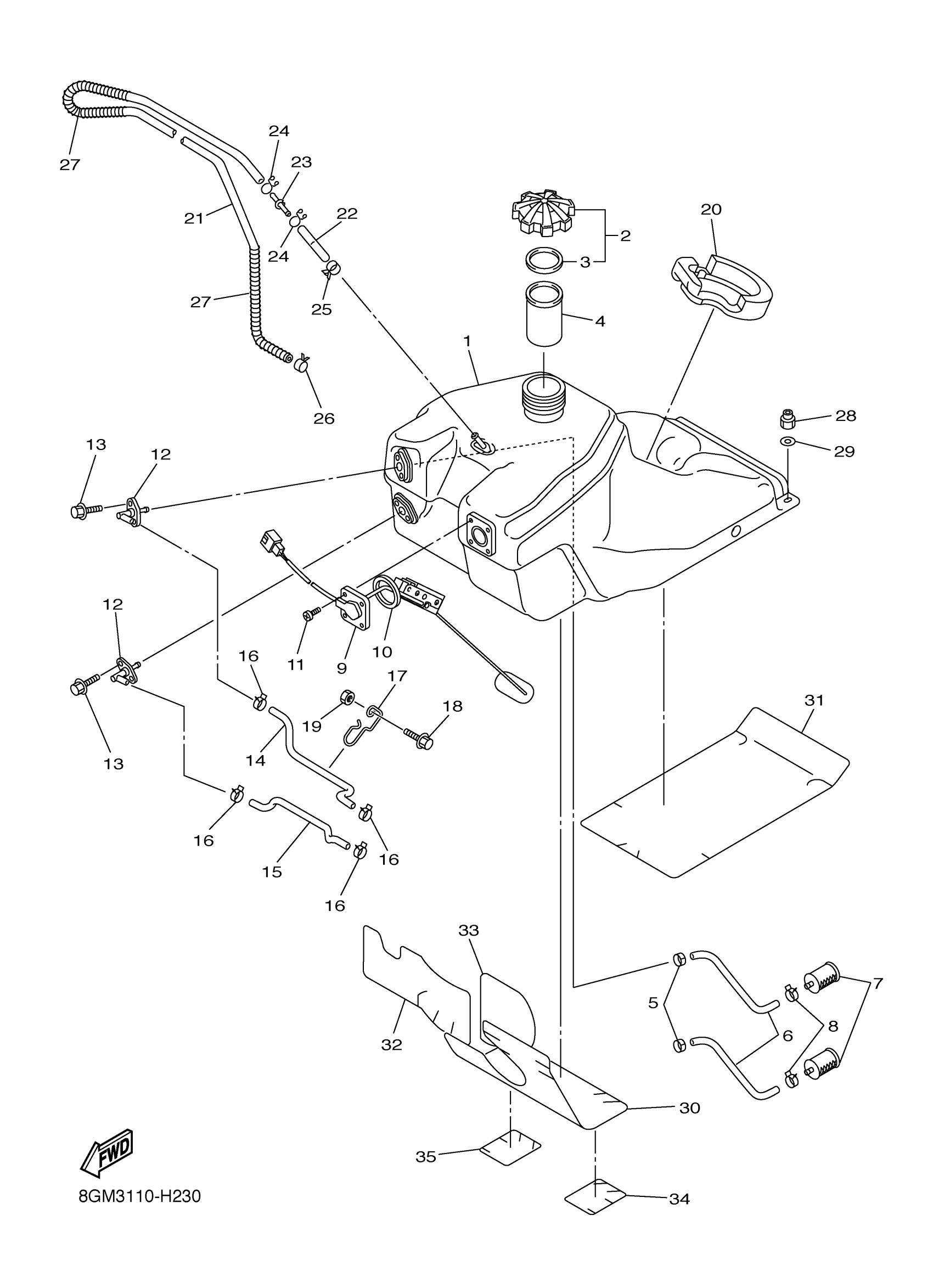

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8GM-24111-00-00

$1,018.99

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FP-24114-00-00

$4.98

5

CLIP

90468-04092-00

$2.54

6

PIPE, SUCTION 1

8FA-24335-01-00

Unavailable

7

FILTER ASSY

8H5-24560-00-00

$11.47

8

CLIP (7K7)

90467-11044-00

$5.10

9

SENDER UNIT ASSY, FUEL METER

8HF-85752-00-00

$58.25

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

SUCTION PIPE COMP. 1

8CR-24301-01-00

$55.60

13

BOLT, FLANGE

95817-06016-00

$1.49

14

PIPE, FUEL 1

8GM-24311-00-00

$39.05

15

PIPE, FUEL 1

8GM-24311-10-00

$34.55

16

CLIP (7K7)

90467-11044-00

$5.10

17

HOLDER

8GM-2419A-00-00

$14.20

18

BOLT, FLANGE

95817-06016-00

$1.49

19

NUT, U FLANGE

95604-06200-00

$2.35

20

DAMPER, LOCATING 1

8FP-24181-01-00

Unavailable

21

TUBE, FLEXIBLE VINYL

91A20-05110-00

Unavailable

22

PIPE, JOINT

8FR-24461-00-00

$3.11

23

PIPE, JOINT

8H8-24376-00-00

$4.29

24

CLIP (8L2)

90467-08017-00

$7.51

25

CLIP (8A1)

90467-09026-00

$2.72

26

CLIP (8A1)

90467-09026-00

$2.72

27

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

28

NUT, NYLON

95717-08300-00

$2.57

29

WASHER, PLATE

90201-08053-00

$5.63

30

PROTECTOR, FUEL TANK

8FP-24141-00-00

$66.35

31

PROTECTOR, FUEL TANK

8FA-24141-10-00

$58.80

32

INSULATOR, FUEL TANK 1

8FP-2416F-00-00

Unavailable

33

INSULATOR, FUEL TANK 1

8FP-2416F-10-00

$14.42

34

INSULATOR, FUEL TANK 1

8HF-2416F-00-00

$4.20

35

INSULATOR, FUEL TANK 2

8HF-2416G-00-00

$4.23
