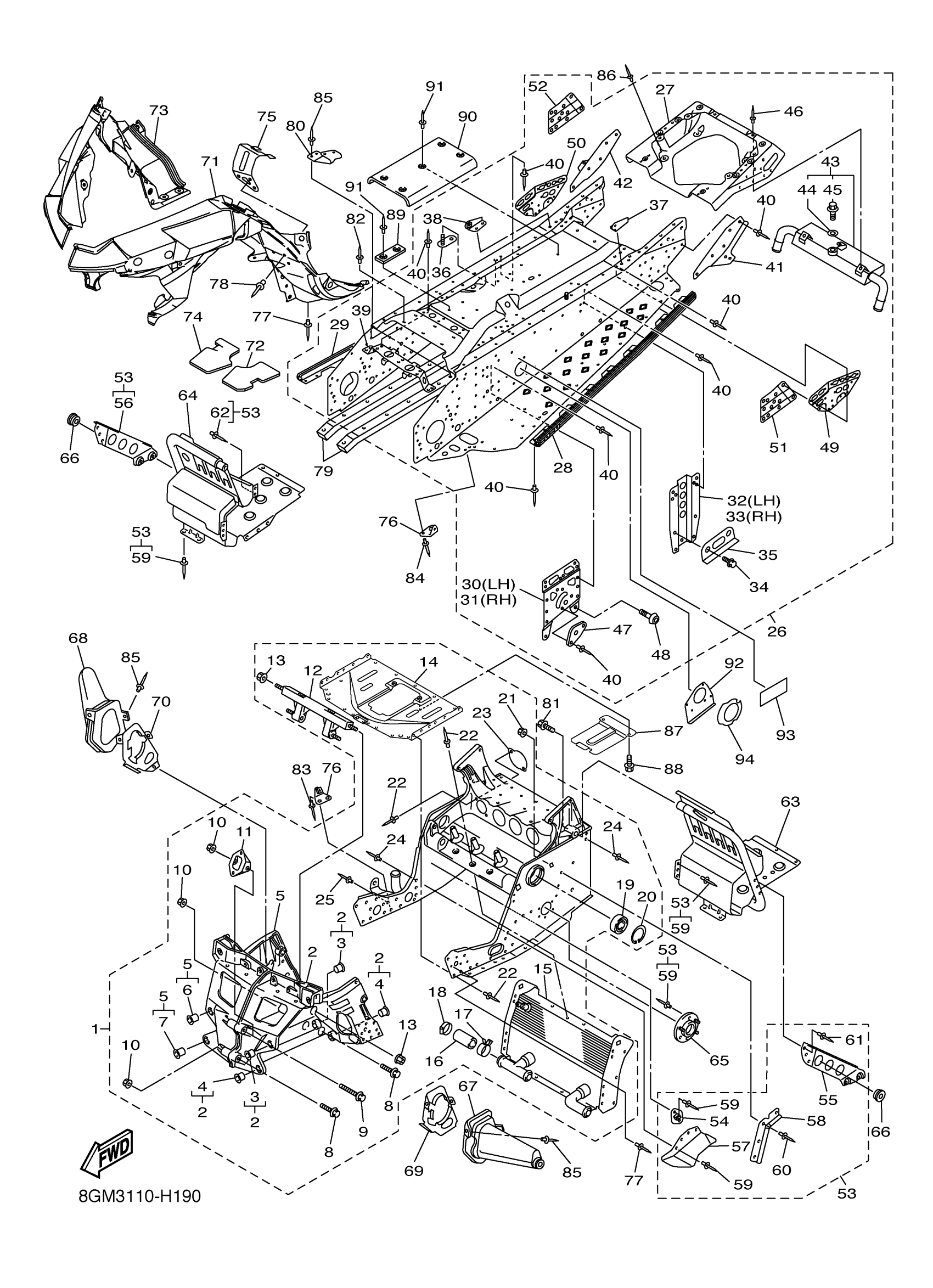

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GM-21940-10-00

Unavailable

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

PROTECTOR

8FR-2193A-01-00

$93.12

15

HEAT EXCHANGER ASSY

8FA-12440-00-00

Unavailable

16

HOSE 7

8FA-12551-00-00

$7.51

17

CLIP (8M6)

90467-28046-00

$12.43

18

HOSE CLAMP ASSY

90450-35001-00

$5.25

19

BEARING

93306-20650-00

$61.77

20

CIRCLIP(MF1)

99009-62500-00

$6.23

21

NUT, SELF-LOCKING

90185-08169-00

$7.09

22

RIVET, BLIND

90267-47195-00

$3.33

23

PLATE, COVER

8ES-2131D-00-00

$4.26

24

RIVET, BLIND

90267-48016-00

$7.85

25

RIVET, BLIND

90267-48177-00

$1.71

26

REAR FRAME COMP.

8GM-21950-00-00

$2,084.99

26

REAR FRAME COMP.

8HC-21950-00-00

$1,991.99

27

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

28

REINFORCEMENT, FOOTREST 1

8FG-21926-00-00

$130.40

28

REINFORCEMENT, FOOTREST 1

8FU-21926-00-00

$206.40

29

REINFORCEMENT, FOOTREST 2

8FG-21936-00-00

$130.40

29

REINFORCEMENT, FOOTREST 2

8FU-21936-00-00

$206.40

30

. BRACKET, MAIN TRACK 1

8FU-21943-00-00

Unavailable

31

BRACKET, MAIN TRACK 2

8FU-21953-00-00

Unavailable

32

BRACKET, RR.TRACK SUSPENTION 1

8FP-21944-00-00

Unavailable

33

BRACKET, RR.TRACK SUSPENTION 2

8FP-21954-00-00

$30.85

34

BOLT, FLANGE

95814-10020-00

$3.78

35

PATCH 8

8FU-21988-01-00

$8.00

36

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

37

BRACKET 1

8FA-2194X-00-00

$3.54

38

BRACKET 2

8FA-2195X-00-00

$3.54

39

PROTECTOR, MUFFLER

8ES-2194H-00-00

$58.18

40

RIVET, BLIND

90267-47195-00

$3.33

41

PATCH 3

8FU-21963-00-00

$17.97

42

PATCH 4

8FU-21964-00-00

Unavailable

43

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

$274.97

44

WASHER, SEAL (7G5)

90210-06006-00

$5.72

45

BOLT, FLANGE

95817-06016-00

$1.49

46

RIVET, BLIND(3JB)

90267-48095-00

$2.00

47

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

48

BOLT, BUTTON

92014-10020-00

$3.55

49

REINF., SUB FRAME 1

8FP-21928-00-00

$28.58

50

REINFORCEMENT, SUB FRAME 2

8FP-21938-00-00

Unavailable

51

REINFORCEMENT, FRAME REAR 3

8FJ-21924-00-00

Unavailable

52

REINFORCEMENT, FRAME REAR 4

8FJ-21934-00-00

$15.32

53

FRAME CONNECTION KIT

8FP-W2195-11-00

Unavailable

54

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

55

BRACKET, 5

8FP-2196M-01-00

$25.69

56

BRACKET, 6

8FP-2197M-01-00

$25.69

57

COVER 2

8FP-2198G-01-00

$20.57

58

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

59

RIVET, BLIND

90267-47195-00

$3.33

60

RIVET, BLIND

90267-48018-00

$7.35

61

RIVET, BLIND

90267-48177-00

$1.71

62

RIVET, BLIND(8CR)

90267-47186-00

$2.31

63

FOOTREST COMP. 1

8FP-21960-01-00

$215.92

64

FOOTREST COMP. 2

8GM-21970-00-00

$196.78

65

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

66

GROMMET(4FU)

90480-13567-00

$3.88

67

COVER 1

8FU-2198F-01-00

$27.20

68

COVER 3

8FU-2198J-01-00

$27.20

69

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

70

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

71

FRAME UNDER 1

8GM-2196A-01-00

$191.77

72

DAMPER 2

8GM-77374-00-00

$6.49

73

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

74

DAMPER 3

8FP-77375-00-00

$6.55

75

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

76

BRACKET 3

8FA-2196F-00-00

$5.58

77

RIVET, BLIND

90267-48018-00

$7.35

78

RIVET, BLIND

90267-47200-00

$2.28

79

PROTECTOR, FRAME

8FA-21978-01-00

$61.58

80

BRACKET 7

8FU-2197N-00-00

$18.03

81

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

82

RIVET, BLIND(8CR)

90267-47186-00

$2.31

83

RIVET, BLIND (22W)

90267-48083-00

$2.78

84

RIVET, BLIND(3JB)

90267-48095-00

$2.00

85

RIVET, BLIND

90267-47195-00

$3.33

86

RIVET, BLIND

90267-48177-00

$1.71

87

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

88

BOLT, BUTTON HEAD

92012-06012-00

$2.49

89

SPACER

8FA-21998-00-00

$3.60

90

SHIELD, HEAT

8FG-23892-00-00

$43.78

91

RIVET, BLIND (8L0)

90267-48059-00

$2.46

92

PATCH 2

8FR-21962-00-00

$44.03

93

PLATE, EPA OFFROAD 2

8GM-2179D-00-00

$4.02

94

GRAPHIC, 1

8FU-474AA-00-00

$24.58
