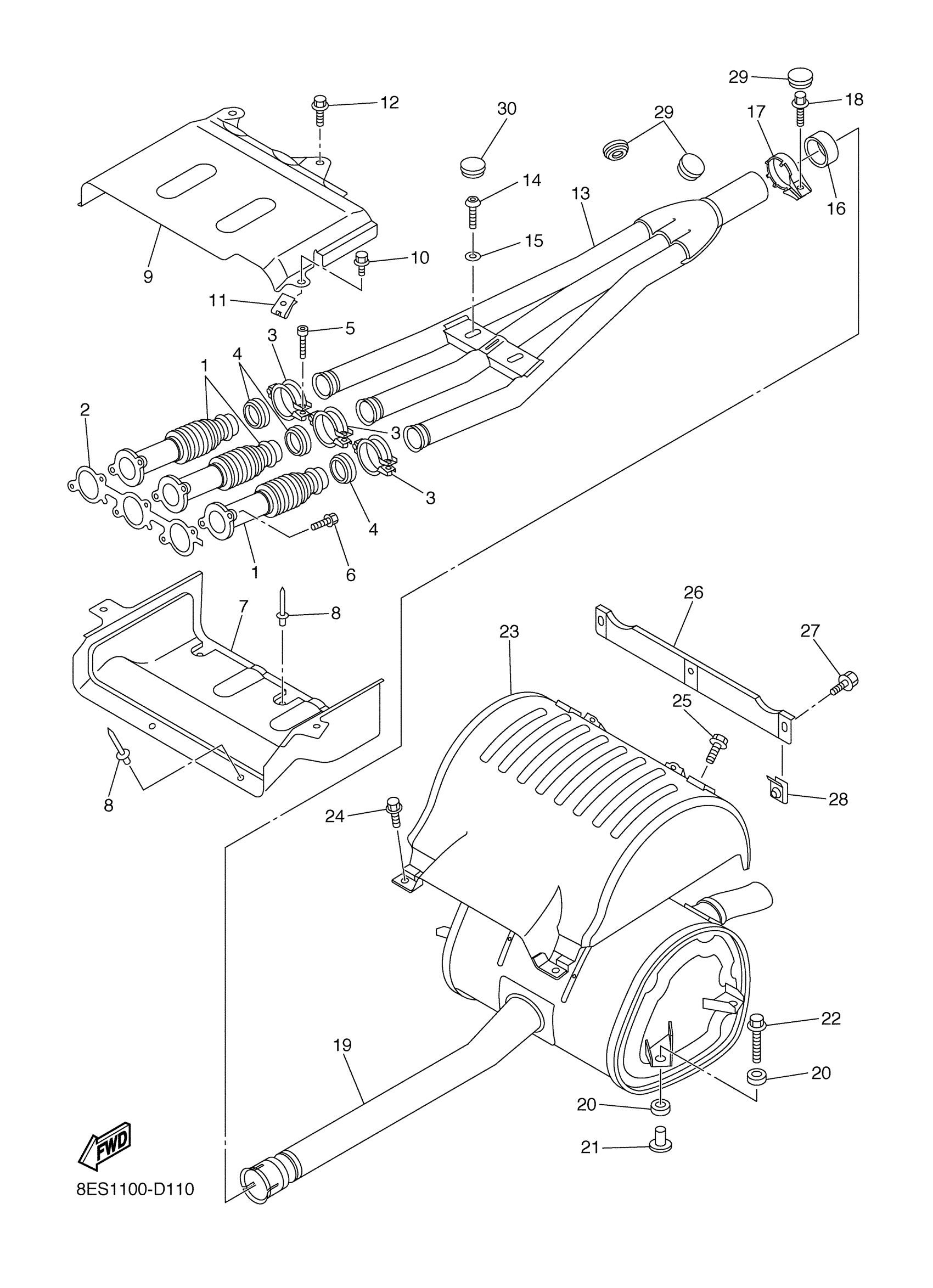

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8ES-14615-01-00

$185.66

2

GASKET, EXHAUST PIPE

8ES-14613-00-00

$20.89

3

BAND, MUFFLER

8FA-14715-00-00

$32.47

4

GASKET, EXHAUST PIPE

99999-03989-00

$26.83

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.82

6

BOLT, FLANGE

95022-08020-00

$6.78

7

COVER, EXHAUST

8ES-14627-00-00

$92.88

8

RIVET, BLIND

90267-47195-00

$3.33

9

EXHAUST COVER ASS'Y

8ES-14637-00-00

$108.17

10

BOLT, FLANGE

95812-06008-00

$5.62

11

NUT, SPRING

90183-060A0-00

$6.08

12

BOLT, FLANGE

95817-06016-00

$1.49

13

EXHAUST PIPE ASSY 1

8ES-14610-00-00

$348.32

14

BOLT, BUTTON HEAD

92012-08025-00

$5.75

15

WASHER, PLAIN

92990-08200-00

$2.56

16

GASKET, MUFFLER

8FA-14714-10-00

$34.71

17

BAND, SILENCER

8FA-14788-00-00

$20.11

18

BOLT, FLANGE

95812-08020-00

$1.69

19

SILENCER ASSY

8ES-14750-00-00

$917.99

20

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

21

COLLAR

90387-08071-00

$8.11

22

BOLT, WITH WASHER

90119-08112-00

$7.48

23

PROTECTOR ASSY

8ES-14708-02-00

$224.78

24

BOLT, WITH WASHER

90119-06179-00

$6.68

25

BOLT, FLANGE

95812-06008-00

$5.62

26

PLATE, 8

8ES-1478N-00-00

$10.78

27

BOLT, FLANGE

95812-06008-00

$5.62

28

NUT, SPRING

90183-060A0-00

$6.08

29

PLUG

90338-20004-00

$5.40

30

PLUG

90338-20007-00

$2.75
