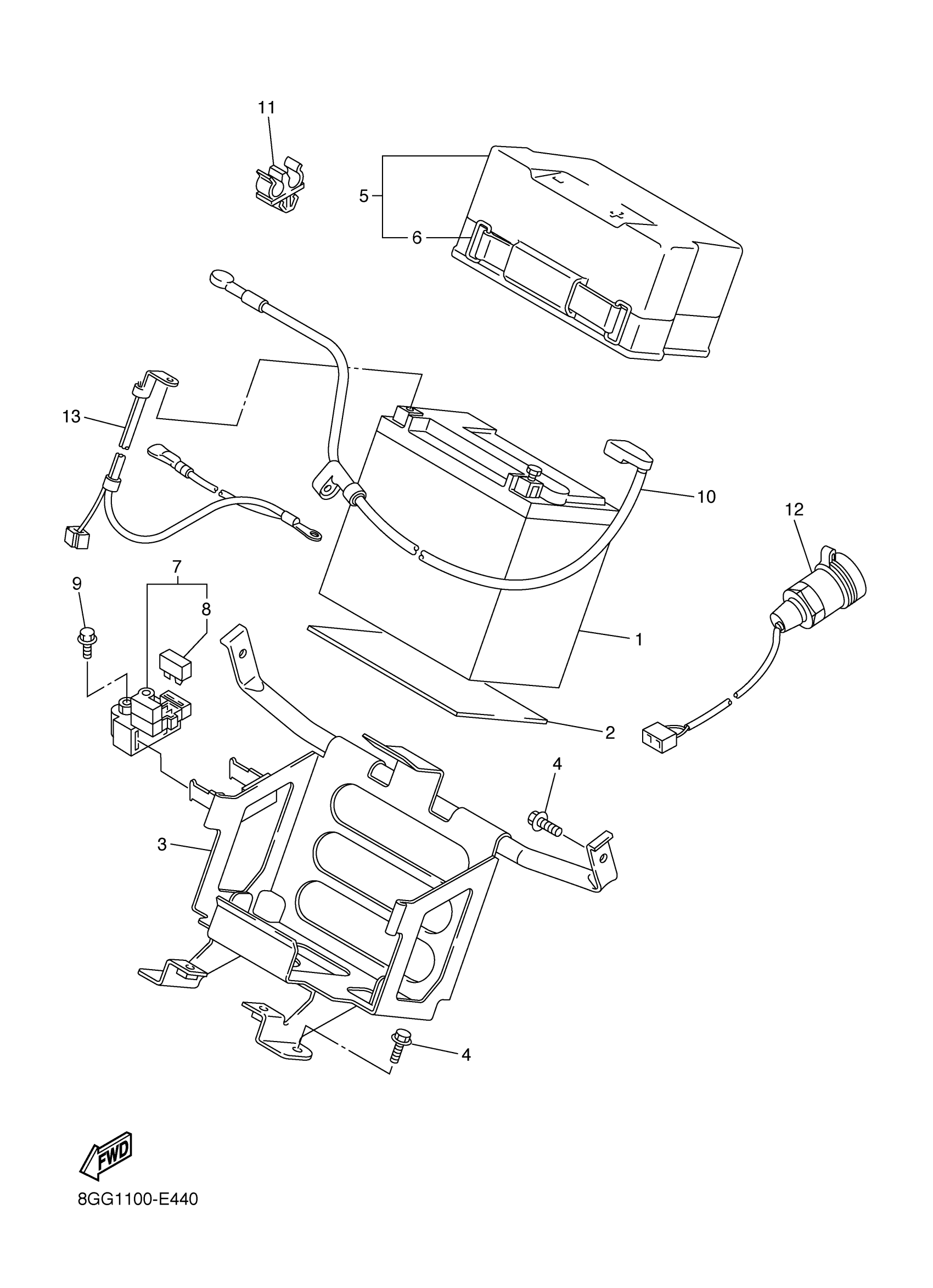

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 ELECTRICAL 2 Diagram

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

SEAT, BATTERY

8FA-82122-00-00

$6.11

BRACKET, BATTERY

8ES-2199G-00-00

$111.51

BOLT, FLANGE

95814-08016-00

$6.68

COVER, BATTERY

8FA-82129-00-00

$36.38

BAND, BATTERY

8DM-82131-10-00

$12.75

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$128.29

FUSE (12V 30A)

1AE-82151-00-00

$6.22

BOLT, FLANGE

95022-06008-00

$4.70

WIRE, PLUS LEAD

8FA-82115-01-00

Unavailable

CLAMP(87A)

90464-08126-00

$1.95

TERMINAL COMP.

8FP-8254B-00-00

$148.14

WIRE, MINUS LEAD

8GM-82116-00-00

Unavailable
