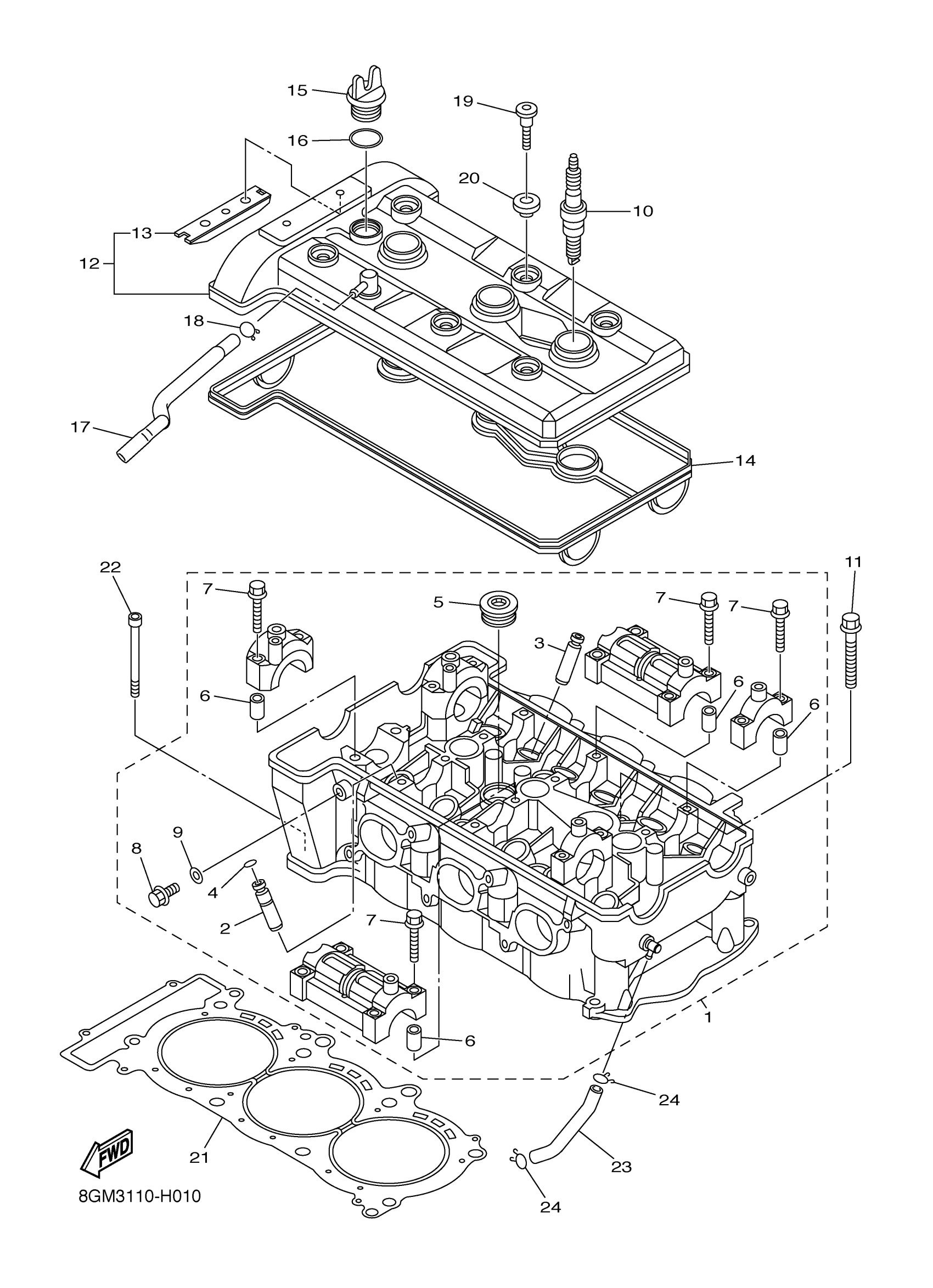

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

8ES-11101-02-00

$1,337.99

2

GUIDE, INTAKE VALVE

5JW-11133-10-00

$43.83

3

GUIDE, VALVE 2

3P6-11134-10-00

$41.24

4

CIRCLIP(1AA)

93440-09141-00

$1.66

5

PLUG, STRAIGHT SCREW

90340-27001-00

$17.68

6

PIN, DOWEL(3XW)

91808-16023-00

$5.48

7

. BOLT, FLANGE

90105-06026-00

Unavailable

8

BOLT, FLANGE

95022-08012-00

$9.51

9

GASKET

90430-08119-00

$4.70

10

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

11

BOLT, WITH WASHER

90119-10004-00

$7.91

12

COVER, CYLINDER HEAD 1

8GM-11191-00-00

$141.58

13

GUIDE, STOPPER 2

5BE-12241-01-00

$25.54

14

GASKET, HEAD COVER 1

8ES-11193-00-00

$50.72

15

PLUG, OIL

3Y1-15363-10-00

$17.02

16

O-RING (646)

93210-19123-00

$6.91

17

PIPE, BREATHER 1

8GM-11166-00-00

$17.54

18

CLIP

90467-100A1-00

$6.38

19

BOLT(4BP)

90109-066F0-00

$6.38

20

RUBBER, MOUNT 1

5EA-1111G-00-00

$17.97

21

GASKET, CYLINDER HEAD 1

8ES-11181-00-00

$64.37

22

BOLT, SOCKET

91317-06065-00

$3.26

23

PIPE, OIL 1

8ES-13416-00-00

$6.31

24

CLIP

90467-100A1-00

$6.38
