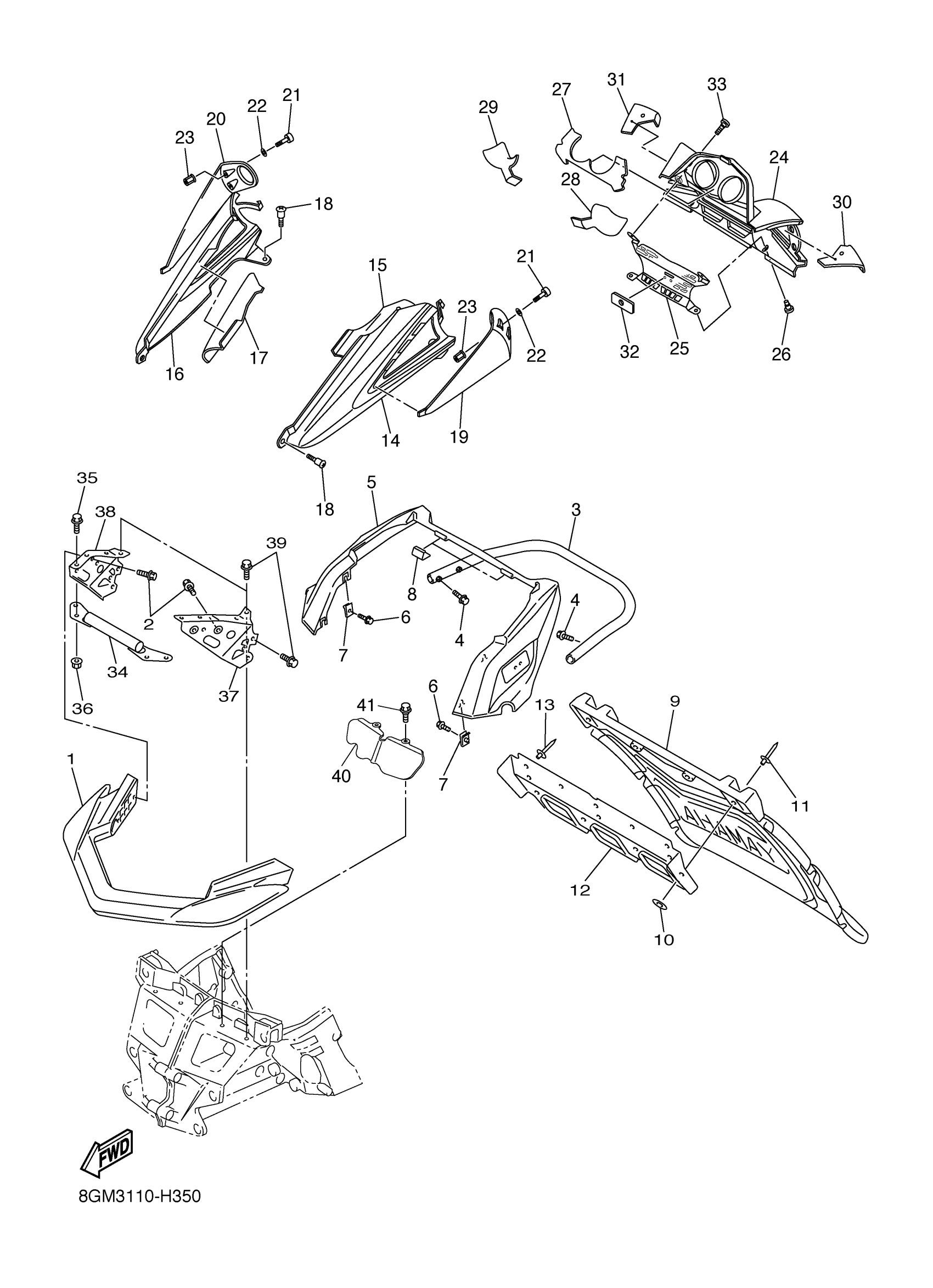

Yamaha RS90RYW (RS VECTOR_GT) 8GM3 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$237.55

2

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

3

BUMPER, REAR 1

8FA-77541-01-00

$70.22

4

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

5

BUMPER, REAR 2

8FA-77542-00-00

$98.49

6

BOLT, FLANGE

95817-06016-00

$1.49

7

NUT, SPRING(4ES)

90183-06069-00

$5.93

8

TAPE 4

8FA-7717H-00-00

$0.96

9

FLAP

8GT-K7595-00-00

Unavailable

10

WASHER, PLATE

90201-04027-00

$1.88

11

RIVET, BLIND

90267-47200-00

$2.28

12

STOPPER, FLAP

8GH-77596-01-00

$93.09

13

RIVET, BLIND(3JB)

90267-48095-00

$2.00

14

PROTECTOR 1

8ES-77551-00-00

$23.62

15

LINING, SHROUD 1

8ES-77261-01-00

$14.86

16

PROTECTOR 2

8ES-77552-00-00

$25.83

17

LINING, SHROUD 2

8ES-77262-01-00

$14.86

18

SCREW, BINDING

90154-06009-00

$2.92

19

PROTECTOR 4

8ES-77554-00-P3

Unavailable

20

PROTECTOR 5

8ES-77555-00-P3

Unavailable

21

BOLT,SOCKET HEAD

91314-06020-00

$2.05

22

WASHER, PLATE (680)

90201-06M07-00

$2.57

23

NUT(1WT)

90179-06520-00

$6.31

24

COVER, TAILLIGHT

8ES-84516-00-00

$43.03

25

PROTECTOR 3

8ES-77553-00-00

$37.02

26

RIVET, BLIND(8CH)

90267-47187-00

$1.84

27

LINING, SHROUD 3

8ES-77263-00-00

$19.11

28

LINING, SHROUD 4

8ES-77264-00-00

$9.22

29

LINING, SHROUD 5

8ES-77265-00-00

$9.22

30

LINING, SHROUD 6

8ES-77266-00-00

$8.31

31

LINING, SHROUD 7

8ES-77267-00-00

$8.31

32

LINING,SHROUD 8

8ES-77268-00-00

$2.62

33

BOLT

90109-06220-00

$7.43

34

BRKT. ,FR. FOOD

8FP-21979-00-00

$86.18

35

BOLT, FLANGE

95817-06014-00

$2.15

36

NUT, FLANGE

95702-06500-00

$1.98

37

BRACKET, FRONT

8FA-21949-00-00

$59.08

38

BRACKET, FRONT BUMPER

8FA-21959-00-00

$51.74

39

BOLT, FLANGE

95814-08016-00

$6.68

40

COVER, FRONT

8FP-22865-00-00

$29.00

41

BOLT

90109-06261-00

$1.88
