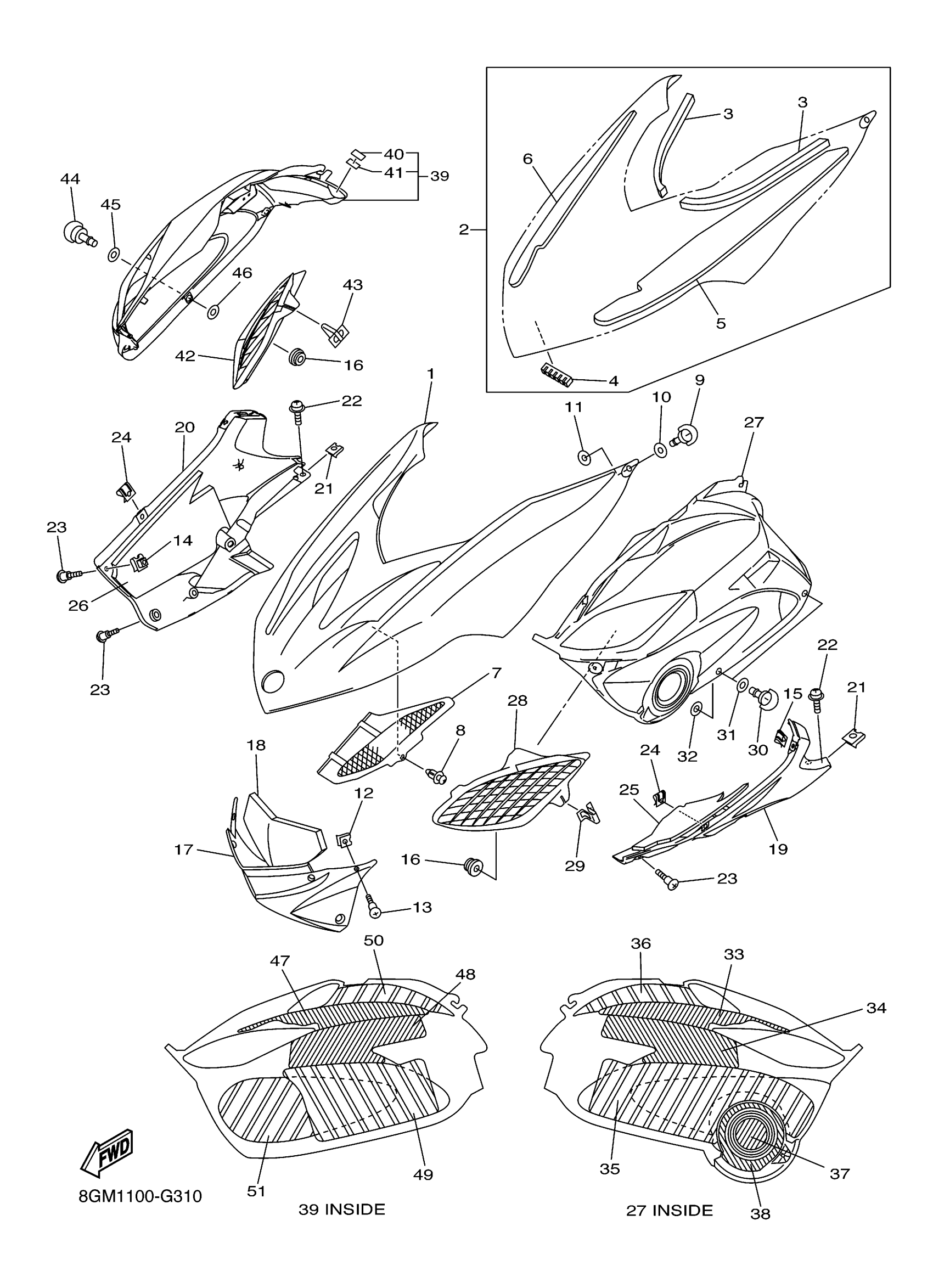

Yamaha RS90RXB (RS VECTOR) 8GM1 2008 SHROUD Diagram
#
1
SHROUD
8FP-77111-01-P0
Unavailable
7
LOUVER 3
8FP-77133-00-00
Unavailable
7
LOUVER 3
8FP-77133-10-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
14
NUT, SPRING
90183-06100-00
Unavailable
15
PLATE, SPRING
4XV-2177L-01-00
Unavailable
16
GROMMET
90480-13019-00
Unavailable
17
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
18
DAMPER 1
8FP-77198-00-00
Unavailable
19
HOOD 1
8GM-21982-00-00
Unavailable
20
HOOD 2
8FP-21983-00-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
SCREW, WITH WASHER
90159-06011-00
Unavailable
24
PLATE, SPRING
4XV-2177L-01-00
Unavailable
25
DAMPER, NOISE 18
8GM-77278-00-00
Unavailable
26
DAMPER, NOISE 19
8FP-77279-00-00
Unavailable
27
HOOD ASSY 3
8GM-2197A-02-00
Unavailable
28
LOUVER 5
8FP-77109-00-00
Unavailable
29
CLIP
90468-06001-00
Unavailable
33
DAMPER, NOISE 12
8FP-77272-00-00
Unavailable
34
DAMPER, NOISE 13
8FP-77273-00-00
Unavailable
35
DAMPER, NOISE 14
8GM-77274-00-00
Unavailable
36
DAMPER, SHROUD
8FP-77196-00-00
Unavailable
37
DAMPER, NOISE 11
8GM-77271-00-00
Unavailable
38
DAMPER, NOISE 12
8GM-77272-00-00
Unavailable
39
HOOD ASSY 4
8FR-2198A-03-00
Unavailable
40
TAPE 2
8FR-7717F-00-00
Unavailable
41
PAD 1
8FR-77151-00-00
Unavailable
42
LOUVER 6
8FP-77108-00-00
Unavailable
43
CLIP
90468-06001-00
Unavailable
47
DAMPER, NOISE 15
8FP-77275-00-00
Unavailable
48
DAMPER, NOISE 16
8FP-77276-01-00
Unavailable
49
DAMPER, NOISE 17
8FP-77277-01-00
Unavailable
50
DAMPER, SHROUD
8FP-77196-10-00
Unavailable
51
DAMPER
8FP-78316-10-00
Unavailable
